24583 - Murray 40" Snow Thrower, Tractor Mounted (2001) Snow Thrower Assembly Parts Diagram

40" Snow Thrower, Tractor Mounted

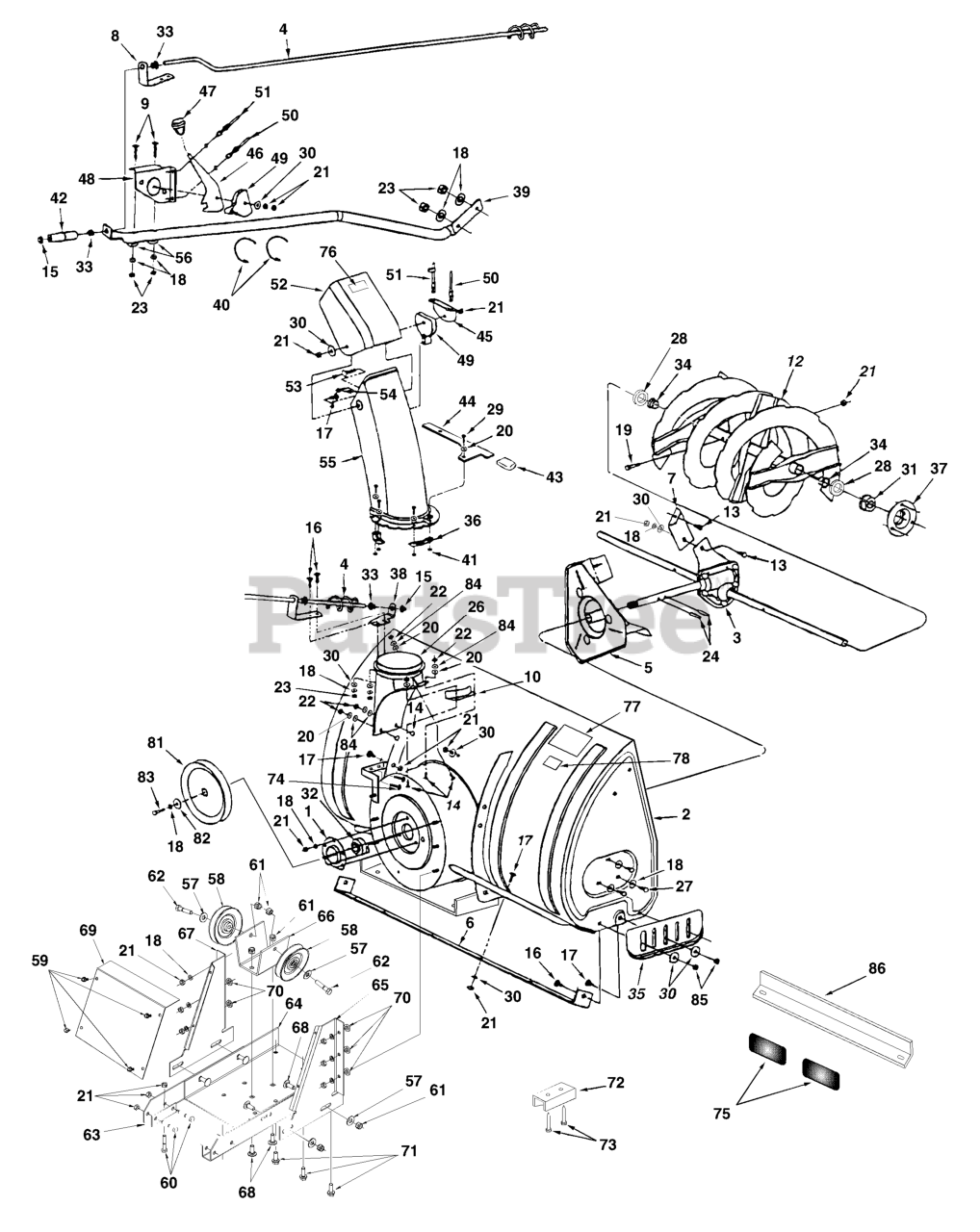

Snow Thrower Assembly Parts Diagram

  • Title

1

Murray 7101073

Bearing Housing

$

$

Currently unavailable

2

Murray 7101199

Housing Assembly
(Superseded to 7101199YP)

$6.99

$

In Stock, only 2 left!

0

3

Murray 7101157

Worm Drive Assembly

$

$

Currently unavailable

4

Murray 7101196

Chute Crank Rod Assembly

$

$

Currently unavailable

5

Murray 7101198

Impeller Assembly
(Superseded to 7101198YP)

$5.49

$

In Stock, only 2 left!

0

6

Murray 7101075

Plate, Scraper 40"

$27.99

$

Usually ships in 2-12 days

0

7

Murray 7101158

Bracket, Housing Brace

$

$

Currently unavailable

8

Murray 7101095

Bracket, Chute Crank

$

$

Currently unavailable

9

Murray 002X84

Carriage Bolt, 5/16-18 x 1-3/4"

$3.49

$

Usually ships in 2-12 days

0

10

Murray 7101166

Chute Reinforcement
(Superseded to 7101166YP)

$10.99

$

Usually ships in 2-12 days

0

11

Murray 7101206

Spiral Auger Assembly, LH
(Superseded to 7101206MA)

Note: (Not shown)

$137.99

$

Usually ships in 2-12 days

0

12

Murray 7101205

Spiral Auger Assembly, RH
(Superseded to 7101205YP)

$

$

Not available

13

Murray 001X91MA

Hex Bolt, 5/16-18 x 3/4"
(Superseded to 704287)

$3.99

$

In Stock, Qty 20+

0

14

Murray 002X98MA

Carriage Bolt, 1/4-20 x 3/4"
(Superseded to 703584)

$3.99

$

In Stock, Qty 10

0

15

Murray 7101133

Palnut, 3/8"

$

$

Currently unavailable

16

Murray 002X83

Carriage Bolt, 5/16-18 x 1"

$

$

Currently unavailable

17

Murray 002X64MA

Carriage Bolt, 5/16-18 x 3/4"
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

18

Murray 018X15MA

Lockwasher, 5/16"
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

19

Murray 7101160

Shear Bolt, 5/16-18 x 1-1/2"

$1.99

$

Usually ships in 2-12 days

0

20

Murray 017X37MA

Washer, 1/4" Std Wrt
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

21

Murray 015X88MA

Hex Lock Nut, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

22

Murray 015X89MA

Hex Lock Nut, 1/4-20

$4.49

$

Usually ships in 2-12 days

0

23

Murray 7101111

Hex Nut, 5/16-18
(Superseded to 7101111YP)

$15.99

$

Usually ships in 2-12 days

0

24

Murray 7101159

Spiral Pin, 1/4" Dia x 1-1/2"

$

$

Currently unavailable

26

Murray 7101165

Chute Adapter
(Superseded to 7101165YP)

$8.49

$

Usually ships in 2-12 days

0

27

Murray 26X249MA

Bolt, Self-tap 5/16-18 x 3/4"

$

$

Not available

28

Murray 17X115MA

Washer, Flat .76 x 1.49 x .06

$6.99

$

Usually ships in 2-12 days

0

29

Murray 001X76MA

Hex Bolt, 1/4-20 x 1"

$3.49

$

Usually ships in 2-12 days

0

30

Murray 017X44MA

Washer, 5/16" Std. Wrt.

$3.49

$

Usually ships in 2-12 days

0

31

Murray 7101149

Flange Bearing, .75" ID

$2.99

$

Usually ships in 2-12 days

0

32

Ball Bearing, .75" ID x 1.85" OD

$

$

Not available

33

Murray 7101175

Bushing, 3/8" Plastic

$2.49

$

Usually ships in 2-12 days

0

34

Murray 7101162

Split Bearing, 3/4"

$1.99

$

Usually ships in 2-12 days

0

35

Murray 7101076

Skid Shoe

$8.49

$

Usually ships in 2-12 days

0

36

Murray 7101187

Chute Keeper

$1.99

$

Usually ships in 2-12 days

0

37

Murray 7101163

Bearing Housing
(Superseded to 7101163YP)

$8.49

$

Usually ships in 2-12 days

0

38

Murray 7101077

Bracket, Chute Crank

$6.99

$

Usually ships in 2-12 days

0

39

Murray 7101195

Tube, Crank Rod Support
(Superseded to 7101195YP)

$87.99

$

Usually ships in 2-12 days

0

40

Murray 7101193

Nylon Tie
(Superseded to 7101193MA)

$22.99

$

In Stock, only 1 left!

0

41

Murray 015X89MA

Lock Nut, 1/4-20 Washer Face

$4.49

$

Usually ships in 2-12 days

0

42

Murray 7101176

Crank Knob

$

$

Currently unavailable

43

Murray 7101215

Grip, Knob

$1.99

$

Usually ships in 2-12 days

0

44

Murray 7101078

Bracket, Chute Anti-rotation

$

$

Currently unavailable

45

Murray 7101183

Cable Bracket

$3.49

$

Usually ships in 2-12 days

0

46

Murray 7101180

Chute Tilt Handle

$

$

Currently unavailable

47

Murray 7101181

Knob

$

$

Currently unavailable

48

Murray 7101179

Chute Tilt Bracket Assembly

$

$

Currently unavailable

49

Murray 7101182

Guide, Cable

$

$

Currently unavailable

50

Murray 7101184

Cable, Chute Control

$26.99

$

Usually ships in 2-12 days

0

51

Murray 7101185

Cable, Chute Control W/Clip

$26.99

$

Usually ships in 2-12 days

0

52

Murray 7101178

Chute, Upper (Snow Deflector)

$10.99

$

Usually ships in 2-12 days

0

53

Murray 7101124

Carriage Bolt, 5/16-18 x 1-1/2"

$

$

Currently unavailable

54

Murray 7101186

Screw, 1/4-14 x 5/8"

$

$

Currently unavailable

55

Murray 7101177

Chute, Lower

$

$

Currently unavailable

56

Murray 7101131

Washer, Bowed

$

$

Currently unavailable

57

Murray 017X53MA

Washer, 3/8" Std Wrt
(Superseded to 703590)

$3.99

$

In Stock, Qty 9

0

58

Murray 7101145

Pulley, V Idler

$47.99

$

Usually ships in 2-12 days

0

59

Murray 7101132

Screw, Self-tap 1/4" x 1"

$1.99

$

Usually ships in 2-12 days

0

60

Murray 001X75MA

Hex Bolt, 5/16-18 x 1-3/4"

$3.99

$

Usually ships in 2-12 days

0

61

Murray 015X97MA

Hex Lock Nut, 3/8-16 (Nylock)

$3.49

$

Usually ships in 2-12 days

0

62

Murray 001X87MA

Hex Bolt, 3/8-16 x 1-3/4"

$3.99

$

Usually ships in 2-12 days

0

63

Murray 7101084

Bracket, Lift Channel
(Superseded to 7101084YP)

$11.99

$

Usually ships in 2-12 days

0

64

Murray 7101200

Mounting Pan Assembly
(Superseded to 7101200YP)

$4.49

$

In Stock, only 2 left!

0

65

Murray 7101082

Bracket, Housing Support (RH)
(Superseded to 7101082SM)

$8.99

$

In Stock, Qty 11

0

66

Murray 7101085

Bracket, Idler Pulley

$

$

Currently unavailable

67

Murray 7101083

Bracket, Housing Support (LH)

$

$

Currently unavailable

68

Murray 7101119

Carriage Bolt, 3/8-16 x 1"

$

$

Currently unavailable

69

Murray 7101222

Cover, Belt Drive

$

$

Currently unavailable

70

Murray 7101168

Bushing

$

$

Currently unavailable

71

Murray 0025X7MA

Screw, 3/8-16 x 1-1/4" Thd Form
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

72

Murray 7101218

Bracket, Ramp Anchor

$

$

Currently unavailable

73

Murray 7101217

Screw, Hex Head Lag

$1.99

$

Usually ships in 2-12 days

0

74

Murray 7101125

Carriage Bolt, 5/16-18 x 1-1/4"

$

$

Currently unavailable

75

Murray 7101150

Red Reflector

$

$

Currently unavailable

76

Murray 7101143

Label, Cut Finger

$

$

Currently unavailable

77

Murray 7101142

Label, Warning/Danger

$

$

Currently unavailable

78

Murray 7101144

Label, Add Weight

$

$

Currently unavailable

81

Murray 7101141

Pulley, 7" OD

$38.99

$

Usually ships in 2-12 days

0

82

Murray 17X146MA

Washer, .344" ID X 1.125" OD
(Superseded to 1933468SM)

$4.49

$

Usually ships in 2-12 days

0

83

Murray 7101148

Hex Bolt, 5/16-24 x 1"

$

$

Currently unavailable

84

Murray 7101225

Washer, Nylon

$

$

Currently unavailable

85

Murray 15X123MA

Hex Lock Nut, 5/16-18 (Nylock)
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

86

Murray 7101226

Plate, Tail Reflector

$

$

Currently unavailable

--

Murray 7101156

Owners Manual

$

$

Currently unavailable
