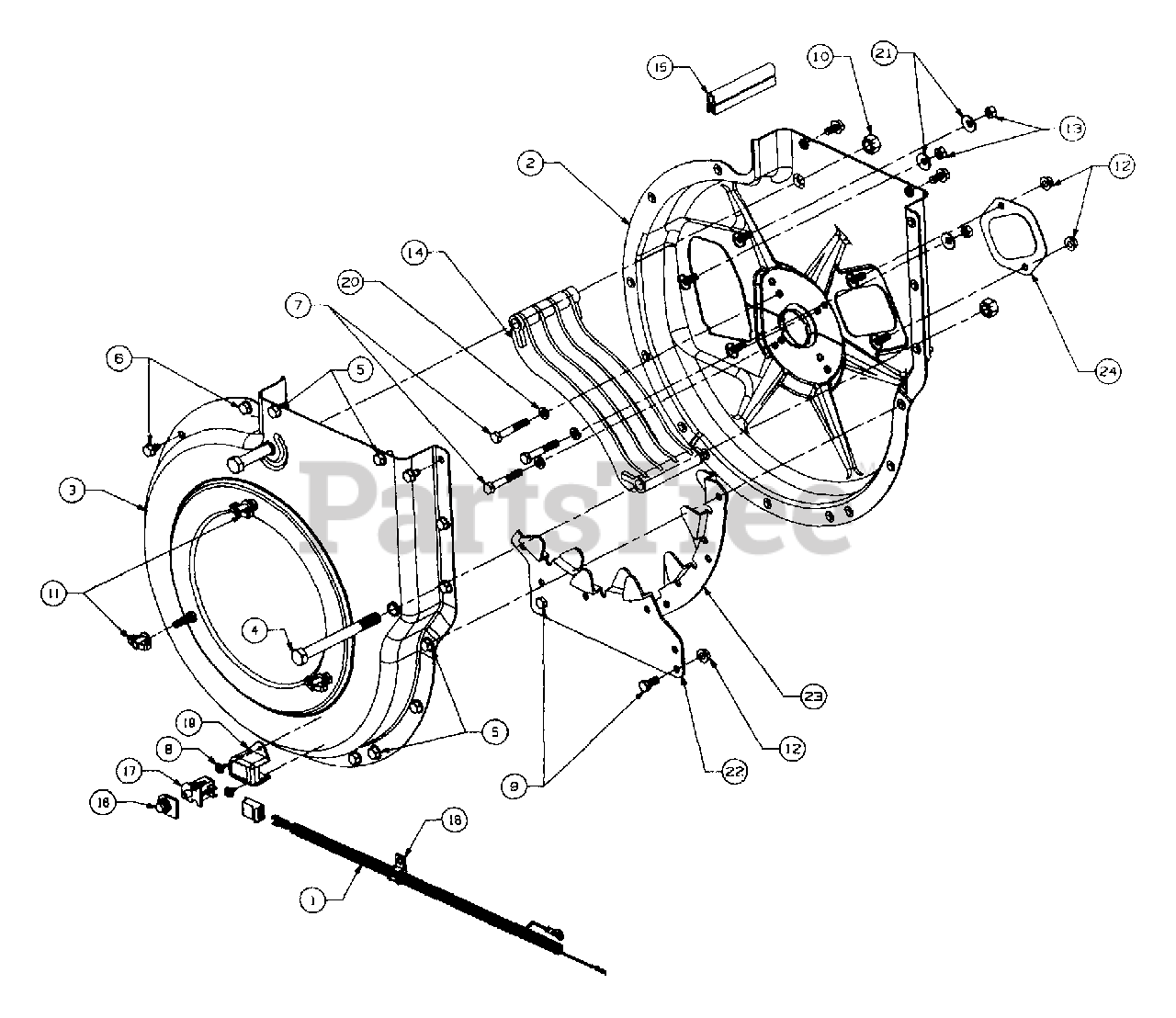

246-315B190 - White Outdoor Walk-Behind Lawn Vacuum, 8hp (1996) Chipper Assembly Parts Diagram

Walk-Behind Lawn Vacuum, 8hp

Chipper Assembly Parts Diagram

  • Title

1

White Outdoor 629-0241

HARNESS - CHIPPER VAC

$

$

Not available

2

White Outdoor 681-0059

HOUSING ASSY - INNER

Variations

White Outdoor 681-0059-0483

No Longer Available HSG-ASSY-INNER - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 681-0059-0638

No Longer Available HSG-ASSY-INNER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 681-0059-0650

No Longer Available HSG-ASSY-INNER - RED METALLIC (0650)

$

$

Not available

White Outdoor 681-0059-0662

Housing Ass'y, Inner Flail - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 681-0059-0665

No Longer Available HSG-ASSY-INNER - YARDMAN GREEN (0665)

$

$

Not available

$

$

3

White Outdoor 681-0060

HOUSING ASSY - OUTER

Variations

White Outdoor 681-0060-0483

HOUSING-ASSY-OUTER - CHARCOAL GRAY (0483)

$309.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0060-0638

HOUSING-ASSY-OUTER - MTD/TROY-BILT RED (0638)

$288.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0060-0650

HOUSING-ASSY-OUTER - RED METALLIC (0650)

$288.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0060-0662

HOUSING-ASSY-OUTER - OYSTER GRAY (0662)

$288.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0060-0665

HOUSING-ASSY-OUTER - YARDMAN GREEN (0665)

$288.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0060-0689

HOUSING-ASSY-OUTER - POLO GREEN (0689)

$288.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0060-0716

HOUSING-ASSY-OUTER - CUB YELLOW-99 (0716)

$288.99

$

Usually ships in 3-6 days

0

$288.99

$

Usually ships in 3-6 days

0

4

White Outdoor 710-0382

SCREW - HEX

$11.99

$

In Stock, only 2 left!

0

5

White Outdoor 710-0604

SCREW - HEX SELF TAP
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-0607

SCREW - HEX SELF TAP

$6.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0772

SCREW - HEX

$4.49

$

Usually ships in 3-6 days

0

8

White Outdoor 710-1268

SCREW - HEX SELF TAP

$3.99

$

In Stock, only 2 left!

0

9

White Outdoor 710-3008

SCREW - HEX

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 712-0384

NUT - HEX LOCK
(Superseded to 912-0384)

$6.49

$

In Stock, only 3 left!

0

11

White Outdoor 712-0421

KNOB

$6.49

$

In Stock, Qty 20+

0

12

White Outdoor 712-3004A

NUT - HEX LOCK

$3.49

$

In Stock, Qty 20+

0

13

White Outdoor 712-3010

NUT - HEX (GR 5)

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 719-0326

SCREEN

$94.99

$

In Stock, only 2 left!

0

15

White Outdoor 723-0438

SEAL - RUBBER

$9.99

$

Usually ships in 3-6 days

0

16

White Outdoor 725-1700

COVER - SWITCH
(Superseded to 925-1700)

$11.99

$

In Stock, only 2 left!

0

17

White Outdoor 725-3166

SWITCH
(Superseded to 925-3166)

$15.99

$

In Stock, Qty 20+

0

18

White Outdoor 726-0272

CLAMP

$6.99

$

Usually ships in 3-6 days

0

19

White Outdoor 731-1613

COVER SWITCH
(Superseded to 931-1613)

$9.99

$

In Stock, only 2 left!

0

20

White Outdoor 736-0119

WASHER - LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 736-0242

WASHER - BELL

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 781-0598

BLADE - FLAIL HOUSING
(Superseded to 781-0598-0637)

Variations

White Outdoor 781-0598-0637

Shredder Blade, Lower - POWDER BLACK (0637)

$79.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

23

White Outdoor 781-0599

BLADE - FLAIL HOUSING
(Superseded to 781-0599-0637)

Variations

White Outdoor 781-0599-0637

Shredder Blade, Upper - POWDER BLACK (0637)

$30.99

$

In Stock, only 1 left!

0

$30.99

$

In Stock, only 1 left!

0

24

White Outdoor 781-0627

COVER - CHIPPER

Variations

White Outdoor 781-0627-0483

COVER-CHIPPER-BLAD - CHARCOAL GRAY (0483)

$17.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0627-0498

COVER-CHIPPER-BLAD - OLD CUB YELLOW (0498)

$17.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0627-0637

COVER-CHIPPER-BLAD - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0627-0638

COVER-CHIPPER-BLAD - MTD/TROY-BILT RED (0638)

$19.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0627-0648

COVER-CHIPPER-BLAD - TECH GRAY (0648)

$17.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0627-0650

COVER-CHIPPER-BLAD - RED METALLIC (0650)

$17.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0627-0662

COVER-CHIPPER-BLAD - OYSTER GRAY (0662)

$17.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0627-0716

COVER-CHIPPER-BLAD - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0
