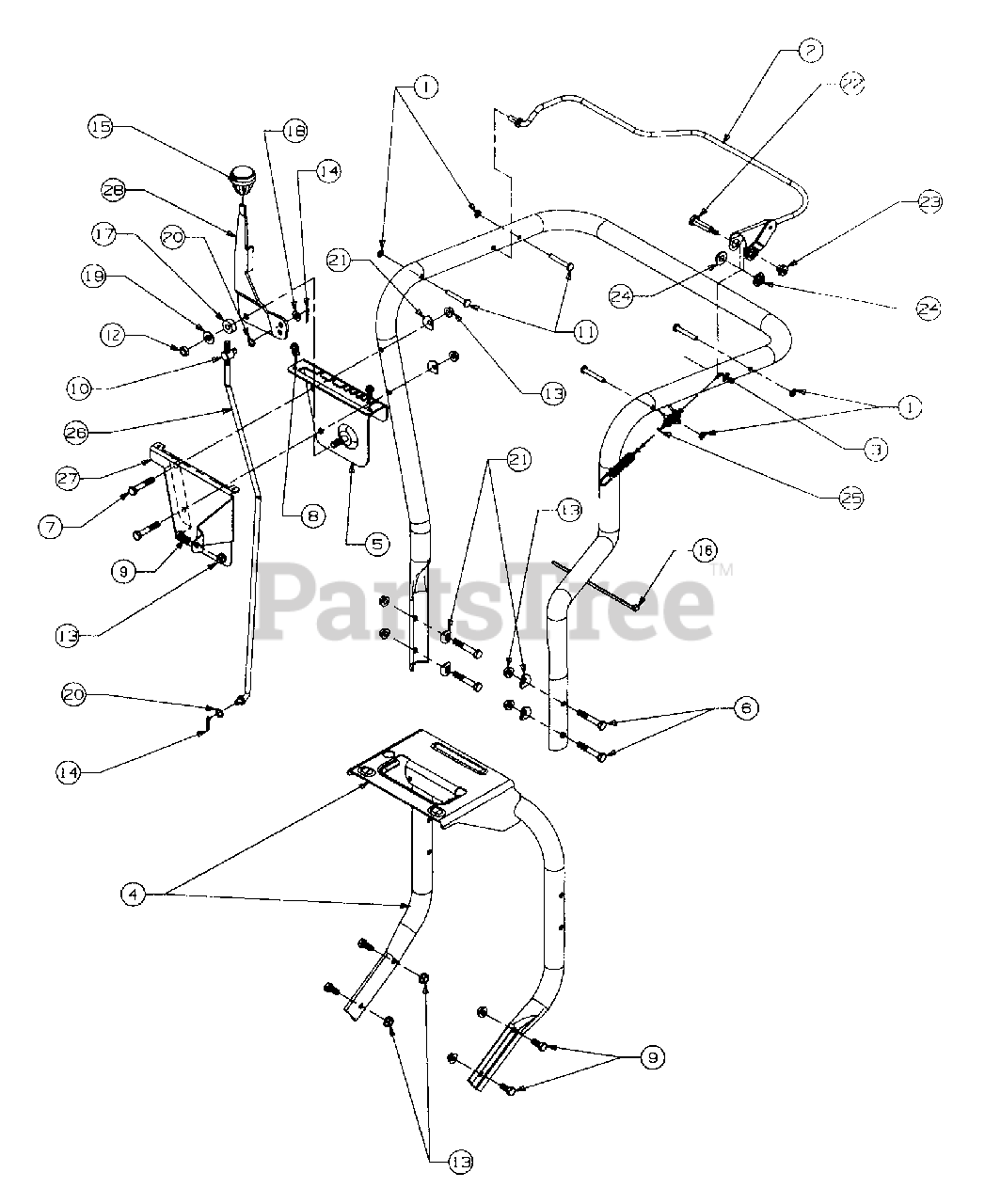

246-315B190 - White Outdoor Walk-Behind Lawn Vacuum, 8hp (1996) > Parts Diagrams (11) > Handle Assembly

  • Title
1539-019

1

PUSHNUT

Part# 1539-019

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

647-0019

2

CONTROL ASSY

Part# 647-0019

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

No Longer Available

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

OLD CUB YELLOW (0498)

No Longer Available CONTROL-ASSY-CLUTC

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

CONTROL-ASSY-CLUTCH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

No Longer Available CONTROL-ASSY-CLUTC

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

CONTROL-ASSY-CLUTCH

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

649-0008

3

HANDLE ASSY - UPPER

Part# 649-0008

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

No Longer Available HANDLE-ASSY-UPPER

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

OLD CUB YELLOW (0498)

No Longer Available HANDLE-ASSY-UPPER

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

No Longer Available HANDLE-ASSY-UPPER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

No Longer Available HANDLE-ASSY-UPPER

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

No Longer Available HANDLE-ASSY-UPPER

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

Handle Assembly, Upper

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

649-0012

4

HANDLE ASSY - LOWER

Part# 649-0012

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

HANDLE-ASSY-LOWER

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

No Longer Available HANDLE-ASSY-LOWER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

No Longer Available HANDLE-ASSY-

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

No Longer Available HANDLE-ASSY-LOWER

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

Handle Assembly, Lower

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

CUB YELLOW-99 (0716)

HANDLE-ASSY-LOWER

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for White Outdoor

Not available

681-0076

5

BRACKET ASSY - SHIFT

Part# 681-0076

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

BRACKET-SHIFT-ASSY

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

OLD CUB YELLOW (0498)

BRACKET-SHIFT-ASSY

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

BRACKET-SHIFT-ASSY

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

BRACKET-SHIFT-ASSY

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

BRACKET-SHIFT-ASSY

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

BRACKET-SHIFT-ASSY

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

POLO GREEN (0689)

BRACKET-SHIFT-ASSY

Part# POLO GREEN (0689)

OEM Warranty Repair Part for White Outdoor

Not available

CUB YELLOW-99 (0716)

BRACKET-SHIFT-ASSY

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for White Outdoor

Not available

710-0116

6

SCREW - HEX

Part# 710-0116 (Superseded to 710-3103)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

710-0380

7

SCREW - HEX

Part# 710-0380 (Superseded to 710-3180)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.92

710-0896

8

SCREW - HEX

Part# 710-0896

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

710-3008

9

SCREW - HEX

Part# 710-3008

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

711-0677

10

FERRULE

Part# 711-0677 (Superseded to 911-0677)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.50

711-0737

11

PIN - STUD

Part# 711-0737 (Superseded to 911-0737)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.31

712-0116

12

NUT - HEX LOCK

Part# 712-0116 (Superseded to 912-0116)

OEM Warranty Repair Part for White Outdoor

Not available

712-3004A

13

NUT - HEX LOCK

Part# 712-3004A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

714-0104

14

PIN - COTTER

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

720-0232

15

KNOB - SHIFT

Part# 720-0232 (Superseded to 920-0232)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.29

725-0157

16

CABLE - TIE

Part# 725-0157

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.74

735-0126

17

WASHER - RUBBER

Part# 735-0126 (Superseded to 735-0126A)

OEM Warranty Repair Part for White Outdoor

Not available

736-0264

18

WASHER - FLAT

Part# 736-0264 (Superseded to 936-0264)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

736-0300

19

WASHER - FLAT

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0413

20

WASHER - SPRING

Part# 736-0413

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

736-0451

21

WASHER - SADDLE

Part# 736-0451 (Superseded to 936-0451)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

738-0560

22

SCREW - SHOULDER

Part# 738-0560 (Superseded to 938-0560)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.29

738-0561

23

NUT - SHOULDER

Part# 738-0561 (Superseded to 938-0561)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.53

741-0402

24

BEARING - FLANGE PLASTIC

Part# 741-0402 (Superseded to 941-0402)

OEM Warranty Repair Part for White Outdoor

Not available

746-0921

25

CABLE - CLUTCH

Part# 746-0921 (Superseded to 946-0921)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $41.98

747-0626

26

ROD - SHIFT

Part# 747-0626

OEM Warranty Repair Part for White Outdoor

Not available

781-0626

27

COVER - SHIFT

Part# 781-0626

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

COVER-SHIFT

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

COVER-SHIFT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

COVER-SHIFT

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

COVER-SHIFT

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

784-0297A

28

HANDLE - SHIFT

Part# 784-0297A

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

No Longer Available HANDLE-SHIFT

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

No Longer Available HANDLE-SHIFT

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available
