246-315B190 - White Outdoor Walk-Behind Lawn Vacuum, 8hp (1996)

Walk-Behind Lawn Vacuum, 8hp

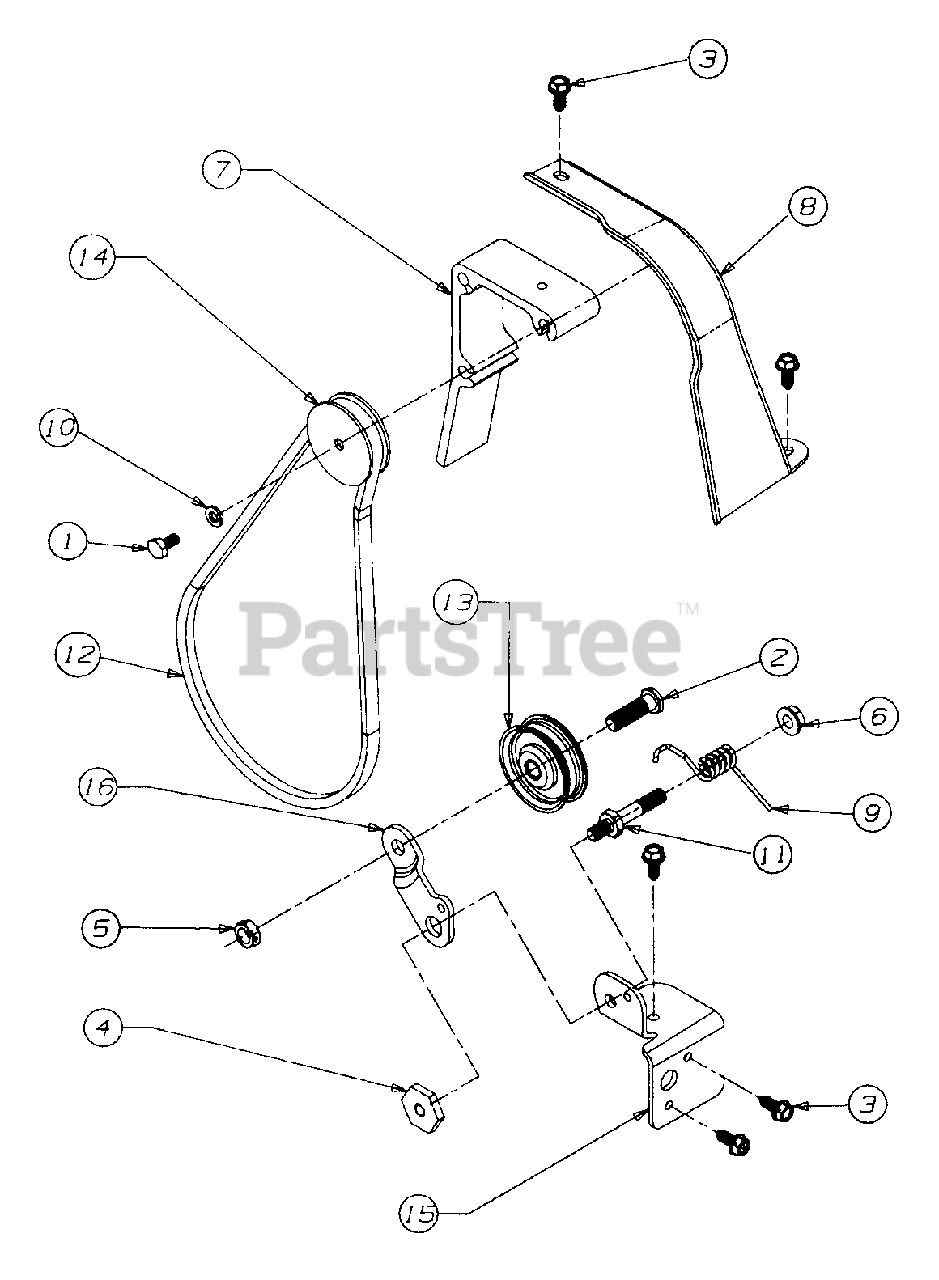

246-315B190 - White Outdoor Walk-Behind Lawn Vacuum, 8hp (1996) > Parts Diagrams (11) > V-Belt Pulley

  • Title
710-0230

1

SCREW - HEX

Part# 710-0230

OEM Warranty Repair Part for White Outdoor

Not available

710-0723

2

SCREW - HEX

Part# 710-0723

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.23

710-0896

3

SCREW - HEX

Part# 710-0896

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

711-0758

4

NUT - HEX SHOULDER

Part# 711-0758 (Superseded to 911-0758)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.03

712-0266

5

NUT - HEX LOCK

Part# 712-0266 (Superseded to 712-0266A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

712-3004A

6

NUT - HEX LOCK FLANGE

Part# 712-3004A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

719-0330

7

ADAPTER - MOUNTING

Part# 719-0330 (Superseded to 719-0359)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $23.50

731-1584

8

COVER - BELT

Part# 731-1584

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BELT COVER PLAS.

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

732-0745

9

SPRING - TORSION

Part# 732-0745

OEM Warranty Repair Part for White Outdoor

Not available

736-0329

10

WASHER - LOCK

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

738-0908

11

BOLT - IDLER

Part# 738-0908

OEM Warranty Repair Part for White Outdoor

Not available

754-0256

12

V-BELT

Part# 754-0256 (Superseded to 954-0256)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $40.40

756-0313

13

IDLER - FLAT

Part# 756-0313

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $19.43

756-0649

14

PULLEY

Part# 756-0649

OEM Warranty Repair Part for White Outdoor

Not available

781-0611

15

BRACKET - IDLER PIVOT

Part# 781-0611

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

BRACKET-IDLER

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

CUB BEIGE (0499)

No Longer Available

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

BRACKET-IDLER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

No Longer Available BRKT-IDLER

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

No Longer Available BRKT-IDLER

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

Bracket, Idler Pivot

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

781-0614

16

BRACKET - IDLER

Part# 781-0614

OEM Warranty Repair Part for White Outdoor

Not available
