246 - Husqvarna Chainsaw (SN: 19950600001 - 19982300000) CYLINDER PISTON Parts Diagram

Chainsaw

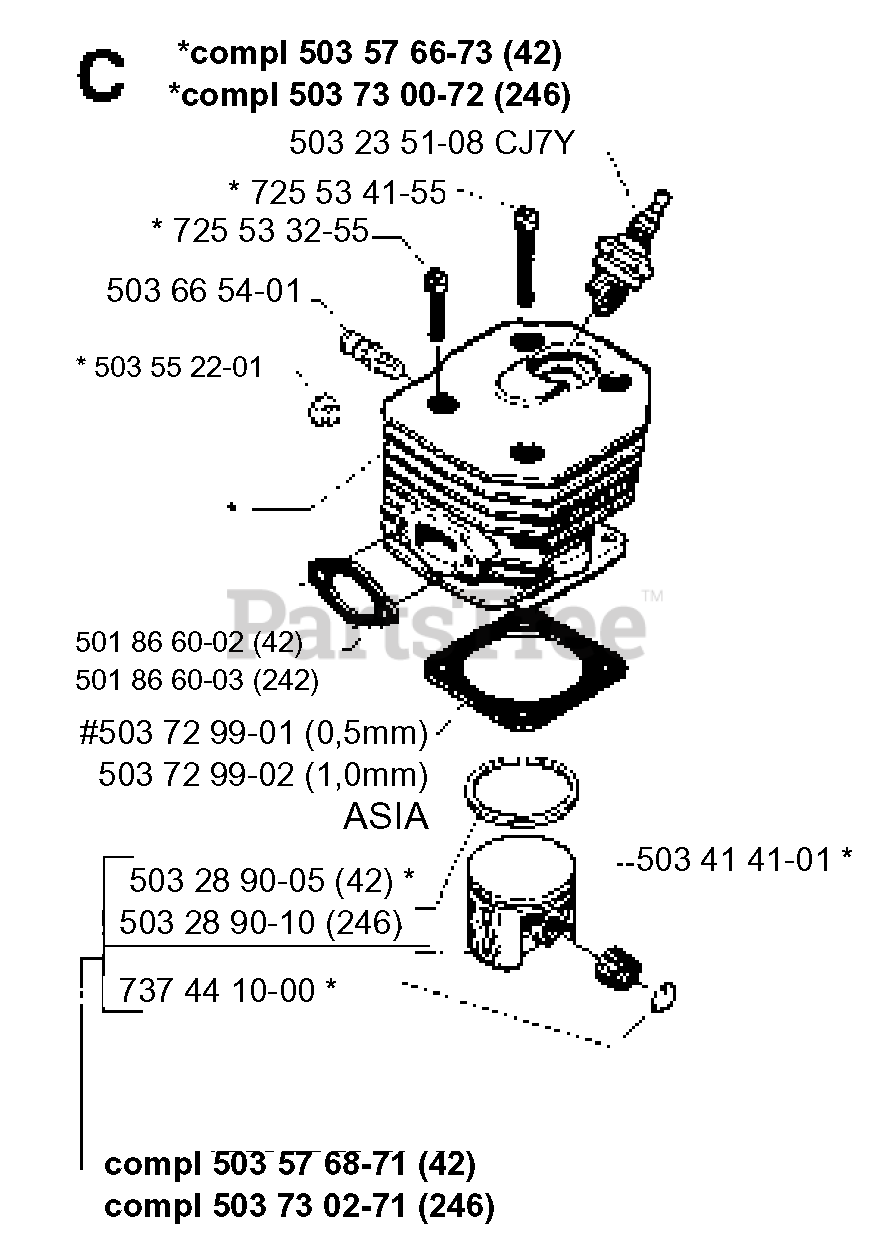

CYLINDER PISTON Parts Diagram

  • Title

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 952030150)

Note: CJ7Y

$3.49

$

In Stock, Qty 20+

0

503 28 90-05

Husqvarna 503289005

PISTON RING

Note: 42

$31.99

$

In Stock, only 3 left!

0

725 53 32-55

Husqvarna 725533255

SCREW MC6S 5X22

$2.49

$

Usually ships in 3-10 days

0

737 44 10-00

Husqvarna 737441000

LOCKING RING

$6.49

$

In Stock, only 2 left!

0

501 86 60-03

Husqvarna 501866003

GASKET

Note: 242

$6.99

$

In Stock, only 1 left!

0

503 57 68-71

Husqvarna 503576871

PISTON CPL

Note: 42

$

$

Not available

503 28 90-10

Husqvarna 503289010

PISTON RING

Note: 246

$26.99

$

In Stock, only 1 left!

0

503 55 22-01

Husqvarna 503552201

CYLINDER PLUG

$13.99

$

In Stock, only 3 left!

0

725 53 41-55

Husqvarna 725534155

SCREW MC6S 5X50

$5.99

$

In Stock, Qty 10

0

503 66 54-01

Husqvarna 503665401

DECOMPRESSION VALVE
(Superseded to 544200001)

$67.99

$

In Stock, only 2 left!

0

503 73 02-71

Husqvarna 503730271

PISTON ASSY/246

Note: 246

$

$

Not available

503 72 99-02

Husqvarna 503729902

GASKET

Note: 1,0MM ASIA

$

$

Not available

503 57 66-73

Husqvarna 503576673

CYLINDER

Note: 42

$

$

Not available

501 86 60-02

Husqvarna 501866002

GASKET
(Superseded to 501866003)

Note: 42

$6.99

$

In Stock, only 1 left!

0

503 72 99-01

Husqvarna 503729901

GASKET

Note: 0,5MM

$4.99

$

Usually ships in 3-10 days

0

503 41 41-01

Husqvarna 503414101

SUPPORT BUSHING

$24.99

$

In Stock, only 1 left!

0

503 73 00-72

Husqvarna 503730072

CYLINDER ASSY

Note: 246

$

$

Not available
