24632-7 - MTD Log Splitter (1987) Log Parts Diagram

Log Splitter

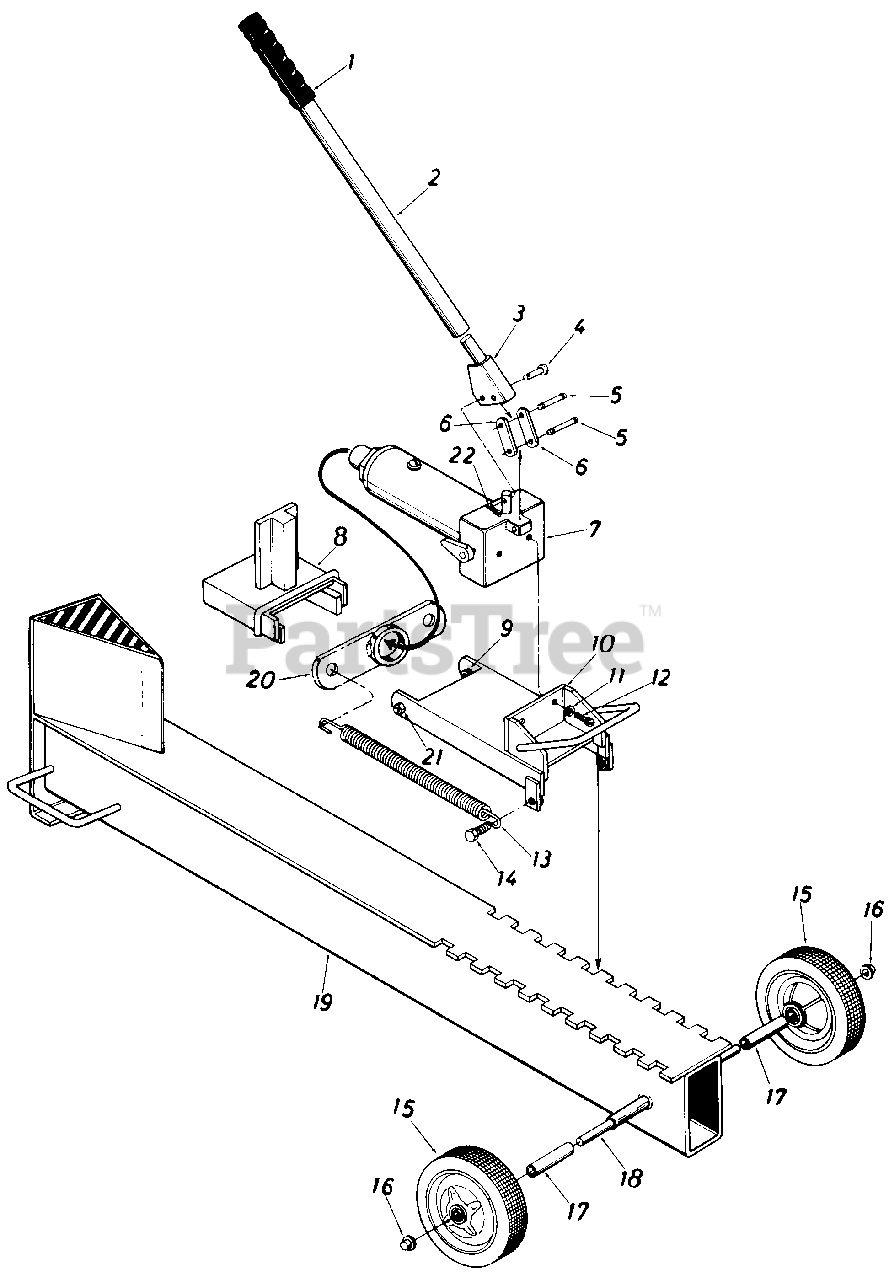

Log Parts Diagram

  • Title

1

MTD 01166

Handle Grip
(Superseded to 720-0204)

$12.99

$

Usually ships in 3-6 days

0

2

MTD 747-0488

Handle 3/8" Dia. Rod

$

$

Currently unavailable

3

MTD HW-66713

Handle Socket

$

$

Currently unavailable

4

MTD 711-0599

Clevis Pin
(Superseded to 711-0679A)

Note: (Service Only)

$13.99

$

In Stock, only 2 left!

0

5

MTD HW-66727

Pin & Ring Assembly

$

$

Currently unavailable

6

MTD HW-66722

Link

$

$

Currently unavailable

7

MTD 717-0614

Hydraulic Pump & Cyl inder

$

$

Currently unavailable

8

MTD 781-0050

Push Plate Ass'y.

$

$

Not available

9

MTD 710-0925

Socket Hd. Bolt 1/2-13 x .75" Lg.

$

$

Currently unavailable

10

MTD 781-0057

Cylinder Mounting

$

$

Currently unavailable

11

MTD 736-0169

L.-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

12

MTD 710-0926

Socket Hd. Bolt 3/8-16 x . 75" Lg.

$

$

Currently unavailable

13

MTD 732-0466

Extension Spring .75" O.D. x 10.75" Lg.

$

$

Not available

14

MTD 710-0820

Hex L.-Bolt 3/8-16 x .75" Lg.

$

$

Currently unavailable

15

MTD 734-1079

Wheel 7.0" x 1.75"

$

$

Currently unavailable

16

MTD 726-0221

1/2" Push Cap

$5.99

$

In Stock, only 2 left!

0

17

MTD 750-0151

Spacer
(Superseded to 950-0151)

$9.99

$

In Stock, Qty 20+

0

18

MTD 738-0584

Axle 1/2" Dia. x 12" Lg.

$

$

Currently unavailable

19

MTD 781-0066

Tube and Rail Ass'y.

$

$

Currently unavailable

20

MTD 781-0096

Cyl. Return Ass'y.

$

$

Currently unavailable

21

MTD 712-0384

Hex Cent. L.-Nut 1/2-13 Thd.
(Superseded to 912-0384)

$6.49

$

In Stock, only 3 left!

0

22

MTD 714-0149

Hair Pin Cotter
(Superseded to 914-0149B)

Note: (Service Only)

$

$

Not available

MTD 753-0389

Kit-Seal

Note: (See Below)

$

$

Currently unavailable
