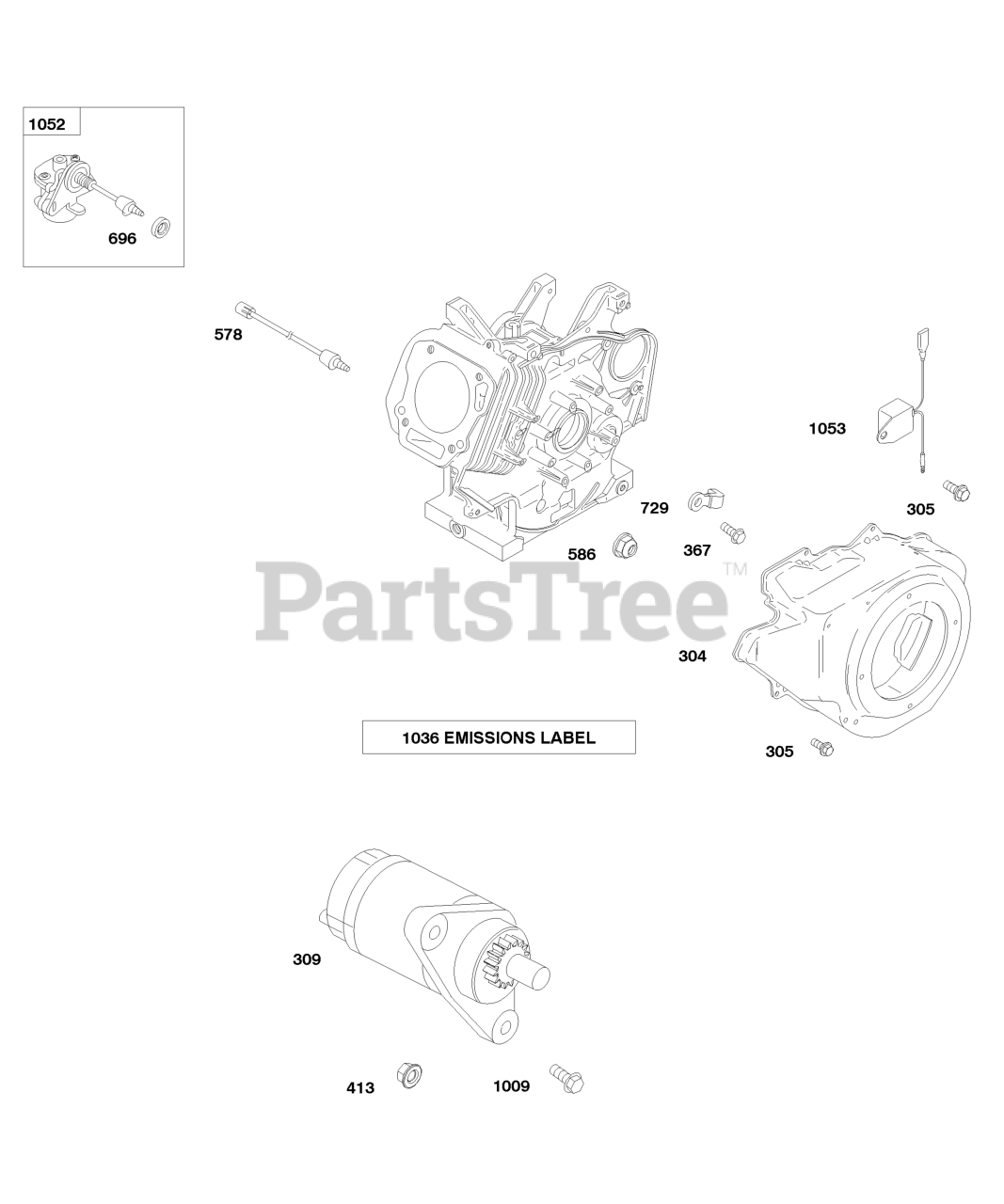

246435-0111-E1 - Briggs & Stratton Horizontal Engine Blower Housing, Electric Starter Parts Diagram

Horizontal Engine

Blower Housing, Electric Starter Parts Diagram

  • Title

304

Briggs & Stratton 711286

Housing-Blower

$255.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 710023

Screw

Note: (Blower Housing)

$4.49

$

In Stock, Qty 9

0

309

Briggs & Stratton 715208

Motor-Starter

Note: (Steel Pinion)

$529.99

$

Usually ships in 2-12 days

0

367

Briggs & Stratton 710023

Screw

Note: (Wire Clip)

$4.49

$

In Stock, Qty 9

0

413

Briggs & Stratton 710081

Nut

Note: (Starter Motor)

$3.99

$

In Stock, only 2 left!

0

578

Briggs & Stratton 710308

Wire Assembly

Note: (1 Wire, 11-13/16" Long)(Supported Snap Connect Pin terminal WithGroove, And Snap Connect Female Blade Terminal))

$11.99

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 715202

Wire Assembly

$11.99

$

Usually ships in 2-12 days

0

586

Briggs & Stratton 710090

Nut

Note: (Oil Sensor)

$3.99

$

Usually ships in 2-12 days

0

696

Briggs & Stratton 710091

Seal-O Ring

Note: (Oil Sensor)

$6.49

$

In Stock, only 1 left!

0

729

Briggs & Stratton 710083

Clip-Wire

$12.99

$

In Stock, only 3 left!

0

1009

Briggs & Stratton 710348

Screw

Note: (Starter Motor)

$5.49

$

Usually ships in 2-12 days

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1052

Briggs & Stratton 715353

Sensor-Oil

$140.99

$

Usually ships in 2-12 days

0

1053

Briggs & Stratton 710305

Module-Oil Gard

$175.99

$

Usually ships in 2-12 days

0
