246435-0111-E1 - Briggs & Stratton Horizontal Engine Cylinder, Piston/Rings/Connecting Rod, Owner's Manual Parts Diagram

Horizontal Engine

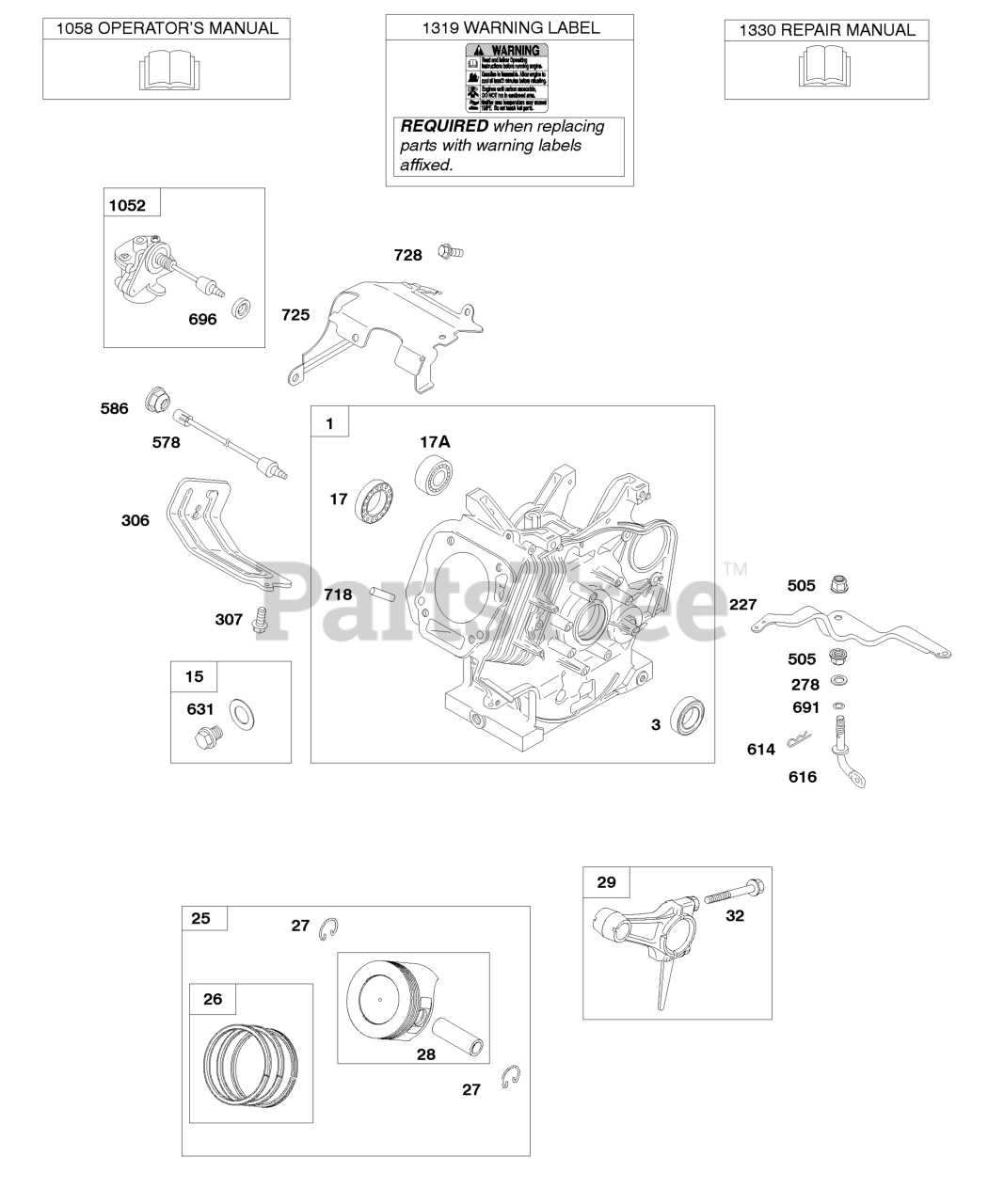

Cylinder, Piston/Rings/Connecting Rod, Owner's Manual Parts Diagram

  • Title

1

Briggs & Stratton 716158

Cylinder Assembly

$

$

Not available

3

Briggs & Stratton 291675S

Seal-Oil

Note: (Magneto Side)

$7.49

$

In Stock, Qty 5

0

15

Briggs & Stratton 715000

Plug-Oil Drain
(Superseded to 716516)

$10.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 710528

Bearing-Ball

$38.99

$

Usually ships in 2-12 days

0

17A

Briggs & Stratton 710482

Bearing-Ball

$16.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 715797

Piston Assembly

Note: (.020 Oversize)

$186.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 715793

Piston Assembly

Note: (Standard)

$132.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 715346

Ring Set

Note: (Standard)

$

$

Not available

26

Briggs & Stratton 715368

Ring Set

Note: (.020 Oversize)

$51.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691792

Lock-Piston Pin

$5.49

$

In Stock, only 1 left!

0

28

Briggs & Stratton 711968

Pin-Piston
(Superseded to 715407)

$

$

Not available

29

Briggs & Stratton 715345

Rod-Connecting
(Superseded to 716524)

Note: (Standard)

$

$

Not available

32

Briggs & Stratton 710221

Screw

Note: (Connecting Rod)

$8.49

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 710561

Lever-Governor Control

Note: (NO LONGER AVAILABLE)

$20.99

$

Usually ships in 2-12 days

0

278

Briggs & Stratton 710058

Washer

Note: (Governor Control Lever)

$4.49

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 710242

Shield-Cylinder

$20.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 710023

Screw

Note: (Cylinder Shield)

$4.49

$

In Stock, Qty 9

0

505

Briggs & Stratton 710059

Nut

Note: (Governor Control Lever)

$3.99

$

In Stock, only 1 left!

0

578

Briggs & Stratton 710308

Wire Assembly

Note: (1 Wire, 11-13/16" Long)(Supported Snap Connect Pin terminal WithGroove, And Snap Connect Female Blade Terminal))

$11.99

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 715202

Wire Assembly

$11.99

$

Usually ships in 2-12 days

0

586

Briggs & Stratton 710090

Nut

Note: (Oil Sensor)

$3.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 710056

Pin-Cotter

$5.49

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 711962

Crank-Governor

$24.99

$

In Stock, only 1 left!

0

631

Briggs & Stratton 710004

Washer

Note: (Oil Drain Plug)

$3.99

$

In Stock, only 1 left!

0

691

Briggs & Stratton 710055

Seal-Governor Shaft

$6.99

$

Usually ships in 2-12 days

0

696

Briggs & Stratton 710091

Seal-O Ring

Note: (Oil Sensor)

$6.49

$

In Stock, only 1 left!

0

718

Briggs & Stratton 710005

Pin-Locating

$5.99

$

Usually ships in 2-12 days

0

725

Briggs & Stratton 710568

Shield-Heat

$

$

Not available

728

Briggs & Stratton 710023

Screw

Note: (Heat Shield)

$4.49

$

In Stock, Qty 9

0

1052

Briggs & Stratton 715353

Sensor-Oil

$140.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 279775WST

Operator's Manual

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

$23.99

$

In Stock, only 1 left!

0

1330

Briggs & Stratton 272147

Repair Manual

$65.99

$
