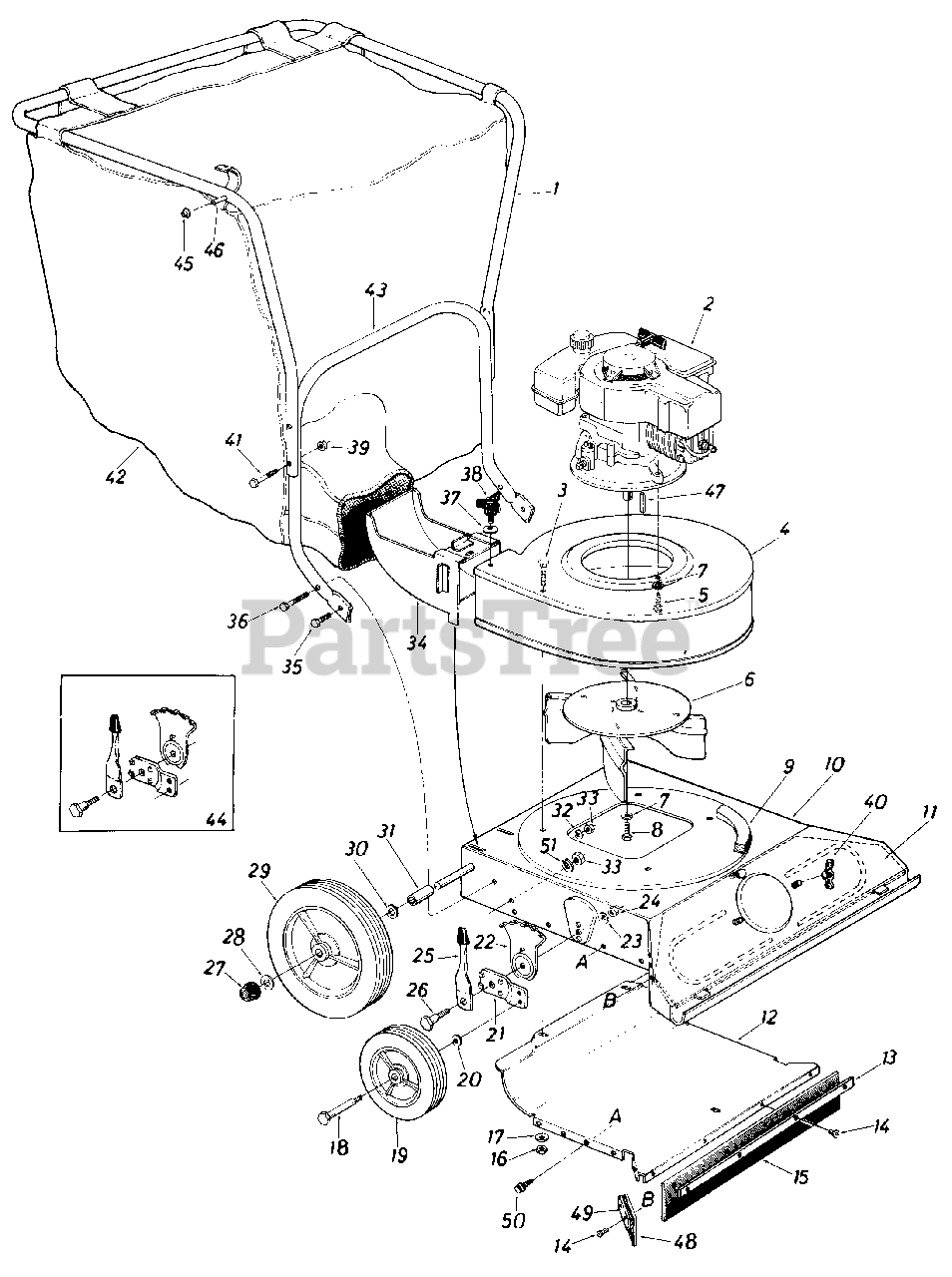

24665-9 - MTD Walk-Behind Vacuum (1989) Power Parts Diagram

Walk-Behind Vacuum

Power Parts Diagram

  • Title
1

MTD Part# 749-0664

Upper Handle (Painted)
Usually ships same day

Currently unavailable

$

$

MTD Part# 749-0480

Upper Handle (Chrome)
Usually ships same day

Currently unavailable

$

$

2

Part#

Engine
Usually ships same day

Not available

$

$

3

MTD Part# 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)
Usually ships in 1 day

$

$2.98

0

4

MTD Part# 15784

Blower Housing Ass'y.
Usually ships same day

Not available

$

$

5

MTD Part# 710-0654A

Hex Tap Scr. 3/8-16 x 1.00" Lg.
Usually ships in 1 day

$

$3.00

0

6

MTD Part# 15786A

Impeller Ass y.
Usually ships same day

Not available

$

$

7

MTD Part# 736-0217

L.-Wash. 3/8" I.D.
(Superseded to 936-0217)
Usually ships in 1 day

$

$3.06

0

8

MTD Part# 710-0591

Hex Bolt 3/8-24 x 1.0" Lg. w/Patch
Usually ships in 5 to 10 days

$

$3.16

0

9

MTD Part# 722-0137

P.V.C. Foam Strip (4-Pcs. 12" Lg.)
Usually ships same day

Not available

$

$

10

MTD Part# 15780

Vacuurn Deck Ass'y.
Usually ships same day

Currently unavailable

$

$

11

MTD Part# 15796

Front Baffle Ass'y.
Usually ships same day

Currently unavailable

$

$

12

MTD Part# 15788

Lower Baffle Ass'y.
Usually ships same day

Currently unavailable

$

$

13

MTD Part# 15790

Wiper Retaining Strip
Usually ships same day

Currently unavailable

$

$

14

MTD Part# 728-0123

Pop Rivet.188" Dia.
(Superseded to 928-0123)
Usually ships in 5 to 10 days

$

$3.48

0

15

MTD Part# 735-0222

Nozzle Wiper Rear
Usually ships same day

Not available

$

$

16

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

17

MTD Part# 736-0242

Bell.-Wash. .34" I.D. x .87" O.D.
Usually ships in 1 day

$

$3.00

0

18

MTD Part# 738-0102

Shld. Bolt 1/2" Dia. x 1.45" Lg. (3/8-16)
(Superseded to 938-0102)
Usually ships in 1 day

$

$7.32

0

19

MTD Part# 734-1139

Wheel Ass'y. Comp. 8 x 1.75" - Front
Usually ships same day

Not available

$

$

20

MTD Part# 736-0331

Bell.-Wash. .39" I.D. x 1.12" 0. D.
Usually ships in 1 day

$

$2.78

0

21

MTD Part# 15262

Wheel Pivot Bar
(Superseded to 15262B)
Usually ships same day

Not available

$

$

22

MTD Part# 15261

Index Plate
(Superseded to 787-01290A)
Usually ships in 1 day

$

$8.48

0

23

MTD Part# 736-0331

Bell.-Wash. .39" I.D. x 1.12" 0. D.
Usually ships in 1 day

$

$2.78

0

24

MTD Part# 712-0798

Hex Nut 3/8-16 Thd.
Usually ships in 1 day

$

$3.06

0

25

MTD Part# 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)
Usually ships in 1 day

$

$7.61

0

26

MTD Part# 738-0507B

Shoulder Bolt .500" x 7/16" N Lg. (3/8-16)
(Superseded to 938-0507B)
Usually ships same day

Not available

$

$

27

MTD Part# 726-0128

Push Cap .50" Rod (Black)
Usually ships same day

Not available

$

$

28

MTD Part# 736-0272

Fl.-Wash. 1/2" I.D. x 1.0" O.D. x .06
(Superseded to 936-0272)
Usually ships in 1 day

$

$3.50

0

29

MTD Part# 734-1140

Wheel Ass'y. Comp. 1 0 x 1 .75" - Rear
Usually ships same day

Not available

$

$

30

MTD Part# 736-0272

Fl. Wash. 1/2" I.D. x 1.0" O.D. x .06
(Superseded to 936-0272)
Usually ships in 1 day

$

$3.50

0

31

MTD Part# 750-0588

Wheel Spacer 1/2" I.D. x 15/16" Lg.
Usually ships same day

Not available

$

$

32

MTD Part# 736-0331

Bell.-Wash. .39" I.D. x 1.12" O . D
Usually ships in 1 day

$

$2.78

0

33

MTD Part# 712-0798

Hex Nut 3/8-16 Thd.
Usually ships in 1 day

$

$3.06

0

34

MTD Part# 15779

Air Duct Ass'y.
Usually ships same day

Currently unavailable

$

$

35

MTD Part# 710-0201

Hex Bolt 3/8-16 x .75" Lg.
Usually ships same day

Not available

$

$

36

MTD Part# 710-0344

Hex Bolt 3/8-16 x 1.50" Lg.
Usually ships in 1 day

$

$4.13

0

37

MTD Part# 736-0242

Bel l.-Wash. .34" 1. D. x .87 " 0. D
Usually ships in 1 day

$

$3.00

0

38

MTD Part# 720-0170

Thumb Scr. 5/16-18 x .75" Lg.
Usually ships in 1 day

$

$7.89

0

39

MTD Part# 712-0107

Hex Cent. L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)
Usually ships in 1 day

$

$3.26

0

40

MTD Part# 712-0113

Wing Nut 1/4-20 (Plastic)
(Superseded to 912-0113)
Usually ships in 1 day

$

$4.81

0

41

MTD Part# 710-0136

Hex Bolt 1/4-20 x 1.75" Lg.
Usually ships in 1 day

$

$2.91

0

42

MTD Part# 764-0208A

Vacuum Bag (6.6 Bushel)
Usually ships same day

Not available

$

$

43

MTD Part# 749-0592

Lower Handle (Painted)
Usually ships same day

Not available

$

$

MTD Part# 749-0665

Lower Handle (Chrome)
Usually ships same day

Not available

$

$

44

MTD Part# 14578

Height Adjuster Ass'y. Comp. R.H.
(Superseded to 753-06761)
Usually ships in 1 day

$

$46.15

0

MTD Part# 14579

Height Adjuster Ass'y. Comp. L.H.
(Superseded to 753-06761)

Note: (Not Shown)

Usually ships in 1 day

$

$46.15

0

45

MTD Part# 1539-019

Push Speed Nut .25 " Dia.
Usually ships in 1 day

$

$2.89

0

46

MTD Part# 711-0737

Stud Pin .250" Dia. x 1.75" Lg.
(Superseded to 911-0737)
Usually ships in 1 day

$

$3.31

0

47

MTD Part# 714-0105

Sq. Key 3/16 x 3/16 x l.OO"Lg.
(Superseded to 914-0105)
Usually ships in 1 day

$

$2.58

0

48

MTD Part# 735-0221

Nozzle Wiper Side
Usually ships same day

Not available

$

$

49

MTD Part# 15789

Wiper Retaining Strip
Usually ships same day

Not available

$

$

50

MTD Part# 710-0302

Hex Wash. Hd. "F" Tap Scr. #l O
Usually ships same day

Not available

$

$

51

MTD Part# 736-0169

L-Wash. 3/8" I.D.
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0
