24678 - Gravely 48" Snow Dozer Lift for 4-Wheel Tractor SNOWDOZER 48" Parts Diagram

48" Snow Dozer Lift for 4-Wheel Tractor

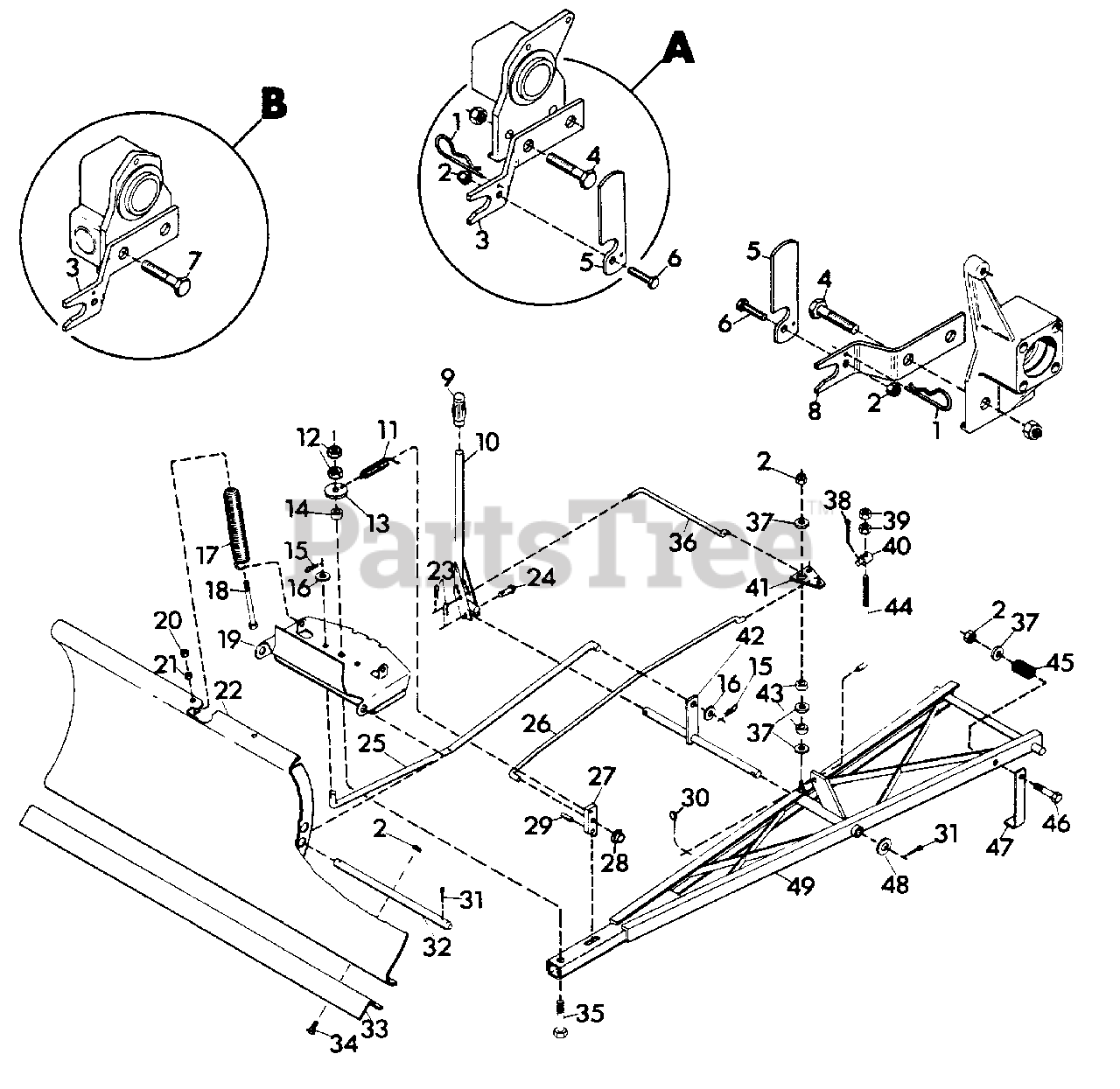

SNOWDOZER 48" Parts Diagram

  • Title

1

Gravely 010405

PIN-HAIR-INT .15X2.937 YWZC
(Superseded to 06714000)

$3.49

$

In Stock, only 1 left!

0

2

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 019766

KIT,AXLE LATCH
(Superseded to 21127800)

$

$

Not available

4

Gravely 180181

BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$3.49

$

In Stock, only 1 left!

0

5

Gravely 019172

STRAP,LOCKING
(Superseded to 21123700)

$

$

Not available

6

Gravely 180124

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 18

0

7

Gravely 180175

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

8

Gravely 019767

KIT,AXLE LATCH
(Superseded to 21127800)

$

$

Not available

9

Gravely 011861

GRIP,HANDLE
(Superseded to 20083000)

$

$

Not available

10

Gravely 018503

HNDL,ASM
(Superseded to 20258500)

$

$

Not available

11

Gravely 011851

SPRG,BLADE ANGLING
(Superseded to 20082300)

$56.99

$

Usually ships in 4-12 days

0

12

Gravely 426897

NUT-JAM .75-10 YWZC
(Superseded to 06537700)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 011850

WSHR,SPRING ANCHOR
(Superseded to 20082200)

$

$

Not available

14

Gravely 018506

BUSH.,S.829X1.06X.500 ST
(Superseded to 20258800)

$

$

Not available

15

Gravely 014412

PIN,HAIR COTTER D146P
(Superseded to 20160800)

$

$

Not available

16

Gravely 131016

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 011865

SPRG,TRIP B/HARDY B-551
(Superseded to 20083400)

$

$

Not available

18

Gravely 018505

BLT-HEX .38-16X4.50 GR5 YWZC
(Superseded to 05970400)

$5.49

$

In Stock, only 2 left!

0

19

Gravely 018501

PLT,PIVOT ASM B-1552
(Superseded to 20258300)

$

$

Not available

20

Gravely 124829

NUT-JAM .375-16 PL
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 018499

ASM,BLD 48" BH-B-1548
(Superseded to 20258100)

$

$

Not available

23

Gravely 011860

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 018507

PIN,CLEVIS
(Superseded to 20258900)

$

$

Not available

25

Gravely 011864

ROD,ANGLG CNTRL BH B-668
(Superseded to 20083300)

$

$

Not available

26

Gravely 034096

ROD,LATCH CONN. LONG
(Superseded to 20592000)

Note: (LONG)

$

$

Not available

27

Gravely 034098

BAR,PIVOT LOCK
(Superseded to 20592200)

$

$

Not available

28

Gravely 014424

NUT-PUSH .312 DIA. PAL
(Superseded to 07008200)

$2.99

$

In Stock, Qty 15

0

29

Gravely 412281

PIN-ROLL .250X1.000
(Superseded to 05808400)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 023468

PIN-KLIK 1.000X.188X1.25 YWZC
(Superseded to 07014500)

$6.49

$

Usually ships in 4-12 days

0

31

Gravely 137218

PIN-CTR .15X1.50 YWZC
(Superseded to 06713800)

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 011846

BLD,PIVOT BH-B-549
(Superseded to 20081800)

$

$

Not available

33

Gravely 018500

PLT,WEAR B-1551
(Superseded to 20258200)

$186.99

$

Usually ships in 4-12 days

0

34

Gravely 120915

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

35

Gravely 271781

BLT-HEX .75-10X4.50 GR5 YWZC
(Superseded to 05968800)

$9.99

$

In Stock, only 1 left!

0

36

Gravely 018504

LATCH,B/HARDY #B-1735
(Superseded to 20258600)

Note: (SHORT)

$

$

Not available

37

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 120123

PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 120238

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.99

$

In Stock, Qty 20+

0

40

Gravely 011262

PIVOT,MOWER LIFT
(Superseded to 08811600)

$52.99

$

In Stock, only 2 left!

0

41

Gravely 014421

BCRNKB1254
(Superseded to 20161500)

$

$

Not available

42

Gravely 018502

SHFT,PIVOT ASM BH B-1734
(Superseded to 20258400)

$

$

Not available

43

Gravely 018508

BUSH.,S.423X.675X.210 ST
(Superseded to 20259000)

$

$

Not available

44

Gravely 035690

ROD,HEIGHT ADJ
(Superseded to 08599000)

$

$

Not available

45

Gravely 034099

SPRG,COMPRESSION
(Superseded to 20592300)

$

$

Not available

46

Gravely 180130

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

47

Gravely 034097

STAND,KICK
(Superseded to 20592100)

$

$

Not available

48

Gravely 131017

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06426000)

$1.99

$

In Stock, Qty 20+

0

49

Gravely 034101

ASM,PUSH FRAME
(Superseded to 20592400)

$

$

Not available

NS

Gravely 019365

DECAL,GRAVELY WHT VINYL
(Superseded to 20278500)

$

$

Not available
