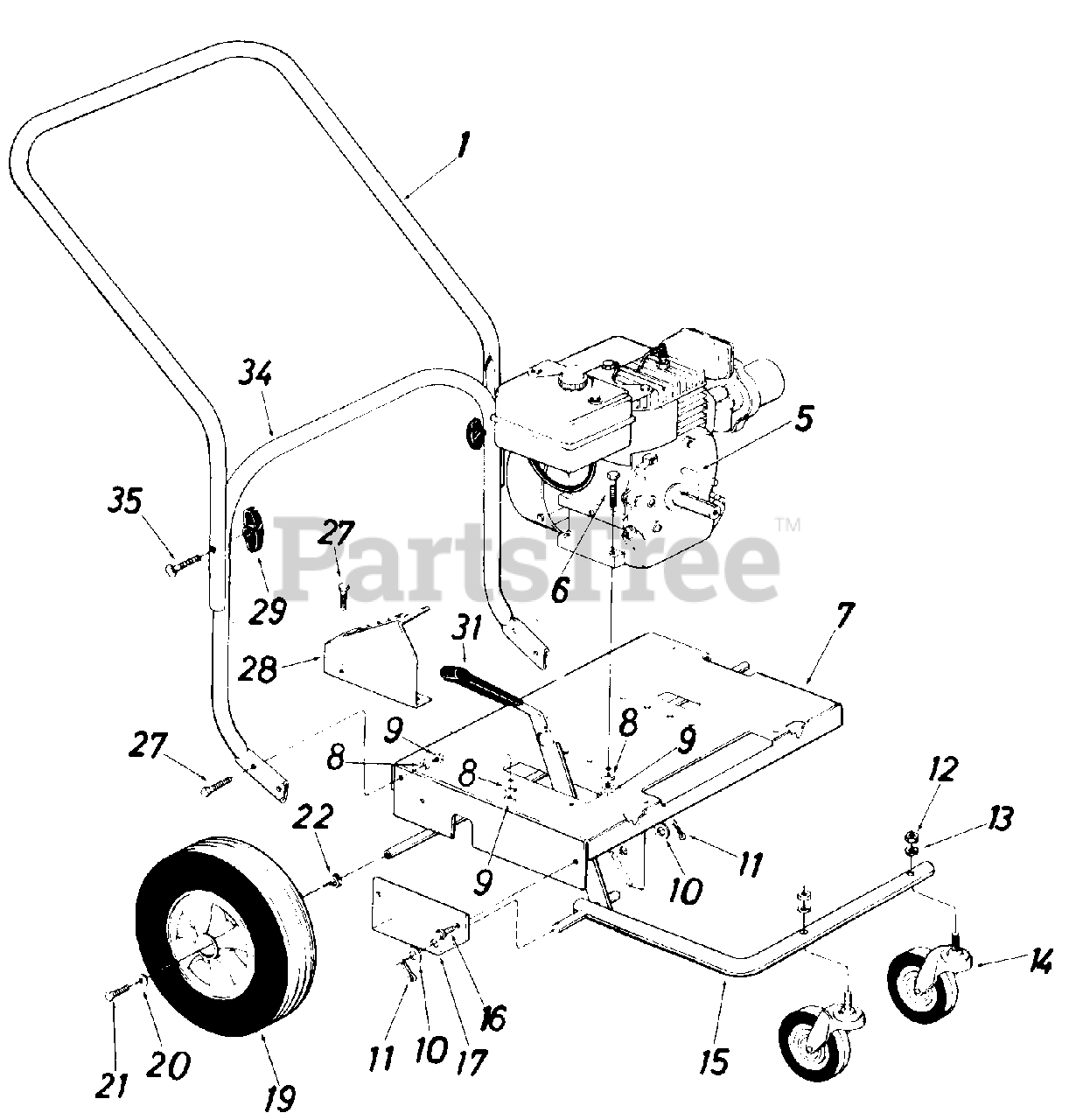

24695S - MTD Walk-Behind Blower (1985) Handles & Deck Parts Diagram

Walk-Behind Blower

Handles & Deck Parts Diagram

  • Title

1

MTD 749-0479

Upper Handle
(Superseded to 749-0784-0637)

$137.99

$

Usually ships in 3-6 days

0

5

MTD 714-0114

Sq. Key 1/4 x 2.00 Lg.*
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

6

MTD 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.*
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 20+

0

7

MTD 14526

Engine Mounting Frame Ass'y.

$

$

Currently unavailable

8

MTD 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

10

MTD 736-0187

Fl.-Wash. .63" I.D. x 1.25" O.D.

$4.99

$

In Stock, Qty 20+

0

11

MTD 1544-009

Cotter Pin 5/32" Dia. x 1.25" Lg.*

$

$

Currently unavailable

12

MTD 712-0206

Hex Nut 1/2-13 Thd.*

$4.99

$

In Stock, Qty 20+

0

13

MTD 736-0921

L.-Wash. 1/2" I.D.*

$4.99

$

In Stock, Qty 8

0

14

MTD 734-1036

Swivel Caster Wheel 5" Dia. x 1.25"

$80.99

$

Usually ships in 3-6 days

0

15

MTD 14571

Caster Arm Ass'y.

$

$

Currently unavailable

16

MTD 710-0726

Hex Wash. Hd. "AB" Tap Scr. 5/16" x .75"

$4.49

$

In Stock, Qty 20+

0

17

MTD 14529

Caster Arm Brk't .

Variations

14529-0637

MTD 14529-0637

BRACKET-CASTER ARM - POWDER BLACK (0637)

$

$

Not available

14529-0638

MTD 14529-0638

BRACKET-CASTER ARM - MTD/TROY-BILT RED (0638)

$

$

Not available

14529-0691

MTD 14529-0691

BRACKET-CASTER ARM - BLACK JACK (0691)

$

$

Not available

14529-0709

MTD 14529-0709

No Longer Available BRACKET-CA - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

19

MTD 734-1035

Wheel Ass'y. Comp. 12" x 3.5" (Plastic)

Note: (692 only)

$118.99

$

Usually ships in 3-6 days

0

MTD 734-1184

Wheel Ass'y. Comp. 10.5" x 4" (Steel)
(Superseded to 634-0147)

$

$

Not available

MTD 741-0313

Bearings
(Superseded to 741-0487C)

Note: (For Steel Wheel)

$7.99

$

In Stock, Qty 20+

0

20

MTD 736-0159

Fl.-Wash. 34" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-0170

Hex Locking Bolt 5/16-24 x .62" Lg.

$6.99

$

In Stock, Qty 8

0

22

MTD 736-0162

Fl.-Wash.

Note: (692 only)

$4.49

$

In Stock, Qty 15

0

27

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

28

MTD 14561

Index Plate

$

$

Currently unavailable

29

MTD 09966

Hand Knob
(Superseded to 720-04072A)

$7.49

$

In Stock, Qty 20+

0

31

MTD 720-0142

Fl.-Grip Vinyl

$3.99

$

Usually ships in 3-6 days

0

34

MTD 749-0481

Lower Handle
(Superseded to 749-0785)

$

$

Not available

35

MTD 710-0487

Carriage Bolt 5/16-18 x 2.0" Lg.

$7.49

$

Usually ships in 3-6 days

0
