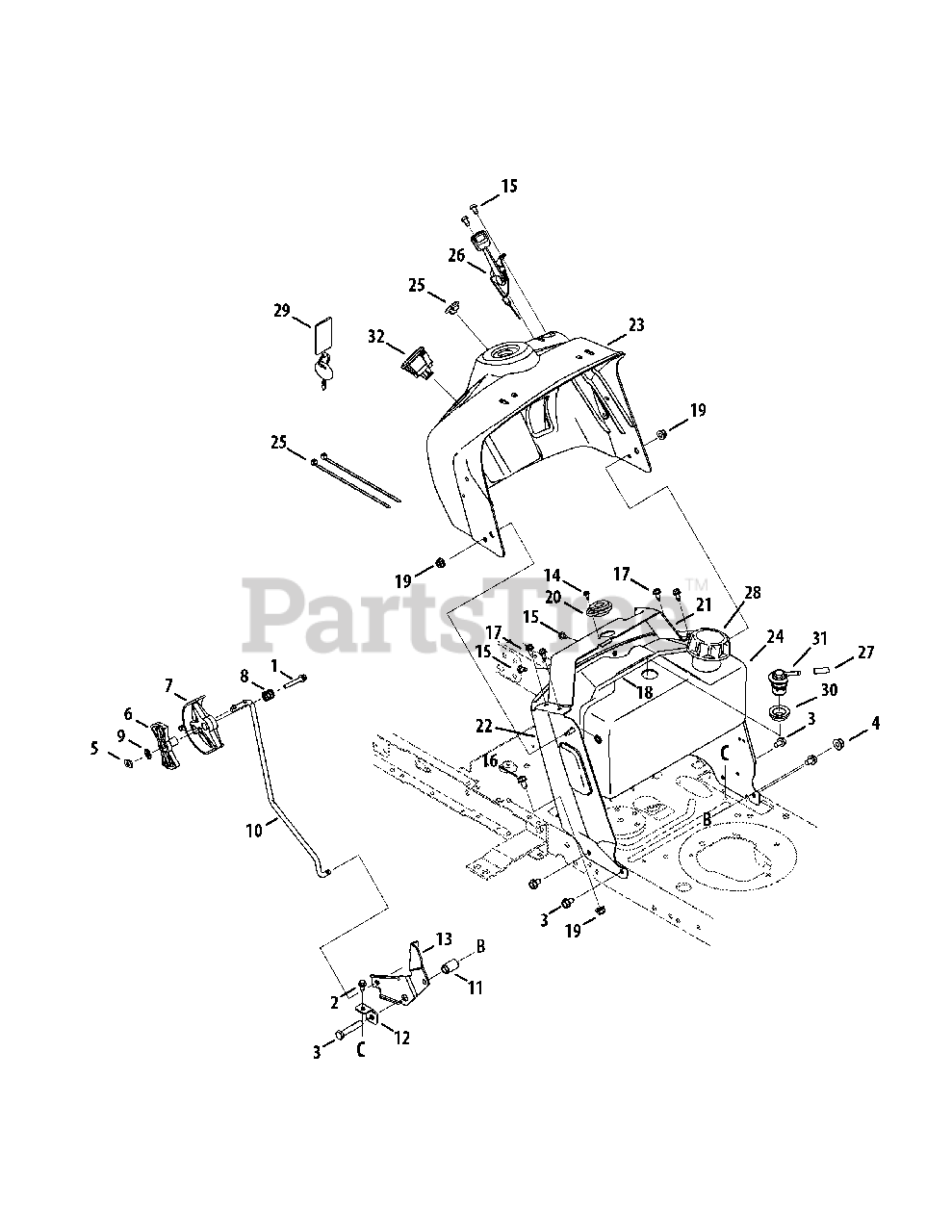

247.203761 (13AP78XS099) - Craftsman T1800 Lawn Tractor (2015) Dash & Fuel Tank Parts Diagram

T1800 Lawn Tractor

Dash & Fuel Tank Parts Diagram

  • Title

1

MTD 710-05237

Hex Head Screw, 1/4-20 x 1.50

$3.99

$

In Stock, only 1 left!

0

2

MTD 710-1652

Self-Tap Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-3144

Hex Head Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

5

MTD 912-0414

Top Lock Weld Nut, 1/4-20
(Superseded to 712-0414)

$4.49

$

In Stock, Qty 14

0

6

MTD 731-07966A

Index Control

$6.49

$

Usually ships in 3-6 days

0

7

MTD 731-09253

Shift Lever

$15.99

$

Usually ships in 3-6 days

0

8

MTD 732-04877

Compression Spring, .685 x .63

$4.49

$

Usually ships in 3-6 days

0

9

MTD 736-3006

Internal Lock Washer, 1/4

$6.49

$

In Stock, only 1 left!

0

10

MTD 747-05398

Speed Control Rod

$11.99

$

In Stock, only 1 left!

0

11

MTD 750-04465C

Flange Spacer, .390 x .671 x 1.095

$4.49

$

Usually ships in 3-6 days

0

12

MTD 783-06823

Speed Latch Tab

$17.99

$

In Stock, only 2 left!

0

13

MTD 683-04766-0637

Transmission Speed Latch, RMC

$12.99

$

Usually ships in 3-6 days

0

14

MTD 910-0224

Screw, #10

$3.99

$

In Stock, only 1 left!

0

15

MTD 710-05070A

Self-Tap Screw, 1/4-20

$6.99

$

In Stock, Qty 12

0

16

MTD 710-0604A

Self-Tap Screw, 5/16-18

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

18

MTD 747-05373

Fuel Tank Clamp Rod

$11.99

$

Usually ships in 3-6 days

0

19

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

20

MTD 741-0587

Steering Column Bearing

$4.49

$

In Stock, Qty 20+

0

21

MTD 783-06785C-0637

Steering Support Bracket

$9.99

$

In Stock, only 1 left!

0

22

MTD 783-06656C-0637

Lower Dash
(Superseded to 783-06656D-0637)

$61.99

$

Usually ships in 3-6 days

0

23

MTD 931-09942A

Upper Dash Panel

$49.99

$

In Stock, only 1 left!

0

24

MTD 951-04295

Fuel Tank, 2 Gallons, EPA
(Superseded to 951-04295A)

$186.99

$

Usually ships in 3-6 days

0

25

MTD 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

26

MTD 946-04622

Throttle/Choke Assembly

$53.99

$

In Stock, only 1 left!

0

27

MTD 751-12089-28

Vent Hose

$8.99

$

In Stock, only 2 left!

0

28

MTD 951-12179B

Fuel Cap
(Superseded to 951-12179C)

$38.99

$

In Stock, Qty 10

0

29

MTD 625-04124

Key Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

30

MTD 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

31

MTD 751-12118

Fuel Rollover Valve

$35.99

$

In Stock, Qty 12

0

32

MTD 925-06119A

Key Switch Module
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0
