247-203B401 - MTD Shredder Vacuum (1997) (Yard-Man) Chain Case Assembly Parts Diagram

Shredder Vacuum

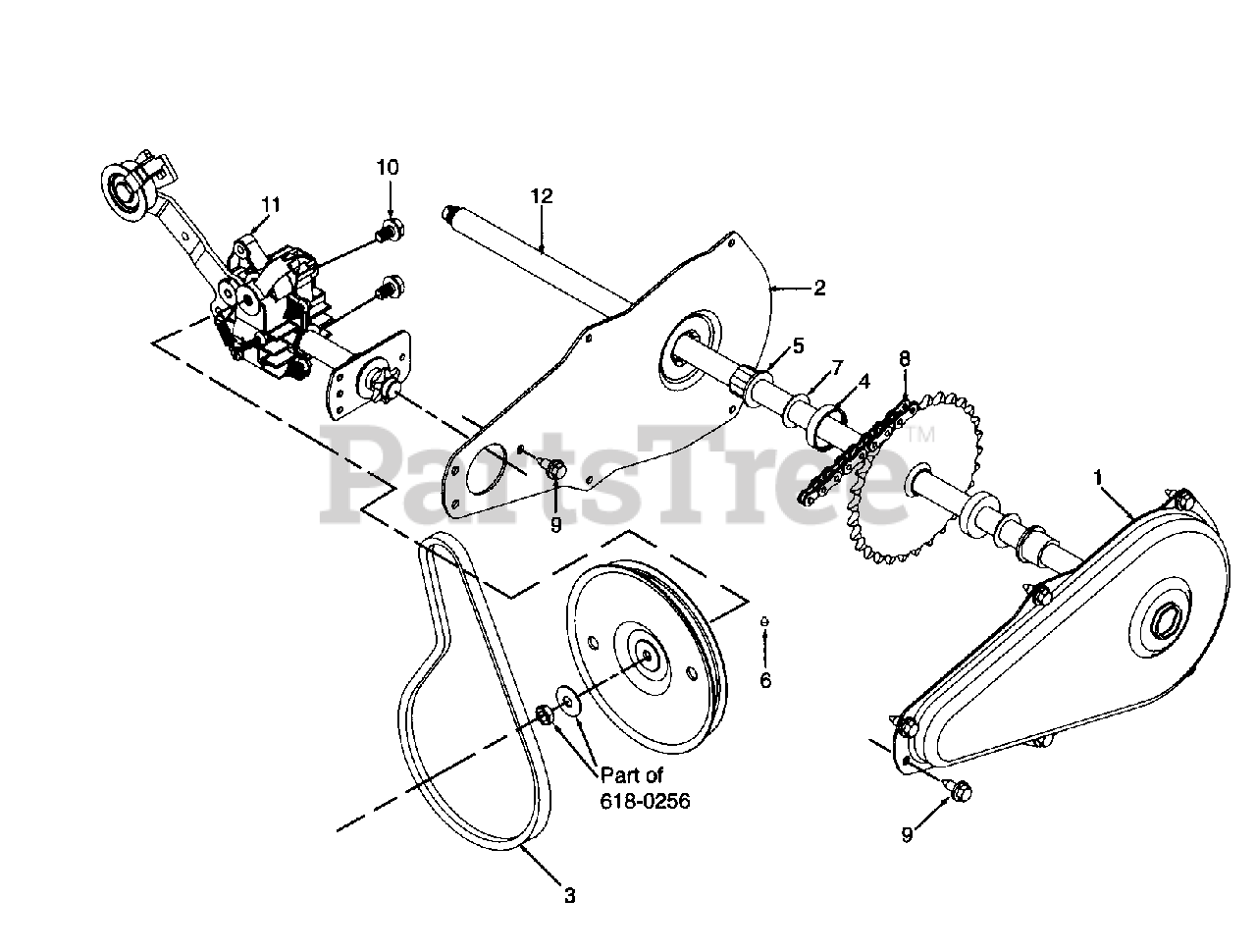

Chain Case Assembly Parts Diagram

  • Title

1

MTD 781-0677

CHAIN CASE LH

Variations

781-0677-0637

MTD 781-0677-0637

CASE CHAIN LH - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

781-0677-0665

MTD 781-0677-0665

CASE CHAIN LH - YARDMAN GREEN (0665)

$47.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

2

MTD 781-0676

CHAIN CASE RH

Variations

781-0676-0637

MTD 781-0676-0637

CASE CHAIN RH - POWDER BLACK (0637)

$77.99

$

Usually ships in 3-6 days

0

781-0676-0665

MTD 781-0676-0665

CASE CHAIN RH - YARDMAN GREEN (0665)

$77.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

3

MTD 754-0457

V-BELT 3/8 x 24.68
(Superseded to 954-0457)

$23.99

$

In Stock, only 2 left!

0

4

MTD 748-0313

SPACER .630 x 1.25 x .290

$3.99

$

Usually ships in 3-6 days

0

5

MTD 741-0413

HEX FLANGE BEARING .631 x .720

$10.99

$

Usually ships in 3-6 days

0

6

MTD 737-0223

BEALENE GREASE
(Superseded to 737-0300A)

$36.99

$

In Stock, Qty 8

0

7

MTD 736-0336

FLAT WASHER 5/8 x 1.00 x .03O
(Superseded to 936-0336)

$4.99

$

In Stock, Qty 20+

0

8

MTD 713-0422

CHAIN #41 x .500
(Superseded to 913-0422)

Note: NEW PART

$30.99

$

Usually ships in 3-6 days

0

9

MTD 710-0896

HEXWASH HD. AB-TAP SCREW 1/4-20 x .625"

$4.49

$

In Stock, Qty 8

0

10

MTD 710-0603

HEX WASH HD. TYPE B SCREW 5/16-18 x .50"

$5.49

$

Usually ships in 3-6 days

0

11

MTD 618-0256

TRANSMISSION ASS'Y. (SEE DETAIL ABOVE)

$492.99

$

Usually ships in 3-6 days

0

12

MTD 611-0063

SHAFT: AXLE ASSEMBLY

Note: NEW PART

$

$

Not available
