247.204000 (17ARCBDS099) - Craftsman ZS6500 Zero-Turn Mower (2017) Electrical Parts Diagram

ZS6500 Zero-Turn Mower

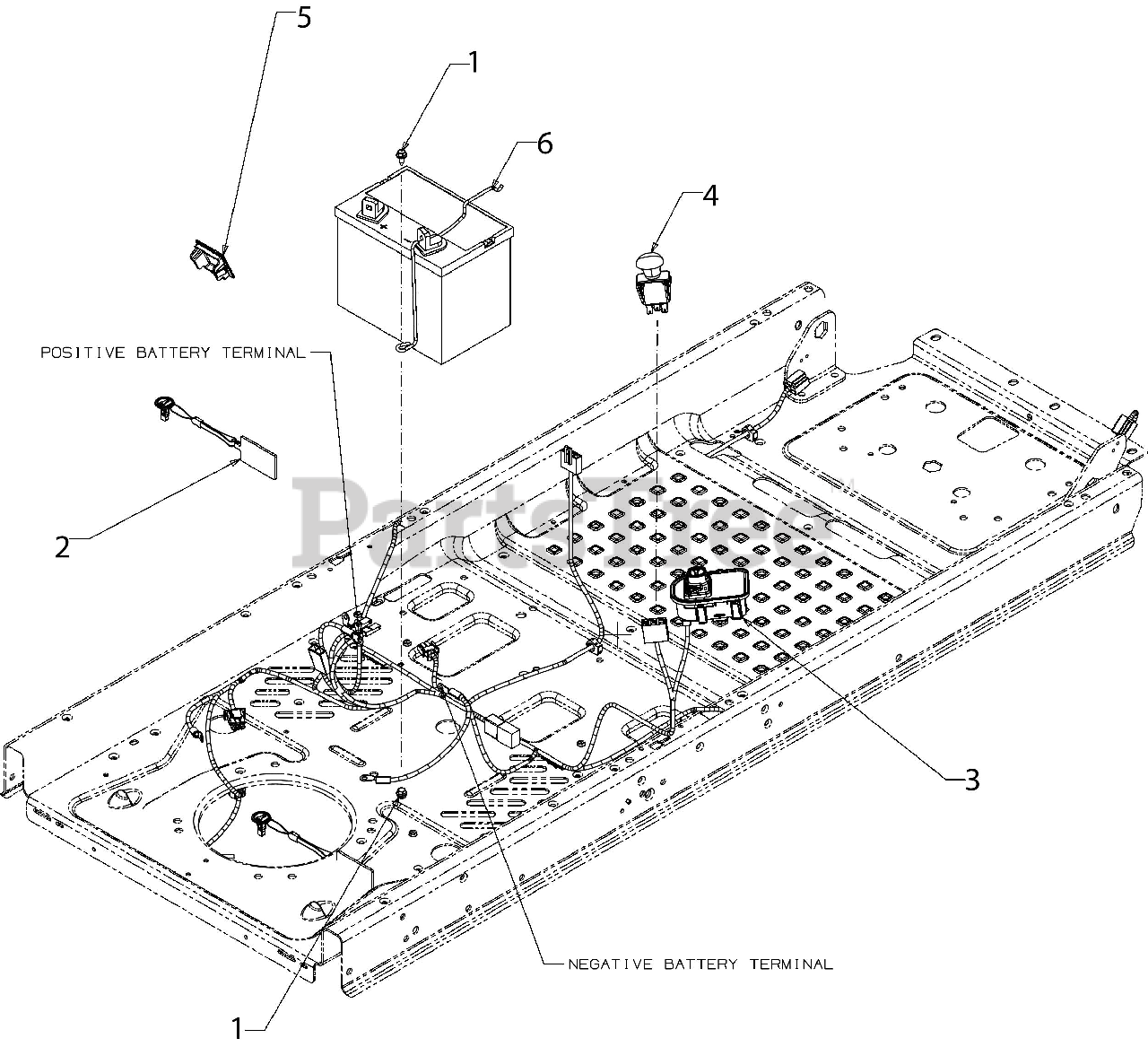

Electrical Parts Diagram

  • Title

1

MTD 710-1652

SCREW 1/4-20X.625

$3.99

$

In Stock, Qty 20+

0

2

MTD 725-06779

PBS KEY
(Superseded to 725-06779C)

$14.99

$

In Stock, only 4 left!

0

3

MTD 925-06872

MODULE-PBS/HRMTR/SVC MNDR/BT
(Superseded to 925-06872A)

$261.99

$

In Stock, only 1 left!

0

4

MTD 925-3233A

PTO SWITCH

$47.99

$

In Stock, Qty 20+

0

5

MTD 731-11495

DASH HOUR METER PLUG
(Superseded to 731-11495A)

$4.99

$

Usually ships in 3-6 days

0

6

MTD 747-06780-0637

BATTERY RETAINER

$10.99

$

In Stock, only 2 left!

0
