247.204150 (17ARCACK099) - Craftsman Z6600 Zero-Turn Mower (2014) Deck Lift Parts Diagram

Z6600 Zero-Turn Mower

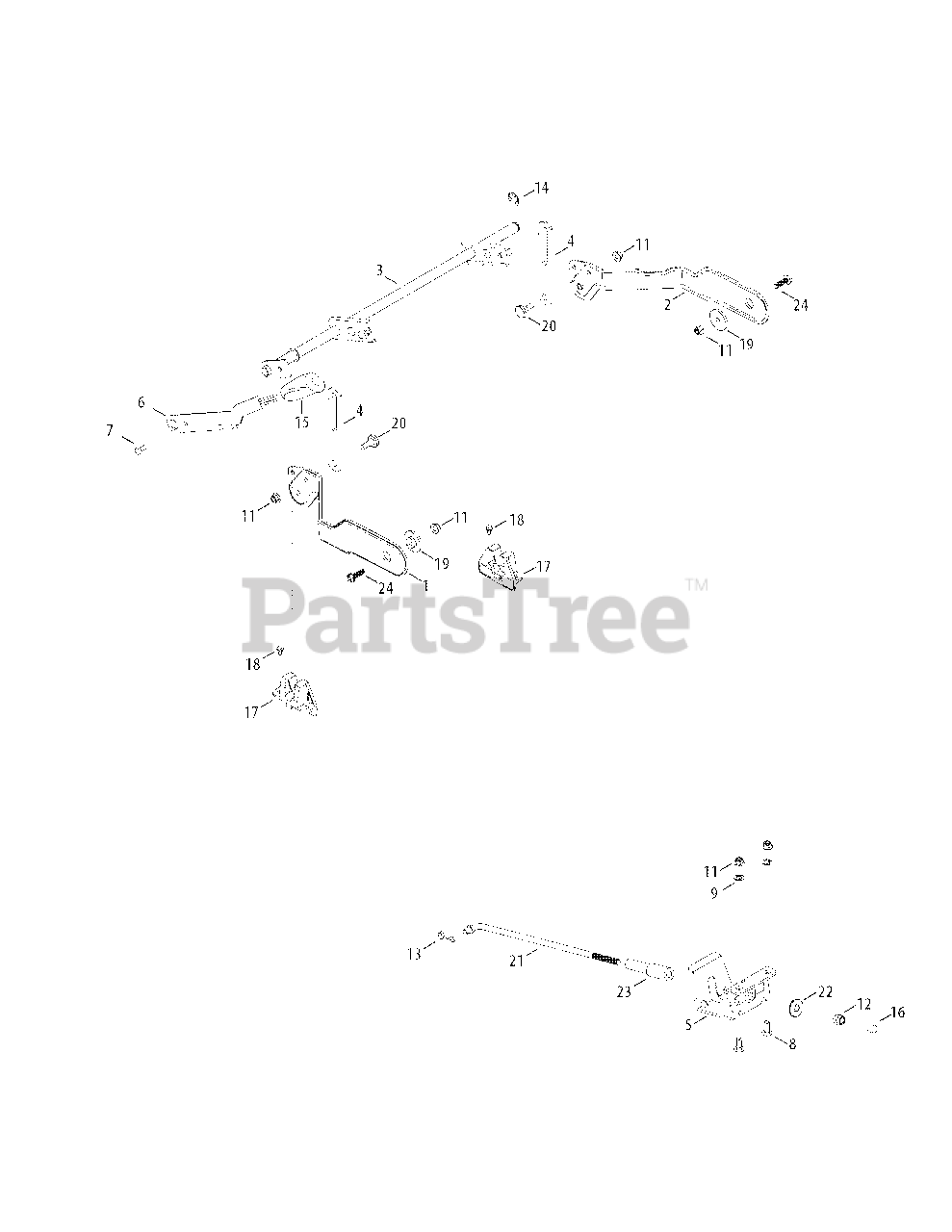

Deck Lift Parts Diagram

  • Title

1

MTD 603-05107A-0637

RH Deck Lift Bracket Assembly
(Superseded to 603-05107B-0637)

$88.99

$

In Stock, Qty 7

0

2

MTD 603-05108A-0637

LH Deck Lift Bracket Assembly
(Superseded to 603-05108B-0637)

$88.99

$

In Stock, Qty 6

0

3

MTD 603-05138

Deck Lift Shaft Assembly
(Superseded to 903-05138)

$90.99

$

Usually ships in 3-6 days

0

4

MTD 703-08591A-0637

Lift Link Plate

$18.99

$

Usually ships in 3-6 days

0

5

MTD 703-08644-0637

Support Rod Mount Bracket
(Superseded to 703-08644A-0637)

$17.99

$

In Stock, Qty 5

0

6

MTD 703-09621

Deck Lift Handle
(Superseded to 703Z09621A)

$13.99

$

In Stock, only 4 left!

0

7

MTD 710-3008

Hex Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0229

Push Nut, 3/8

$3.49

$

In Stock, Qty 20+

0

10

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-05046

Hex Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

13

MTD 714-04043

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

14

MTD 916-0231

E-Ring, .750
(Superseded to 716-0231)

$

$

Not available

15

MTD 720-04139B

Grip

$17.99

$

In Stock, Qty 6

0

16

MTD 726-05009

End Cap

$3.99

$

In Stock, Qty 20+

0

17

MTD 731-08782

Deck Lift Bracket

$8.49

$

Usually ships in 3-6 days

0

18

MTD 738-04278

Shoulder Screw, 1/4-20 x .50

$6.49

$

In Stock, Qty 20+

0

19

MTD 738-05029

Anti-Rotate Shoulder Spacer

$8.99

$

In Stock, Qty 16

0

20

MTD 938-0507B

Shoulder Screw, .500 x .434
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

21

MTD 747-05552B

Front Deck Lift Rod
(Superseded to 747-05552C)

$29.99

$

In Stock, Qty 20+

0

22

MTD 748-04069

Deck Lift Pivot Cup
(Superseded to 748-04069A)

$5.49

$

In Stock, Qty 20+

0

23

MTD 750-05658

Nylon Sleeve, .55 x 4.50

$6.49

$

In Stock, Qty 20+

0

24

MTD 710-04683A

Hex Washer Screw, 3/8-16 x 1.000
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 8

0
