247.204150 (17ARCACK099) - Craftsman Z6600 Zero-Turn Mower (2014) Rear Frame & Bumper Parts Diagram

Z6600 Zero-Turn Mower

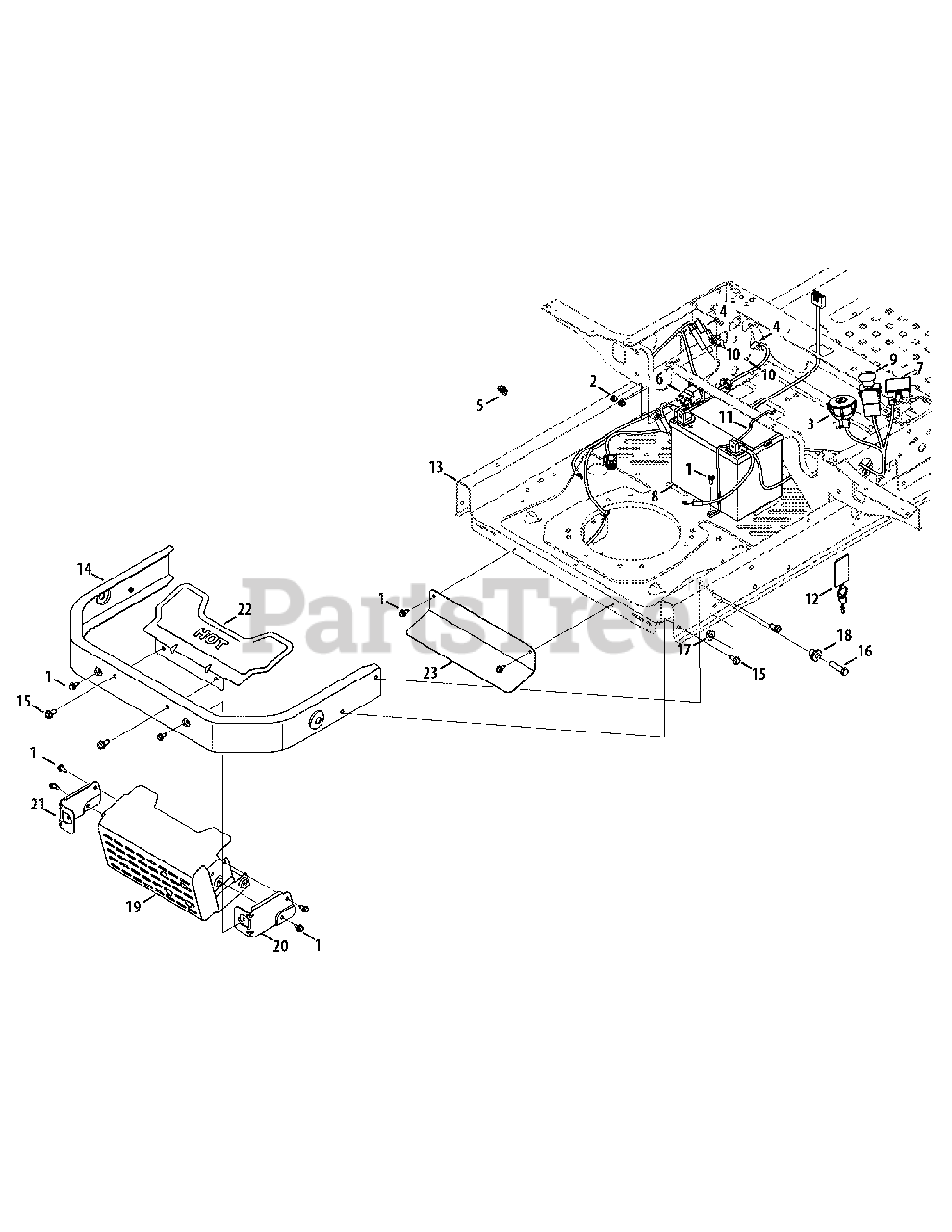

Rear Frame & Bumper Parts Diagram

  • Title

1

MTD 710-0653

Hex Washer Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

2

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

3

MTD 925-04228

Key Switch

$36.99

$

In Stock, Qty 20+

0

4

MTD 725-04363

Interlock Switch

$14.99

$

In Stock, Qty 20+

0

5

MTD 925-06000A

Harness
(Superseded to 925-06000B)

$189.99

$

In Stock, only 1 left!

0

6

MTD 725-06153

Solenoid
(Superseded to 725-06153A)

$39.99

$

In Stock, Qty 20+

0

7

MTD 925-06154

Hour Meter/Service Minder
(Superseded to 925-06170B)

$65.99

$

Usually ships in 3-6 days

0

8

MTD 925-1707D

Battery

$

$

Not available

9

MTD 925-3233

PTO Switch
(Superseded to 925-3233A)

$47.99

$

In Stock, Qty 20+

0

10

MTD 738-04237A

Shoulder Screw

$5.99

$

In Stock, Qty 20+

0

11

MTD 747-05685-0637

Battery Retainer

$16.99

$

In Stock, Qty 5

0

12

MTD 625-04124

Key
(Superseded to 925-1745A)

$15.99

$

In Stock, Qty 20+

0

13

MTD 603-05025-4044

Frame
(Superseded to 703-09578K-4044)

$582.99

$

Usually ships in 3-6 days

0

14

MTD 703-08558A-4044

Bumper
(Superseded to 703-08558B-4044)

$48.99

$

Usually ships in 3-6 days

0

15

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

16

MTD 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

MTD 738-04058

Shoulder Spacer, .38 x 1.0 x .70

$4.49

$

In Stock, Qty 7

0

19

MTD 683-04549-0637

Muffler Shield Assembly
(Superseded to 683-05460A-0637)

$74.99

$

Usually ships in 3-6 days

0

20

MTD 703-08671A-0637

RH Muffler Shield Mount Bracket
(Superseded to 703-08671B-0637)

$7.99

$

Usually ships in 3-6 days

0

21

MTD 703-08695-0637

LH Muffler Shield Mount Bracket
(Superseded to 703-08695A-0637)

$7.99

$

Usually ships in 3-6 days

0

22

MTD 703-09083-0637

Muffler Shield

$29.99

$

Usually ships in 3-6 days

0

23

MTD 703-09195

Lower Heat Shield

$16.99

$

Usually ships in 3-6 days

0
