247.204191 (17ARCACW099) - Craftsman Z6600 Zero-Turn Mower (2015) Drive & Rear Wheels Parts Diagram

Z6600 Zero-Turn Mower

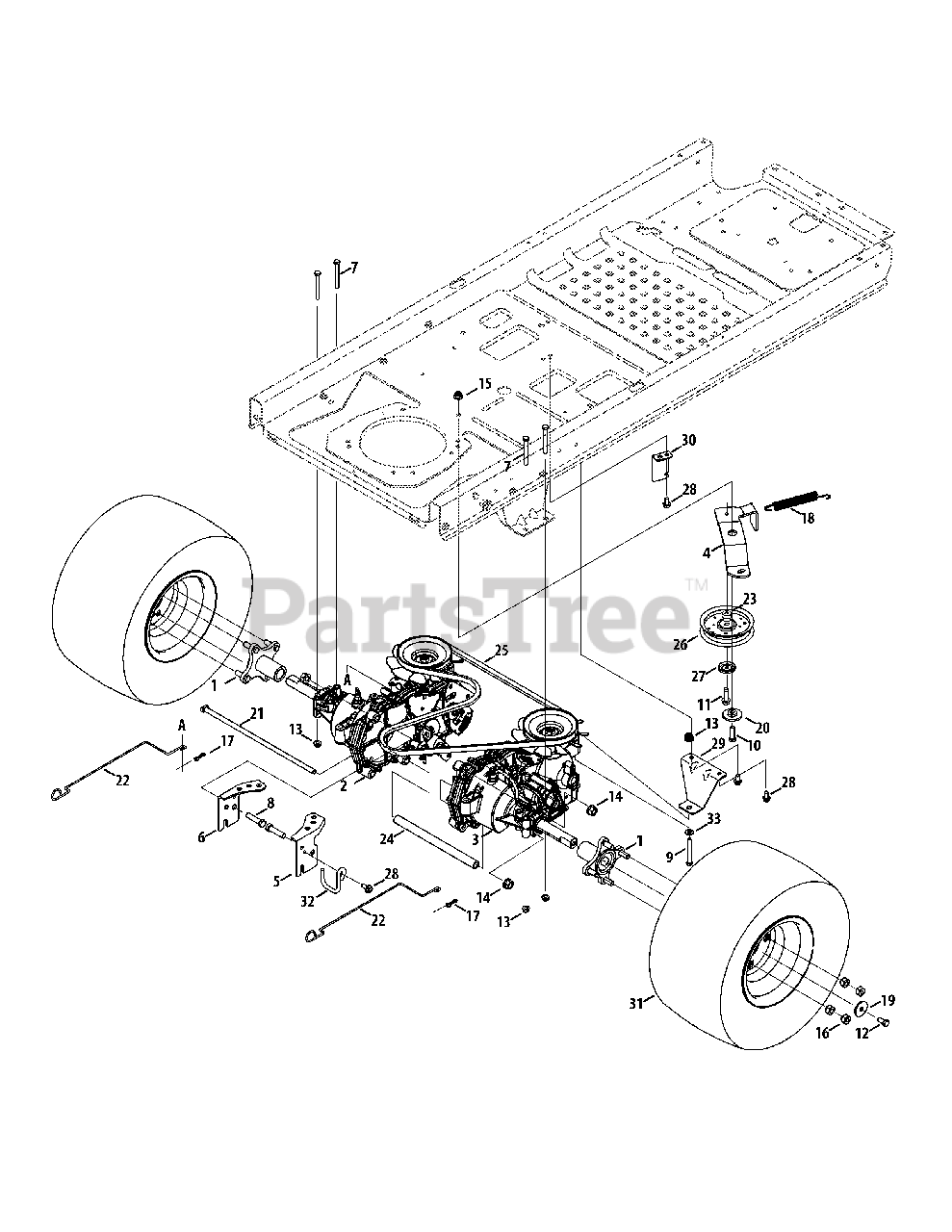

Drive & Rear Wheels Parts Diagram

  • Title

1

MTD 918-04317

Wheel Hub Assembly

$108.99

$

In Stock, Qty 14

0

2

MTD 918-05128A

LH Transmission
(Superseded to 918-05128B)

$1364.99

$

Usually ships in 3-6 days

0

3

MTD 918-05129A

RH Transmission
(Superseded to 918-05129B)

$1364.99

$

Usually ships in 3-6 days

0

4

MTD 703-08605

Hydro idler Bracket

$39.99

$

Usually ships in 3-6 days

0

5

MTD 703-08614A-0637

RH transmission Mount Bracket

$10.99

$

Usually ships in 3-6 days

0

6

MTD 703-08615A-0637

LH transmission Mount Bracket

$10.99

$

Usually ships in 3-6 days

0

7

MTD 710-0176

Hex Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 3 left!

0

8

MTD 710-04092

Hex Screw, 7/16-20 x 1.750

$3.99

$

Usually ships in 3-6 days

0

9

MTD 710-0395

Hex Screw, 5/16-18 x 2.25

$4.49

$

In Stock, Qty 10

0

10

MTD 710-0514

Hex Screw, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-1315

Hex Washer Screw, 3/8-16 x 1.250

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-3119

Hex Screw, 3/8-16 x .750

$6.49

$

In Stock, Qty 8

0

13

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

15

MTD 912-3020

Jam Lock Nut, 3/8-16

$5.99

$

In Stock, Qty 11

0

16

MTD 712-3050

Lug Nut, 7/16-14

$9.49

$

In Stock, Qty 20+

0

17

MTD 714-04040

Cotter Pin

$1.49

$

In Stock, Qty 20+

0

18

MTD 732-04229

Extension Spring.75 x 5.365

$19.99

$

In Stock, Qty 9

0

19

MTD 936-0227

Flat Washer, .390 x 1.500 x .134
(Superseded to 736-0227)

$

$

Not available

20

MTD 738-04162C

Shoulder Spacer, .8840 x .190

$12.99

$

In Stock, Qty 20+

0

21

MTD 738-04192B

Rod, .405 x 14.0

$19.99

$

Usually ships in 3-6 days

0

22

MTD 747-05657A

Bypass Rod
(Superseded to 747-05657B)

$13.99

$

Usually ships in 3-6 days

0

23

MTD 748-05029A

Toggle Lock Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

24

MTD 750-04561A

Tube, .51 x .75 x 10.2

$25.99

$

In Stock, only 2 left!

0

25

MTD 954-04317A

Belt

$50.99

$

In Stock, Qty 20+

0

26

MTD 756-05042

Idler Pulley, 4.25

$28.99

$

In Stock, Qty 20+

0

27

MTD 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

28

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

29

MTD 703-08570-0637

Transmission Mount Bracket

$11.99

$

Usually ships in 3-6 days

0

30

MTD 703-08613A-0637

Spring Mount Bracket

$4.99

$

In Stock, Qty 6

0

31

MTD 634-04128-0961

Wheel Assembly, 18 x 9.5-8
(Superseded to 634-04128-0966)

$266.99

$

Usually ships in 3-6 days

0

32

MTD 747-06070

Clutch Keeper Rod

$7.99

$

Usually ships in 3-6 days

0

33

MTD 936-0264

Flat Washer, .330 x .630 x .064

$6.49

$

In Stock, Qty 11

0
