247.204191 (17ARCACW099) - Craftsman Z6600 Zero-Turn Mower (2015) Floorboard & Fenders Parts Diagram

Z6600 Zero-Turn Mower

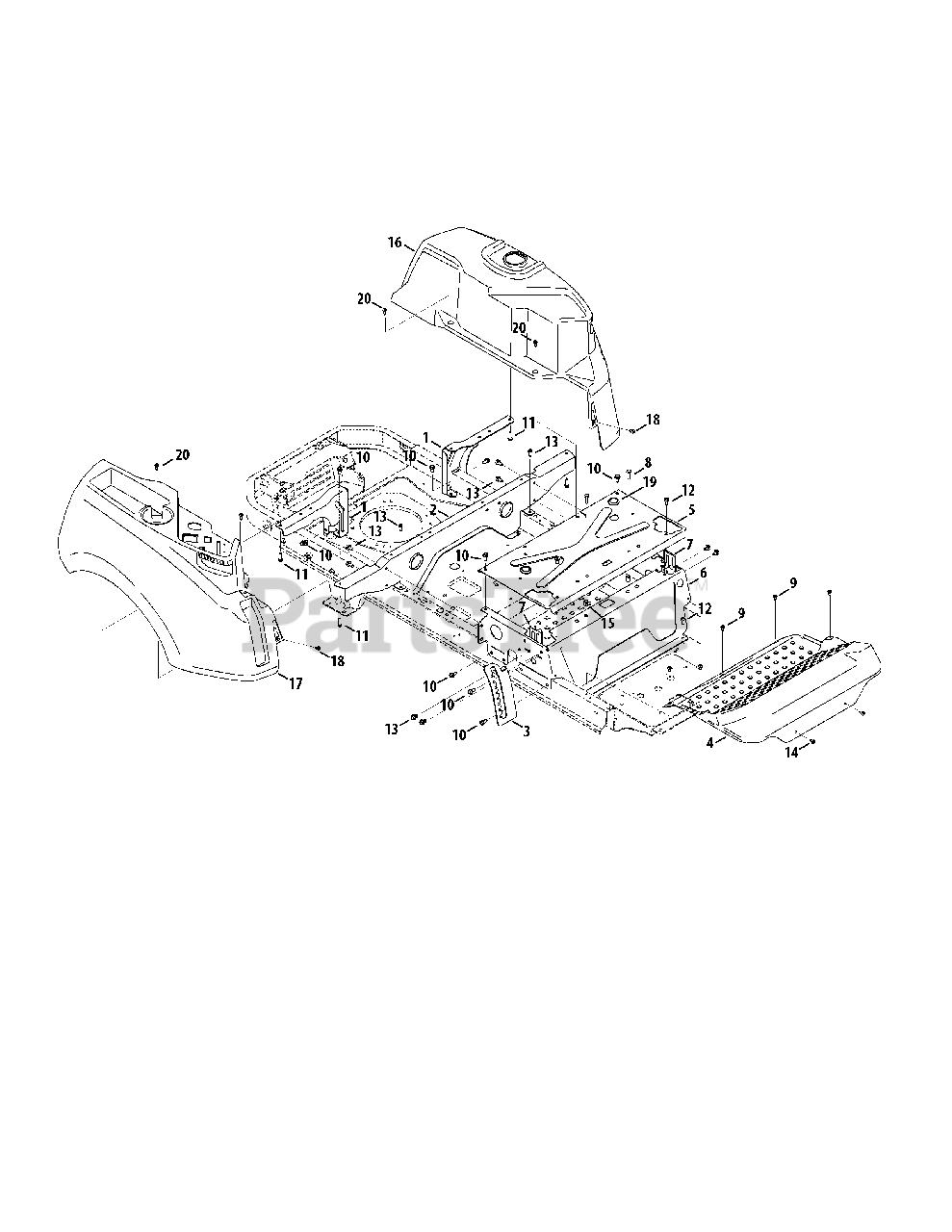

Floorboard & Fenders Parts Diagram

  • Title

1

MTD 703-08720A-4044

Rear Tank Bracket
(Superseded to 703-08720B-4044)

$28.99

$

Usually ships in 3-6 days

0

2

MTD 703-09332A-4044

Rear Seatbox Brace
(Superseded to 703-11179-4044)

$43.99

$

Usually ships in 3-6 days

0

3

MTD 703-08762C

Height Index Bracket

$15.99

$

In Stock, only 1 left!

0

4

MTD 703-08902A-4044

Floor Board

$156.99

$

Usually ships in 3-6 days

0

5

MTD 703-09045D-4044

Seatbox Plate
(Superseded to 703-09045G-4044)

$42.99

$

Usually ships in 3-6 days

0

6

MTD 703-09320-4044

Seat Frame
(Superseded to 703-09320F-4044)

$82.99

$

Usually ships in 3-6 days

0

7

MTD 703-09211A-0637

Lapbar Brace Bracket

$7.49

$

Usually ships in 3-6 days

0

8

MTD 710-0643

Hex Cap Screw, 5/16-18 x 1.00

$6.49

$

In Stock, Qty 20+

0

9

MTD 710-05070A

Screw, 1/4-20 x .5

$6.49

$

In Stock, Qty 12

0

10

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

11

MTD 710-05109

Hex Washer Screw, 5/16-14 x 1.00

$3.49

$

In Stock, Qty 7

0

12

MTD 710-05424

Self Tapping Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 5

0

13

MTD 710-0607

Hex Washer Screw, 5/16-18 x .50

$6.49

$

In Stock, Qty 20+

0

14

MTD 710-06096

Screw, 5/16-18, .750

$6.49

$

Usually ships in 3-6 days

0

15

MTD 728-04068

Nut, 5/16-18

$4.49

$

Usually ships in 3-6 days

0

16

MTD 931-10107

LH Console
(Superseded to 931-10107A)

$108.99

$

Usually ships in 3-6 days

0

17

MTD 931-09459

RH Console

$108.99

$

Usually ships in 3-6 days

0

18

MTD 738-04549A

Shoulder Screw, 1/4-20

$6.99

$

In Stock, only 4 left!

0

19

MTD 726-3045A

Button Plug

$4.49

$

In Stock, Qty 11

0

20

MTD 738-05090

Shoulder Screw, .368 x .115, M6-1

$2.99

$

In Stock, Qty 20+

0
