247.204201 (17ASDALB099) - Craftsman Z8200 Zero-Turn Mower (2015) Mower Deck Parts Diagram

Z8200 Zero-Turn Mower

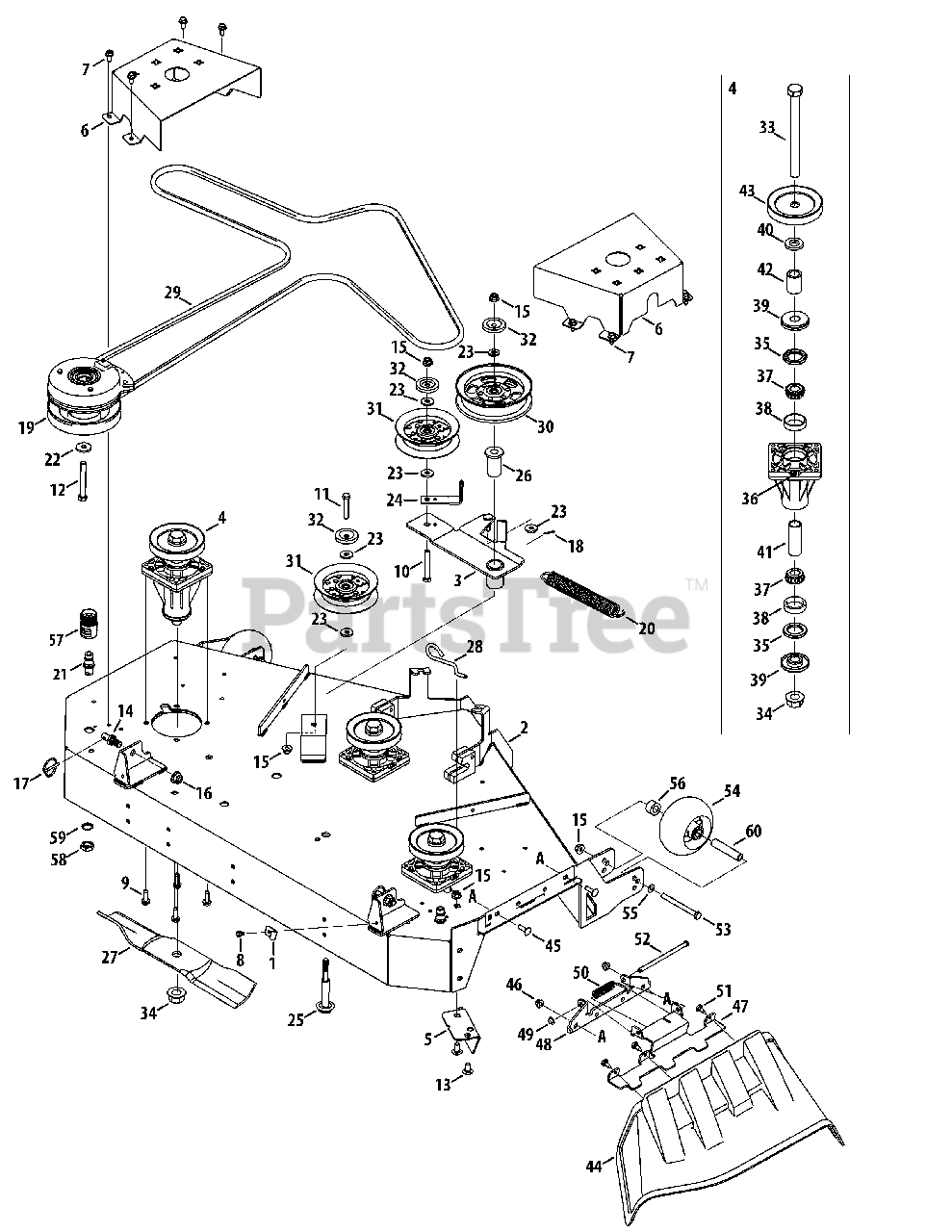

Mower Deck Parts Diagram

  • Title

1

MTD 96606

Bracket, Hook Retainer

$6.99

$

In Stock, Qty 12

0

2

MTD 603-05097-4028

48" Deck
(Superseded to 903-05097C-4028)

$1164.99

$

Usually ships in 3-6 days

0

3

MTD 903-05102A

Deck Idler Assembly
(Superseded to 903-05265)

$201.99

$

Usually ships in 3-6 days

0

4

MTD 918-06994

Spindle Assembly
(Superseded to 918-06994A)

$195.99

$

In Stock, Qty 20+

0

5

MTD 703-09435-0637

Chute Baffle

$18.99

$

Usually ships in 3-6 days

0

6

MTD 703-09492A-4028

Belt Cover

$

$

Currently unavailable

7

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

8

MTD 710-0599

Hex Washer Screw, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0817

Hex Washer Screw, 5/16-18 x 1.250

$6.49

$

In Stock, Qty 20+

0

10

MTD 710-0859

Hex Cap Screw, 3/8-16 x 2.50

$6.49

$

In Stock, Qty 20+

0

11

MTD 710-3144

Hex Cap Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-3157A

Screw, 7/16-20 x 3.25

$9.99

$

In Stock, Qty 12

0

13

MTD 710-3178

Carriage Screw, 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

14

MTD 711-06200

Pin, Shoulder Lock, .500
(Superseded to 711-06200B)

$5.99

$

Usually ships in 3-6 days

0

15

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-04150

Flange Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

17

MTD 753-04070

Pin, Lynch x .1875

$9.49

$

In Stock, Qty 20+

0

18

MTD 914-0507

Cotter Pin 3/32" Dia. x .75 Lg.

$4.49

$

In Stock, Qty 19

0

19

MTD 917-05188

Electric PTO Clutch

$448.99

$

Usually ships in 3-6 days

0

20

MTD 732-04927

Extension Spring, 1.25 OD x 1.751

$21.99

$

In Stock, Qty 10

0

21

MTD 737-04003D

Deck Water Nozzle

$21.99

$

In Stock, Qty 18

0

22

MTD 736-0322

Flat Washer, .450 x 1.25 x .164

$8.49

$

In Stock, Qty 20+

0

23

MTD 936-3004

Flat Washer, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

24

MTD 783-08027-0637

Belt Guard Bracket

$20.99

$

Usually ships in 3-6 days

0

25

MTD 738-05049A

Shoulder Boult, .625 x 2.12, 3/8-16

$12.99

$

In Stock, Qty 8

0

26

MTD 741-05056

Shoulder Spacer, 1.055 x .627 x 2.292

$11.99

$

In Stock, only 4 left!

0

27

MTD 942-04417

Blade, 17.00

$28.99

$

In Stock, Qty 20+

0

28

MTD 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.49

$

Usually ships in 3-6 days

0

29

MTD 954-05012

V-Belt
(Superseded to 954-05012A)

$80.99

$

In Stock, Qty 9

0

30

MTD 756-05053

Idler Pulley, 5.00 Dia.
(Superseded to 756-05053A)

$78.99

$

In Stock, only 2 left!

0

31

MTD 756-05062

Idler Pulley, 4.00 Dia

$63.99

$

In Stock, only 1 left!

0

32

MTD 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

33

MTD 710-06120

Hex Cap Screw, 3/4-16 x 8.25

$16.99

$

In Stock, only 4 left!

0

34

MTD 712-3078

Nut, 3/4-16, Flangelock

$9.49

$

In Stock, Qty 20+

0

35

MTD 921-3018A

Oil Seal

$7.99

$

In Stock, Qty 20+

0

36

MTD 937-3000

Grease Fitting

$4.49

$

In Stock, Qty 20+

0

37

MTD 941-04089

Cone Bearing
(Superseded to 941-04298)

$15.99

$

In Stock, Qty 20+

0

38

MTD 941-04091

Cup Bearing
(Superseded to 941-04299)

$6.49

$

In Stock, Qty 20+

0

39

MTD 748-3065A

Spindle Spacer

$12.99

$

In Stock, Qty 20+

0

40

MTD 750-05553

Spacer, .812 ID x .218 LG

$9.49

$

In Stock, Qty 20+

0

41

MTD 750-06139

Spacer, .78 x 1.00 x 2.895

$10.99

$

Usually ships in 3-6 days

0

42

MTD 750-06145

Spacer, .792 x 1.20 x 1.628

$5.99

$

Usually ships in 3-6 days

0

43

MTD 756-3089

V-Type Pulley

$33.99

$

In Stock, Qty 20+

0

44

MTD 631-05176

Discharge Chute Assembly
(Superseded to 631-05544)

$101.99

$

In Stock, only 3 left!

0

45

MTD 710-0276

Carriage Bolt, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

46

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

47

MTD 703-09625A-0637

Chute Bracket

$48.99

$

Usually ships in 3-6 days

0

48

MTD 703-09626

Chute Bracket
(Superseded to 703-09626A)

Variations

MTD 703-09626-0637

BRKT-CHUTE MTG - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

49

MTD 726-04009

Push Cap
(Superseded to 726-04009A)

$6.99

$

Usually ships in 3-6 days

0

50

MTD 732-05128A

Torsion Spring

$3.99

$

In Stock, only 1 left!

0

51

MTD 738-04549A

Shoulder Screw, 1/4-20

$6.99

$

In Stock, only 4 left!

0

52

MTD 747-06318

Chute Rod
(Superseded to 747-06318A)

$9.99

$

In Stock, only 1 left!

0

53

MTD 710-0411

Hex Cap Screw, 3/8-16 x 4.0

$7.99

$

In Stock, Qty 20+

0

54

MTD 734-04155

Deck Ball Wheel, 5.0

$19.99

$

In Stock, Qty 20+

0

55

MTD 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

56

MTD 750-06193

Shoulder Spacer, .500 x 3.09

$2.99

$

In Stock, Qty 18

0

57

MTD 921-04041

Water Nozzle Adapter

$21.99

$

In Stock, Qty 20+

0

58

MTD 912-0641

Hex Nut, M-16 x 1.5
(Superseded to 712-0641)

$5.99

$

In Stock, Qty 20+

0

59

MTD 936-0760

Lock Washer, 17 x 23.8 x 1.95

$3.99

$

In Stock, Qty 14

0

60

MTD 750-06199

Spacer, .380 x .495 x 3.450

$7.99

$

In Stock, only 4 left!

0
