247.204221 (17ASDALC099) - Craftsman Z8400 Zero-Turn Mower (2015) Frame & Bumper Parts Diagram

Z8400 Zero-Turn Mower

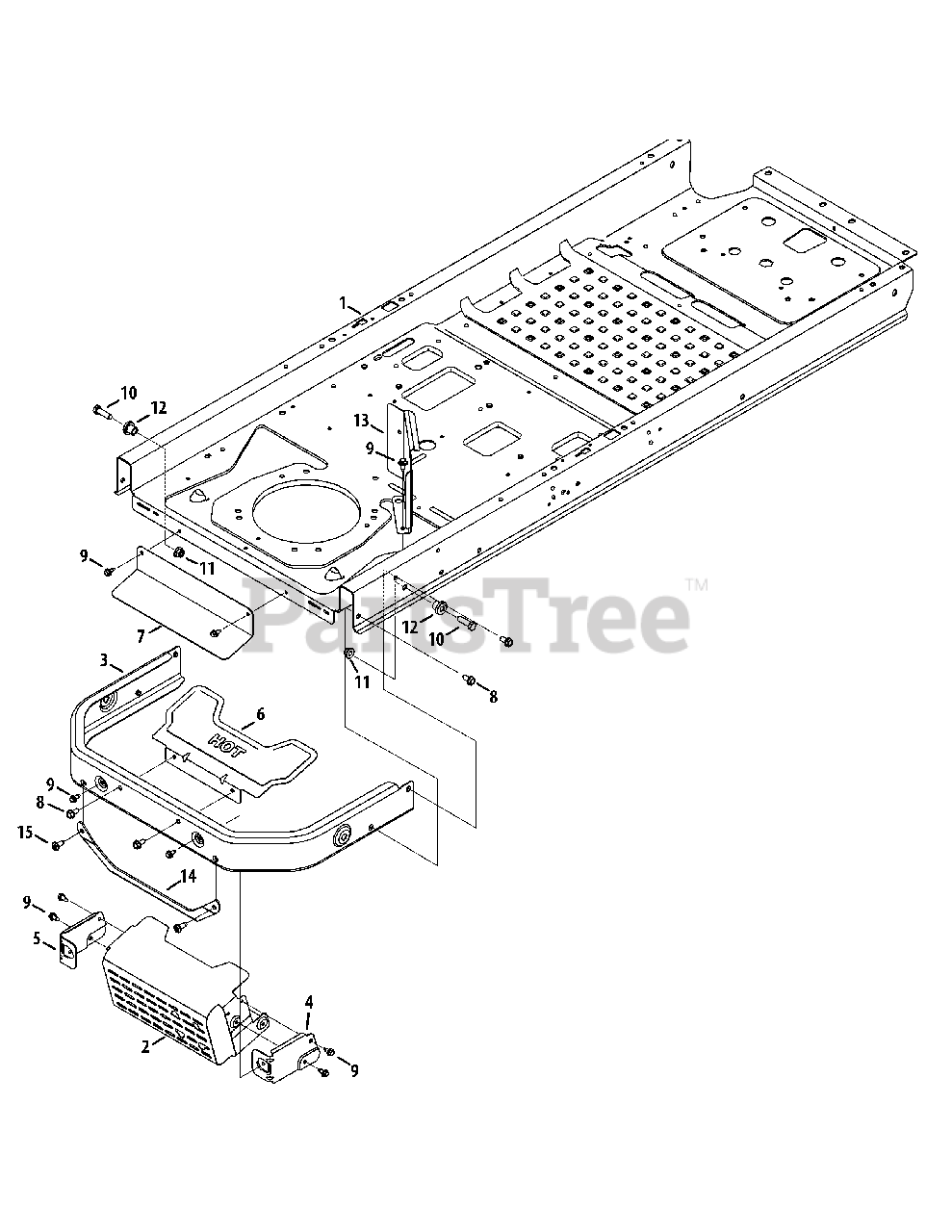

Frame & Bumper Parts Diagram

  • Title

1

MTD 603-04982-0691

Frame Assembly
(Superseded to 603-05300-0691)

$1784.99

$

Usually ships in 3-6 days

0

2

MTD 603-05156A-0691

Muffler Shield Assembly

$93.99

$

Usually ships in 3-6 days

0

3

MTD 703-08558B-0691

Rear Bumper

$55.99

$

Usually ships in 3-6 days

0

4

MTD 703-08671A-0691

Muffler Mounting Shield Bracket, RH
(Superseded to 703-08671B-0691)

$8.49

$

Usually ships in 3-6 days

0

5

MTD 703-08695-0691

Muffler Mounting Shield Bracket, LH
(Superseded to 703-08695A-0637)

$8.99

$

Usually ships in 3-6 days

0

6

MTD 703-09083-0691

Muffler Shield
(Superseded to 703-09083-0637)

$33.99

$

In Stock, only 1 left!

0

7

MTD 703-09195

Lower Heat Shield

$19.99

$

Usually ships in 3-6 days

0

8

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-3005

Hex Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

12

MTD 738-04058

Shoulder Spacer, .38 x 1.0 x .70

$4.99

$

In Stock, only 2 left!

0

13

MTD 703-09611

Engine Heat Shield
(Superseded to 703-09611A)

$24.99

$

Usually ships in 3-6 days

0

14

MTD 703-09884-0691

Rear Muffler Shield Bracket

$28.99

$

Usually ships in 3-6 days

0

15

MTD 710-06096

Screw, Self-Tapping, 5/16-18, 0.750

$7.49

$

Usually ships in 3-6 days

0
