247.204221 (17ASDALC099) - Craftsman Z8400 Zero-Turn Mower (2016) Drive Parts Diagram

Z8400 Zero-Turn Mower

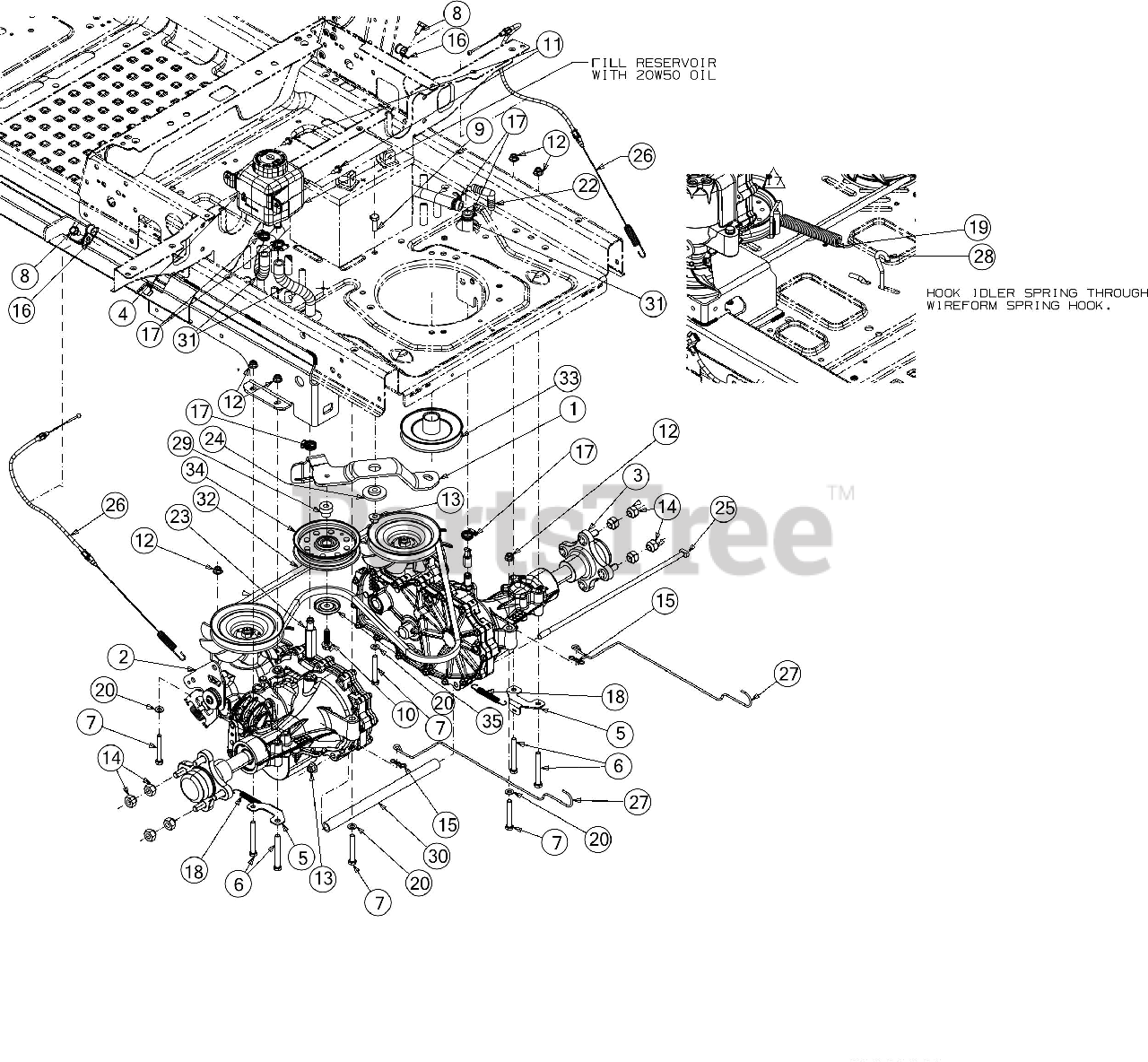

Drive Parts Diagram

  • Title

1

MTD 903-05256

IDLER BRACKET ASSEMBLY
(Superseded to 603Z05256)

$42.99

$

In Stock, only 2 left!

0

2

MTD 918-06020B

HYDRO TRANSMISSION ASSEMBLY (LH)

$1796.99

$

Usually ships in 3-6 days

0

3

MTD 918-06021B

HYDRO TRANSMISSION ASSEMBLY (RH)

$1796.99

$

Usually ships in 3-6 days

0

4

MTD 631-04286

HYDRAULIC TANK

$41.99

$

In Stock, Qty 6

0

5

MTD 703-09323-0691

BRAKE RETURN BRACKET
(Superseded to 703-09323-0637)

$9.99

$

In Stock, only 1 left!

0

6

MTD 710-0176

HEX SCREW 5/16-18 X 2.75

$4.49

$

In Stock, only 2 left!

0

7

MTD 710-0395

HEX SCREW 5/16-18 X 2.25 GR5

$4.99

$

In Stock, Qty 6

0

8

MTD 710-04484

SCREW 5/16-18 X .750

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0514

SCREW 3/8-16 X 1 GR5

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-1315

SCREW 3/8-16 X1.250

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-3050

LUG NUT 7/16-14

$9.99

$

In Stock, Qty 20+

0

15

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

16

MTD 726-0272

CLAMP

$7.49

$

Usually ships in 3-6 days

0

17

MTD 726-05015

HOSE CLAMP .75 ID

$6.49

$

Usually ships in 3-6 days

0

18

MTD 732-04488

EXTENSION SPRING .38 OD X 3.25 LG

$6.49

$

In Stock, Qty 20+

0

19

MTD 732-05388

EXTENSION SPRING .75 DIA X 5.87
(Superseded to 732-05559)

$14.99

$

In Stock, Qty 6

0

20

MTD 936-0264

FLAT WASHER

$6.99

$

In Stock, Qty 10

0

22

MTD 737-04342

90 DEGREE NYLON FITTING

$8.99

$

Usually ships in 3-6 days

0

23

MTD 737-05023

EXTENSION FITTING 9/16-18

$19.99

$

Usually ships in 3-6 days

0

24

MTD 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

25

MTD 738-04251A

SUPPORT TUBE ROD

$14.99

$

Usually ships in 3-6 days

0

26

MTD 946-05068

PARK BRAKE CABLE

$34.99

$

In Stock, only 1 left!

0

27

MTD 747-05657A

HYDRO BYPASS ROD
(Superseded to 747-05657B)

$14.99

$

Usually ships in 3-6 days

0

28

MTD 747-06074

IDLER SPRING HOOK

$23.99

$

Usually ships in 3-6 days

0

29

MTD 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

30

MTD 750-06147A

TRANSMISSION SPACER .75OD X 11.31

$23.99

$

Usually ships in 3-6 days

0

31

MTD 751-0588-30

FUEL LINE 1/2 ID"

$43.99

$

Usually ships in 3-6 days

0

32

MTD 954-04317A

TRANSMISSION DRIVE BELT A X 67

$50.99

$

In Stock, Qty 20+

0

33

MTD 756-04494A

TRANSMISSION PULLEY
(Superseded to 756-04494C)

$35.99

$

Usually ships in 3-6 days

0

34

MTD 756-05042

IDLER PULLEY 4.25 DIA

$31.99

$

In Stock, Qty 20+

0

35

MTD 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0
