247.204390 (131QA1ZT099) - Craftsman T8600 Lawn Tractor (2016) Steering Parts Diagram

T8600 Lawn Tractor

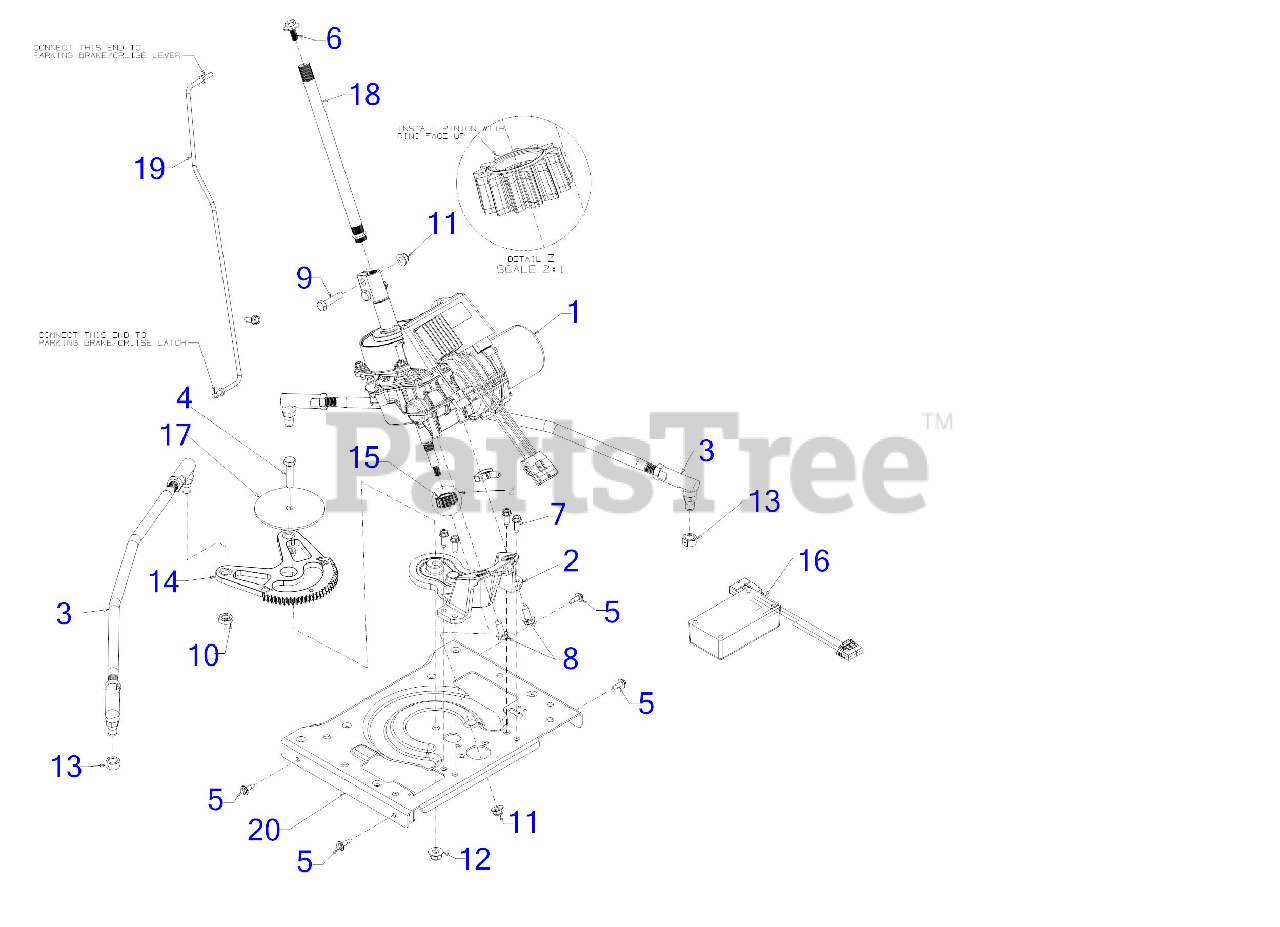

Steering Parts Diagram

  • Title

1

MTD 918-07167

POWER STEERING TRANSMISSION ASSEMBLY

Note: (See Separate Breakdown)

$1267.99

$

Usually ships in 3-6 days

0

2

MTD 919-05174

STEERING MOUNTING HOUSING ASSEMBLY

$125.99

$

Usually ships in 3-6 days

0

3

MTD 947-05058

STEERING TIE ROD
(Superseded to 947-05058A)

$55.99

$

In Stock, only 2 left!

0

3

MTD 712-3029

NUT

Note: (Not Shown)

$7.49

$

In Stock, Qty 8

0

3

MTD 723-05013

BALL JOINT 7/16-20

Note: (Not Shown)

$35.99

$

Usually ships in 3-6 days

0

4

MTD 710-0520

SCREW 3/8-16 x 1.50

$4.99

$

In Stock, Qty 20+

0

5

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-06154B

SCREW 5/16-24 x .85 GR5

$4.99

$

In Stock, only 2 left!

0

7

MTD 710-0642

SCREW 1/4-20 x .750

$4.99

$

In Stock, Qty 20+

0

8

MTD 710-1260A

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-3083

BOLT 5/16-18X1.375 GR5

$4.99

$

Usually ships in 3-6 days

0

10

MTD 912-0240

JAM NUT 7/16-20

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-05167

HEX LOCK NUT 7/16-20

$5.49

$

Usually ships in 3-6 days

0

14

MTD 717E05334A

STEERING SEGMENT GEAR
(Superseded to 717-05334B)

$86.99

$

Usually ships in 3-6 days

0

15

MTD 717-05364A

STEERING PINION GEAR 13T
(Superseded to 717-05364B)

$18.99

$

Usually ships in 3-6 days

0

16

MTD 925-06502

VOLT PROTECTOR HARNESS EPS PURPLE

$101.99

$

Usually ships in 3-6 days

0

17

MTD 736-05125A

FLAT WASHER .385 x 3.75 x .120 THK

$9.99

$

In Stock, only 2 left!

0

18

MTD 738-05062

STEERING SHAFT 10.28

$

$

Not available

19

MTD 747-06582

CRUISE/BRAKE ROD

$17.99

$

Usually ships in 3-6 days

0

20

MTD 783-08386D

STEERING MOUNTING PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

783-08386D-0637

MTD 783-08386D-0637

PLT-STEERING MTG - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0
