247.204420 (13AQA1ZT099) - Craftsman T8200 Lawn Tractor (2015) Deck Lift Parts Diagram

T8200 Lawn Tractor

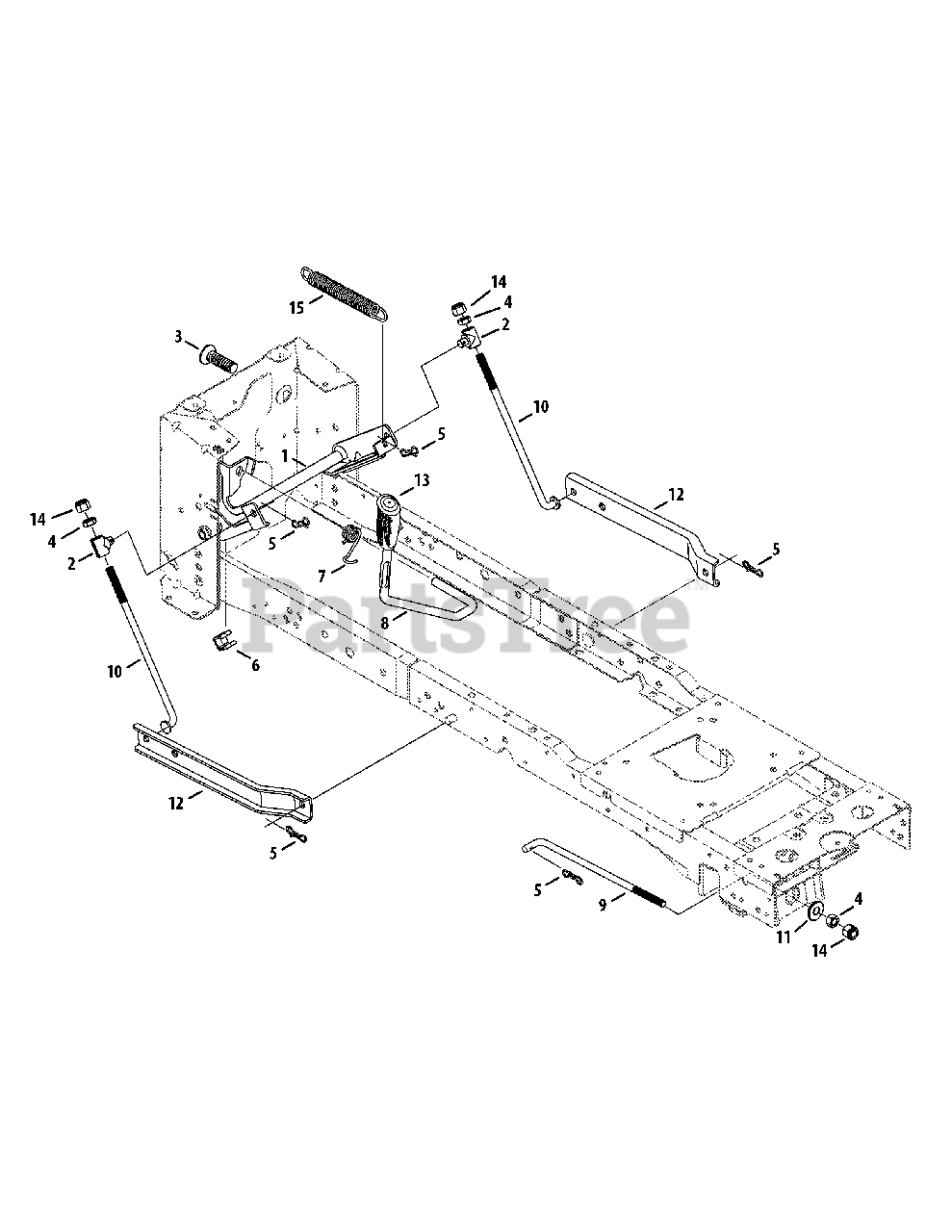

Deck Lift Parts Diagram

  • Title

1

MTD 983-05077

Shaft Assembly, Lift

$68.99

$

In Stock, only 1 left!

0

2

MTD 711-06143A

Ferrule, .510 x .496

$12.99

$

In Stock, only 3 left!

0

3

MTD 711-06346A

Spring Insert

$10.99

$

Usually ships in 3-6 days

0

4

MTD 912-3048

Nut, Jam, 1/2-13
(Superseded to 712-3048)

$4.49

$

In Stock, Qty 20+

0

5

MTD 714-05005

Bow-Tie Cotter Pin

$4.49

$

In Stock, Qty 20+

0

6

MTD 731-09629A

Spacer, .76 ID x .93 LG

$3.99

$

Usually ships in 3-6 days

0

7

MTD 732-05086A

Torsion Spring

$5.99

$

Usually ships in 3-6 days

0

8

MTD 747-06186A

Deck Lift Handle

$29.99

$

In Stock, only 3 left!

0

9

MTD 747-06247B

Deck Lift Rod
(Superseded to 747-06247C)

$18.99

$

In Stock, Qty 20+

0

10

MTD 747-06392A

Lift Adjustment Link

$17.99

$

In Stock, Qty 15

0

11

MTD 748-04069

Pivot Cup
(Superseded to 748-04069A)

$5.49

$

In Stock, Qty 20+

0

12

MTD 783-08280

Rear Lift Arm
(Superseded to 783-13812)

Variations

MTD 783-08280-0637

Lift Link, Powder Black - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

13

MTD 720-05087

Grip

$12.99

$

In Stock, only 3 left!

0

14

MTD 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

15

MTD 732-05241

Lift Assist Spring
(Superseded to 732-05241A)

$19.99

$

In Stock, only 1 left!

0
