247.204420 (13AQA1ZT099) - Craftsman T8200 Lawn Tractor (2015) Front Axle Parts Diagram

T8200 Lawn Tractor

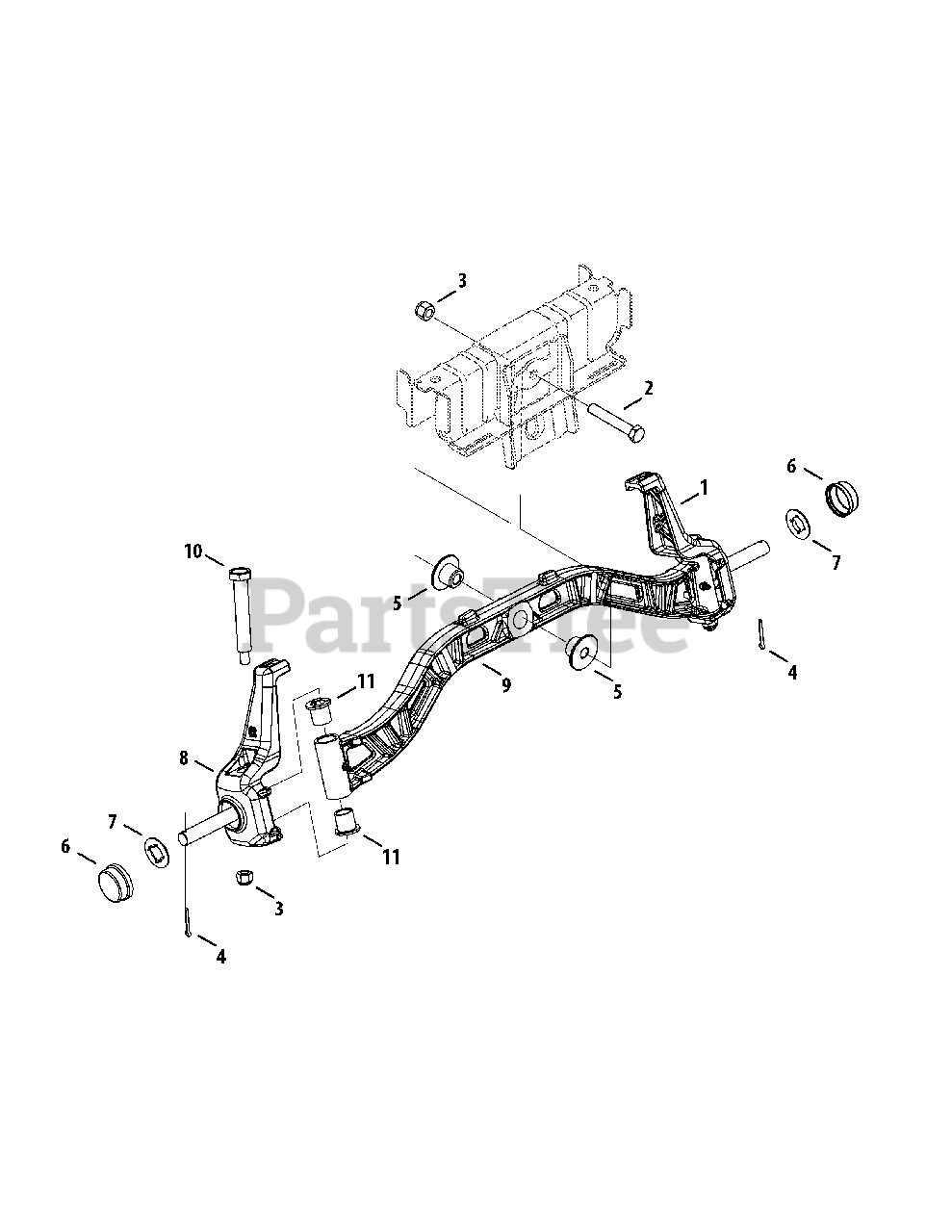

Front Axle Parts Diagram

  • Title

1

MTD 619-05043-4028

Steering Axle Assembly, LH
(Superseded to 619-05177-4028)

$215.99

$

Usually ships in 3-6 days

0

2

MTD 710-0182

Hex Cap Screw, 1/2-13 x 3.00
(Superseded to 710-0182A)

$7.49

$

In Stock, only 2 left!

0

3

MTD 712-3083

Nut, Hex Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

4

MTD 714-0162

Pin, Cotter, 5/32, 1.25

$4.99

$

In Stock, Qty 20+

0

5

MTD 738-05056

Shoulder Spacer, 1.00 x .515 x .760

$7.99

$

In Stock, only 2 left!

0

6

MTD 931-0484A

Hub Cap

$5.99

$

In Stock, Qty 20+

0

7

MTD 736-04228A

Washer, Flat, .350 x 1.559 x .062
(Superseded to 736-04228B)

$4.99

$

In Stock, Qty 20+

0

8

MTD 619-05044-4028

Steering Axle Assembly, RH
(Superseded to 619-05178-4028)

$215.99

$

Usually ships in 3-6 days

0

9

MTD 919-05069

Pivot Axle, Cast
(Superseded to 919-05069A)

$348.99

$

In Stock, only 2 left!

0

10

MTD 738-05054

Shoulder Bolt, .75 x 4.20, 1/2-13

$19.99

$

Usually ships in 3-6 days

0

11

MTD 741-05082

Flange Bearing, .75 x 1.00 x 1.12

$6.99

$

In Stock, only 4 left!

0
