247.204440 (13A7A1ZW099) - Craftsman T8400 Lawn Tractor (2015) Steering Parts Diagram

T8400 Lawn Tractor

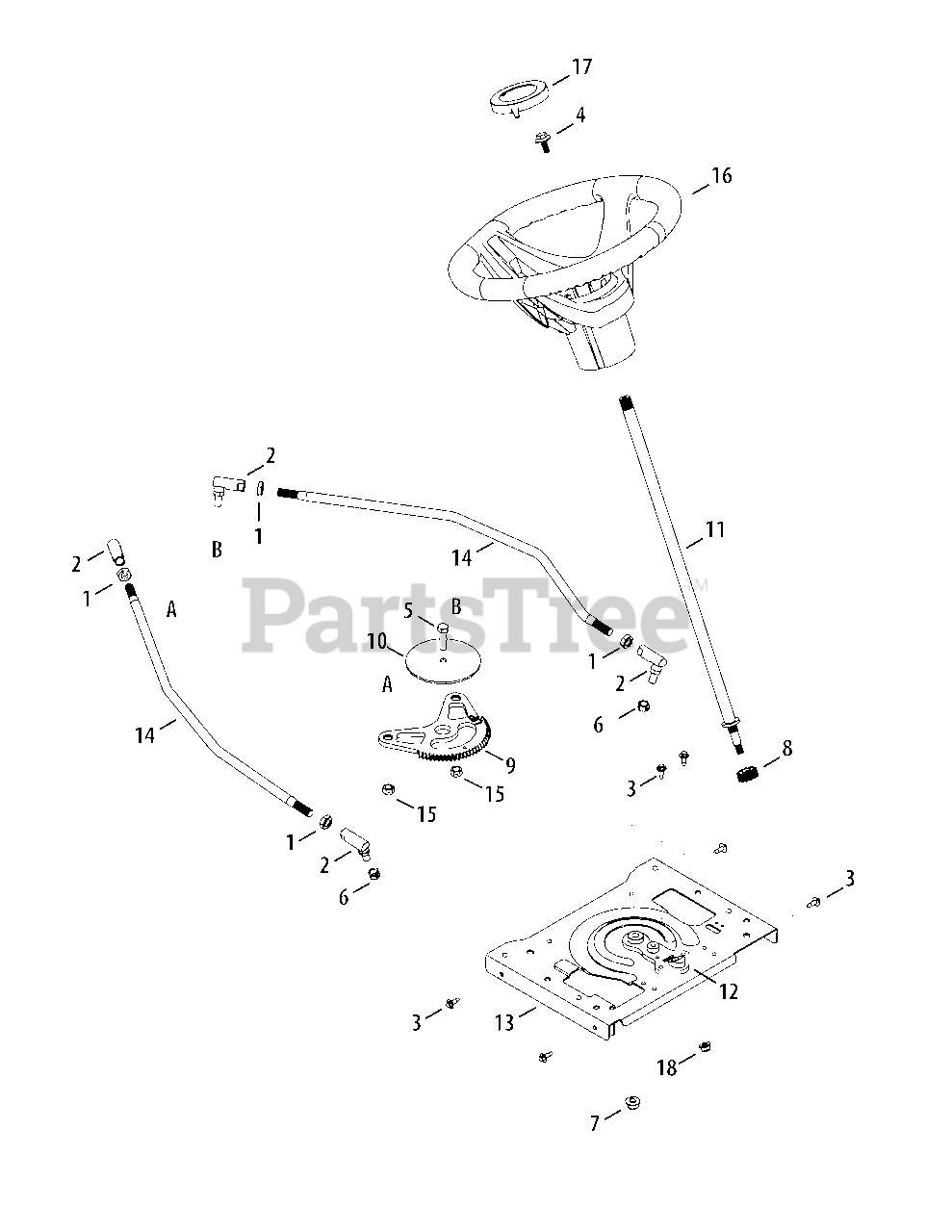

Steering Parts Diagram

  • Title

1

MTD 712-3029

Jam Nut, 1/2-20

$7.49

$

In Stock, Qty 13

0

2

MTD 723-05013

Ball Joint, 1/2-20, Lock

$35.99

$

In Stock, only 2 left!

0

3

MTD 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-06154B

Screw, 5/16-24 x .850

$4.99

$

Usually ships in 3-6 days

0

5

MTD 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-0378

Nut, Hex Lock, 7/16-20

$7.49

$

Usually ships in 3-6 days

0

7

MTD 712-04065

Nut, Flange Lock, 3/8-16, Grf,

$4.49

$

In Stock, Qty 20+

0

8

MTD 717-05193A

Pinion Gear, 13T
(Superseded to 717-05193B)

$12.99

$

In Stock, Qty 8

0

9

MTD 717-05156

Steering Gear
(Superseded to 717-05156C)

$86.99

$

Usually ships in 3-6 days

0

10

MTD 736-05125

Flat Washer, .385 x 4.0 x .120
(Superseded to 736-05125A)

$9.99

$

In Stock, only 2 left!

0

11

MTD 738-05043

Shaft, Steering, .625 OD x 20

$58.99

$

In Stock, Qty 10

0

12

MTD 748-05071

Steering Support
(Superseded to 748-05071B)

$66.99

$

In Stock, Qty 5

0

13

MTD 783-08386B-0637

Steering Mounting Plate

$41.99

$

Usually ships in 3-6 days

0

14

MTD 947-05058

Steering Rod Assy (Incl. ref. 1 & 2)
(Superseded to 947-05058A)

$55.99

$

Usually ships in 3-6 days

0

15

MTD 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

16

MTD 631-05102

Steering Wheel
(Superseded to 631-05102A)

$97.99

$

In Stock, only 2 left!

0

17

MTD 731-10981

Cap, Steering Wheel

$13.99

$

Usually ships in 3-6 days

0

18

MTD 712-04063

Nut, Flange Lock, 5/16-18, Grf

$4.49

$

In Stock, Qty 20+

0
