247.204450 (14A7A3ZW099) - Craftsman G8400 Garden Tractor (2015) Electrical Parts Diagram

G8400 Garden Tractor

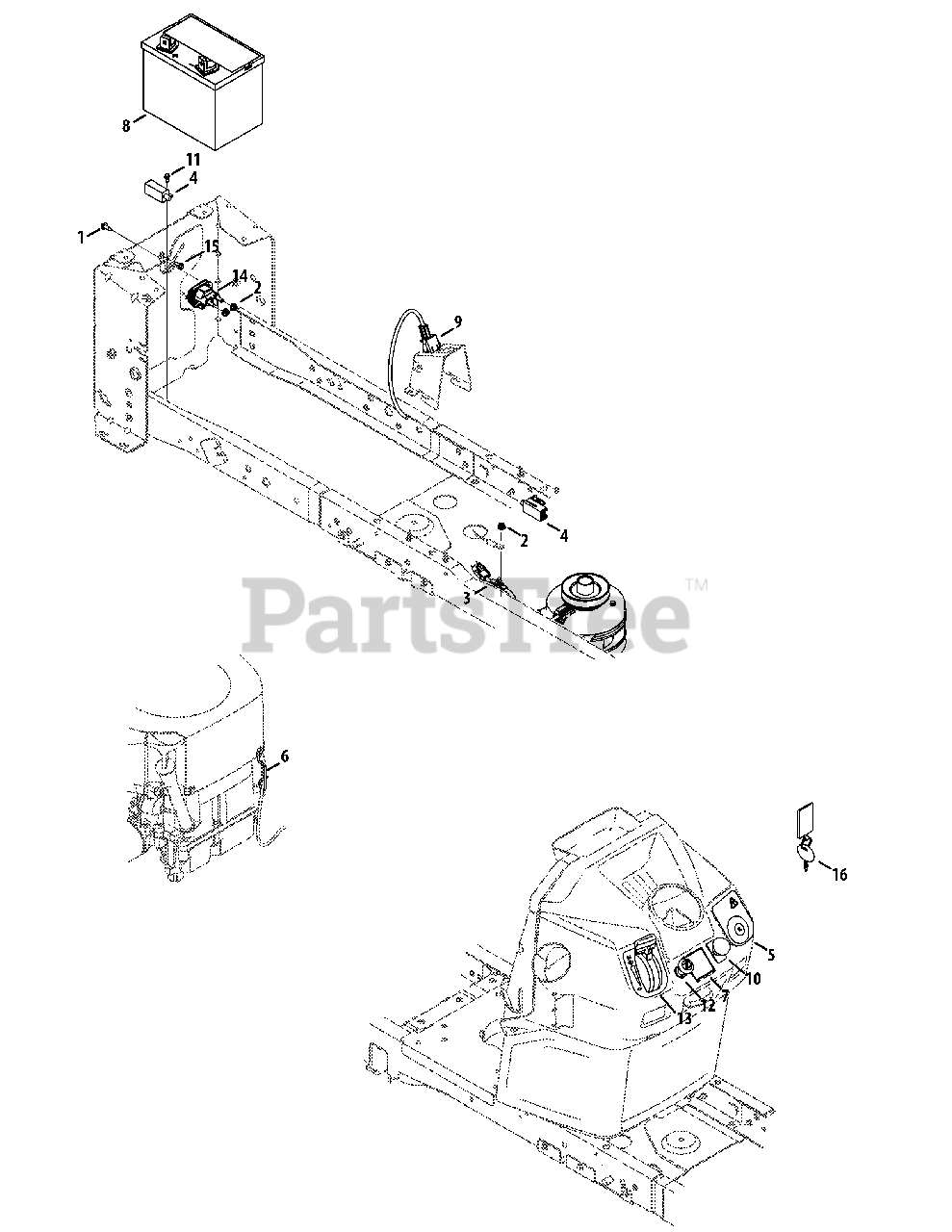

Electrical Parts Diagram

  • Title

1

MTD 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

2

MTD 712-05106

Nut, Jam Lock, 1/4-20, Nylon

$3.49

$

Usually ships in 3-6 days

0

3

MTD 725-06173

Jumper Harness

$30.99

$

In Stock, Qty 6

0

4

MTD 725-04363

Switch, Interlock

$15.99

$

In Stock, Qty 20+

0

5

MTD 725-06102A

Key Switch
(Superseded to 725-13425)

$96.99

$

In Stock, Qty 18

0

6

MTD 747-06308

Cable Guide Rod

$3.49

$

In Stock, only 1 left!

0

7

MTD 925-06170

Hour Meter
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

8

MTD 925-1707D

Battery

$

$

Not available

9

MTD 925-06129

Dash Harness

$71.99

$

Usually ships in 3-6 days

0

10

MTD 925-3233

PTO Switch
(Superseded to 925-3233A)

$51.99

$

In Stock, Qty 20+

0

11

MTD 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 20+

0

12

MTD 731-09956

Choke Plug

$5.49

$

In Stock, Qty 10

0

13

MTD 946-05098A

Throt/Choke Cable, 43.5"
(Superseded to 946-05098C)

$55.99

$

In Stock, Qty 20+

0

14

MTD 725-06153

Solenoid
(Superseded to 725-06153A)

$42.99

$

In Stock, Qty 20+

0

15

MTD 710-1652

Self-tapping Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

16

MTD 625-04124

Key, Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

MTD 925-06127

Harness Assembly, Main
(Superseded to 925-06127B)

Note: (not shown)

$192.99

$

In Stock, only 1 left!

0

MTD 925-06167

Reverse Harness

Note: (not shown)

$13.99

$

In Stock, only 2 left!

0
