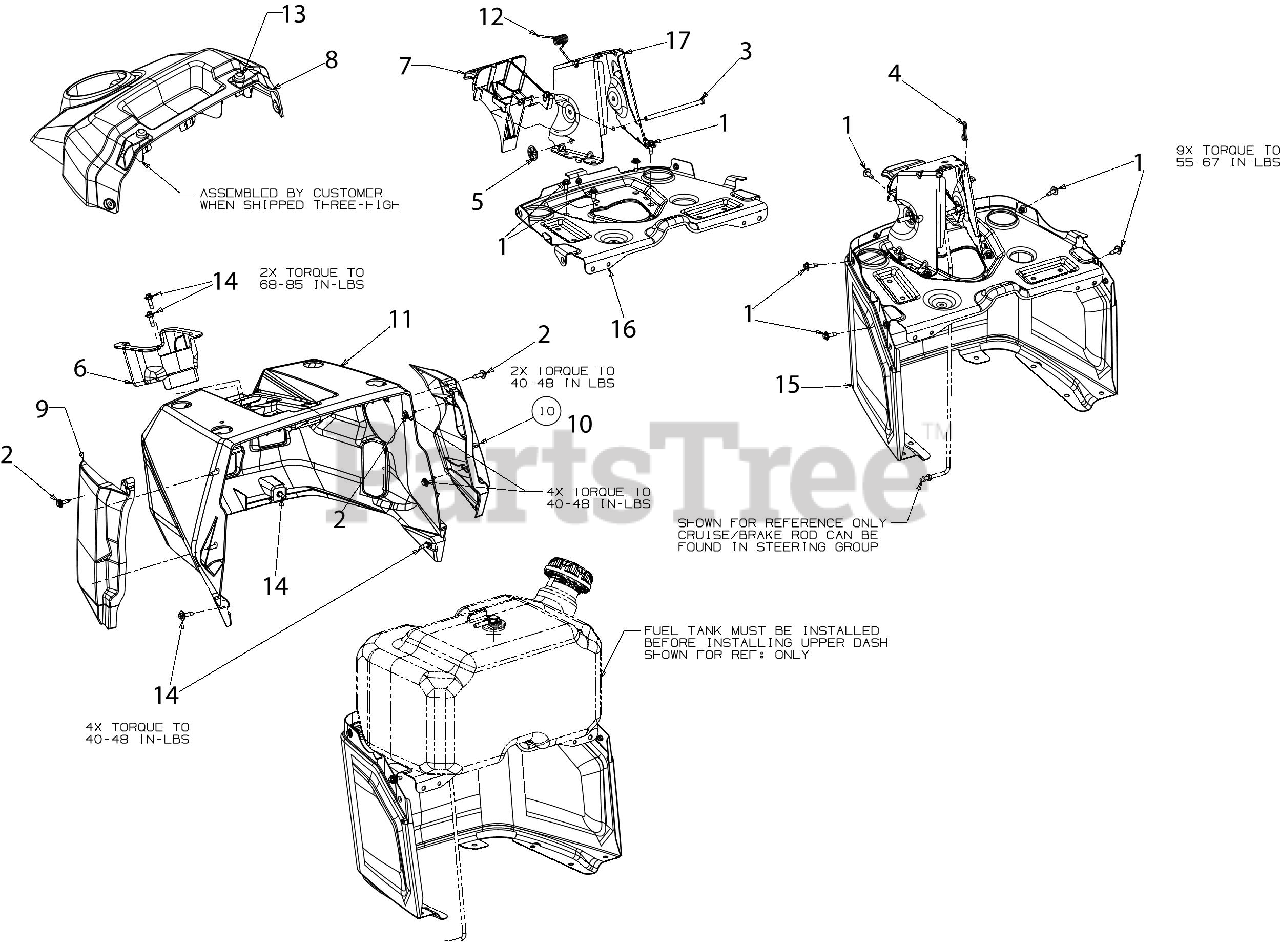

247.204450 (14A7A3ZW099) - Craftsman G8400 Garden Tractor (2016) Dash Parts Diagram

G8400 Garden Tractor

Dash Parts Diagram

  • Title

1

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-06147

SCREW 1/4-10 x .750

$3.99

$

In Stock, Qty 17

0

3

MTD 711-06378

HINGE PIN .25 x 4.50

$4.49

$

Usually ships in 3-6 days

0

4

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

5

MTD 926-04012

PUSH ON NUT
(Superseded to 726-04012)

$

$

Not available

6

MTD 731-10618

STEERING SHAFT BEARING

$15.99

$

In Stock, Qty 9

0

7

MTD 731-10636C

CRUISE/BRAKE DASH LEVER

$13.99

$

Usually ships in 3-6 days

0

8

MTD 931-10973

UPPER DASH CAP

$47.99

$

Usually ships in 3-6 days

0

9

MTD 731-10974

DASH SIDE CAP (RH)

$17.99

$

Usually ships in 3-6 days

0

10

MTD 731-10975

DASH SIDE CAP (LH)

$17.99

$

Usually ships in 3-6 days

0

11

MTD 931-11066A

UPPER DASH CAP (CRAFTSMAN)
(Superseded to 931-11066B)

$66.99

$

Usually ships in 3-6 days

0

12

MTD 732-05199

TORSION SPRING .330 ID

$3.49

$

Usually ships in 3-6 days

0

13

MTD 735-0271A

BUMPER, .62 DIA x .3

$9.49

$

In Stock, Qty 16

0

14

MTD 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, Qty 10

0

15

MTD 783-08391A-0691

LOWER DASH
(Superseded to 783-08391B-0691)

$51.99

$

Usually ships in 3-6 days

0

16

MTD 783-08453-0637

DASH/FUEL TANK PLATE
(Superseded to 783-09546B-0637)

$25.99

$

Usually ships in 3-6 days

0

17

MTD 783-08538A-0637

STEERING MOUNT BRACKET

$33.99

$

Usually ships in 3-6 days

0
