247.204450 (14A7A3ZW099) - Craftsman G8400 Garden Tractor (2016) Wheels Parts Diagram

G8400 Garden Tractor

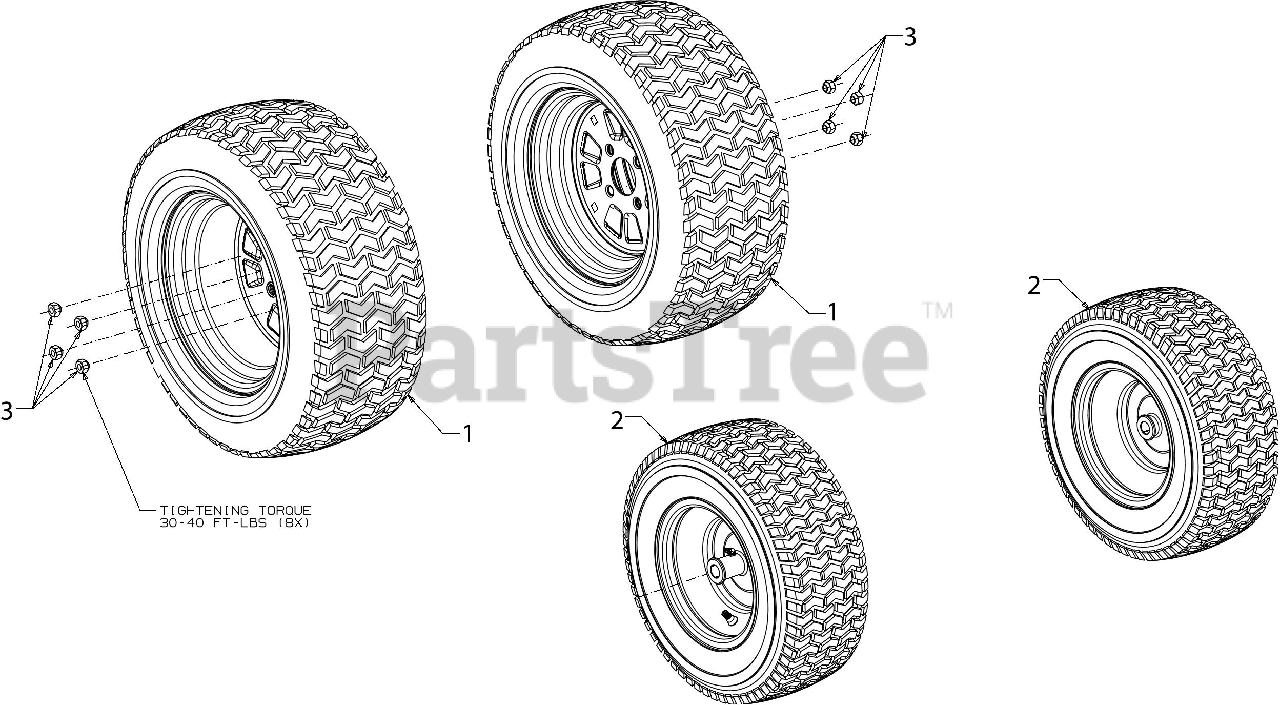

Wheels Parts Diagram

  • Title

1

MTD 634-04238-4028

RIM ASSEMBLY (12 x 7)
(Superseded to 634Z04238-4028)

Note: (Not Shown)

$183.99

$

Usually ships in 3-6 days

0

1

MTD 634-05107-4028

WHEEL ASSEMBLY (22 x 9.5 x 12)

$447.99

$

Usually ships in 3-6 days

0

1

MTD 734-05065-0906

TIRE 22X9.5X12 SQ SH

Note: (Not Shown)

$232.99

$

Usually ships in 3-6 days

0

1

MTD 934-0255

TUBELESS VALVE

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

2

MTD 634-05179-4028

RIM ASSEMBLY (8.0X5.38)

Note: (Not Shown)

$

$

Not available

2

MTD 634-05180-4028

WHEEL ASSEMBLY (16X6.5X8)
(Superseded to 634Z05180-4028)

$215.99

$

Usually ships in 3-6 days

0

2

MTD 734-04641

TIRE-16.0 x 6.50 x 8.00 SQ SH DELI
(Superseded to 734-1727)

Note: (Not Shown)

$60.99

$

Usually ships in 3-6 days

0

2

MTD 737-05024

GREASE FITTING 65 DEG 3/16

Note: (Not Shown)

$6.49

$

In Stock, Qty 5

0

2

MTD 741-05094

FLANGE BEARING

Note: (Not Shown)

$7.99

$

In Stock, Qty 20+

0

2

MTD 934-0255

TUBELESS VALVE

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

3

MTD 712-3050

LUG NUT 7/16-14

$10.99

$

In Stock, Qty 20+

0
