247.23000 (21AB47M6099) - Craftsman Tiller (2011) (Sears) Tine & Drive Parts Diagram

Tiller

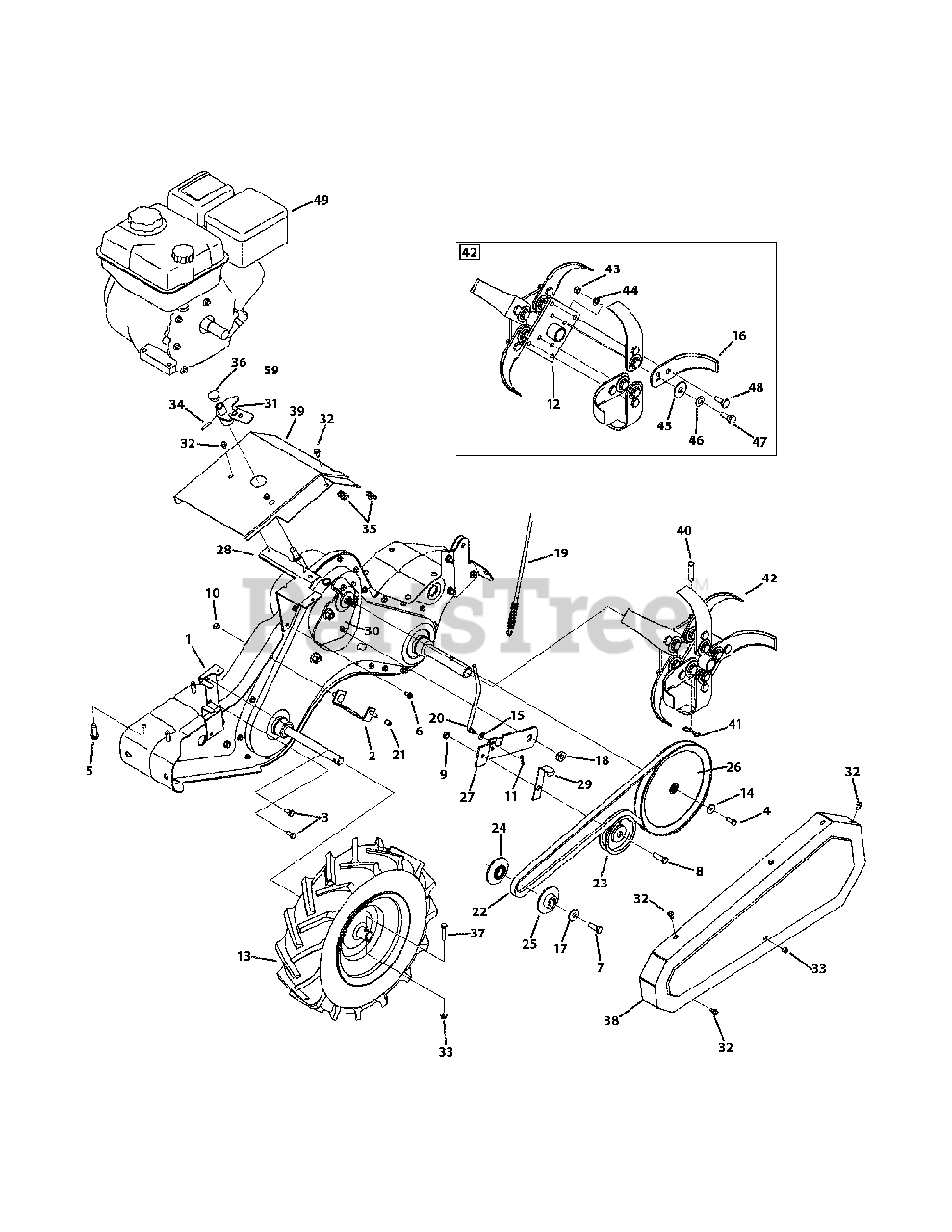

Tine & Drive Parts Diagram

  • Title

1

MTD 686-0191B-0691

Belt Keeper Assembly Bracket

$14.99

$

Usually ships in 3-6 days

0

2

MTD 686-04044A-0691

Belt Cover Assembly Bracket

$20.99

$

Usually ships in 3-6 days

0

3

MTD 710-0170

Hex Lock Screw, 5/16-24 x .625

$6.49

$

In Stock, only 1 left!

0

4

MTD 710-0513

Hex Screw, 1/4-28 x .625
(Superseded to 710-0513A)

$4.49

$

In Stock, Qty 10

0

5

MTD 710-0502A

Hex Washer Screw, 3/8-16 x 1.250

$6.49

$

In Stock, Qty 7

0

6

MTD 710-1652

Hex Washer Screw, 1/4-20 x 0.625

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-1039

Hex Screw, 3/8-24 x 1.00

$4.49

$

In Stock, Qty 11

0

8

MTD 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0266A

Jam Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-04063

Hex Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

MTD 914-0104

Cotter Pin, .072 x 1.13
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

12

MTD 784-0160-0637

Tine Adapter Assembly

$107.99

$

In Stock, only 4 left!

0

13

MTD 634-04654

Complete Wheel, 16 x 4.6 x 8
(Superseded to 934-04654)

$151.99

$

Usually ships in 3-6 days

0

14

MTD 936-0176

Flat Washer, .265 x .938 x .120
(Superseded to 736-0176)

$3.99

$

In Stock, Qty 20+

0

15

MTD 936-0271

Spring Washer, .317 x .625 x .020

$4.49

$

In Stock, Qty 12

0

16

MTD 742-0305A-0637

Articulating Tine

$20.99

$

In Stock, Qty 20+

0

17

MTD 936-0452

Bell Washer, .396 x 1.140 x .095
(Superseded to 736-0452)

$4.49

$

In Stock, Qty 16

0

18

MTD 738-0876A

Shoulder Nut, 7/16-20

$10.99

$

In Stock, Qty 17

0

19

MTD 946-1118A

Swing Clutch Cable

$67.99

$

Usually ships in 3-6 days

0

20

MTD 747-1159

Idler Pulley Rod

$24.99

$

Usually ships in 3-6 days

0

21

MTD 750-0565

Spacer, .372 x .260 x .44

$7.49

$

Usually ships in 3-6 days

0

22

MTD 954-0434

Belt: 4 x 58.16

$61.99

$

In Stock, Qty 20+

0

23

MTD 756-0405

Flat Idler w/ Flanges 3.75

$66.99

$

Usually ships in 3-6 days

0

24

MTD 756-0971

Engine Inner Half Pulley

$13.99

$

In Stock, only 2 left!

0

25

MTD 756-0972

Engine Outer Half Pulley

$15.99

$

In Stock, only 4 left!

0

26

MTD 756-1162

Input Pulley, 4 x 8.594

$84.99

$

In Stock, only 2 left!

0

27

MTD 786-0064A

Idler Pulley Bracket

$36.99

$

In Stock, only 1 left!

0

28

MTD 786-0187-0637

Shift Cover Bracket

$21.99

$

Usually ships in 3-6 days

0

29

MTD 786-0193-0637

Idler Belt Keeper

$9.49

$

Usually ships in 3-6 days

0

30

MTD 786-0238

Positioner Gear Bracket
(Superseded to 786-0238A)

$19.99

$

Usually ships in 3-6 days

0

31

MTD 686-0109A

Shift Crank Assembly

$34.99

$

Usually ships in 3-6 days

0

32

MTD 710-1652

Hex Washer Screw, 1/4-20 x 0.625

$3.99

$

In Stock, Qty 20+

0

33

MTD 712-04064

Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

34

MTD 915-0120

Spirol Pin, 3/16 x 1.00
(Superseded to 715-0120)

$9.99

$

In Stock, only 3 left!

0

35

MTD 726-3054

U-Clip Nut, 1/4-20

$4.49

$

In Stock, Qty 5

0

36

MTD 731-07556

Shift Crank Cap

$3.49

$

Usually ships in 3-6 days

0

37

MTD 710-05289

Hex Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 7

0

38

MTD 786-0345B-0691

Belt Cover

$53.99

$

Usually ships in 3-6 days

0

39

MTD 786-04436-0691

Shift Cover

$38.99

$

Usually ships in 3-6 days

0

40

MTD 911-0415

Clevis Pin, .375 x 1.75
(Superseded to 711-0415)

$4.49

$

In Stock, Qty 20+

0

41

MTD 714-04043

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

42

MTD 984-0205A-0637

Articulating Tine Assembly

$215.99

$

In Stock, Qty 6

0

43

MTD 712-3054

Hex Lock Nut, 3/8-24

$3.99

$

In Stock, Qty 20+

0

44

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

45

MTD 936-0208

Flat Washer, .51 x 1.5 x .07
(Superseded to 736-0208)

$

$

Not available

46

MTD 936-0253

Bell Washer, .525 x 1.00 x .050
(Superseded to 736-0253)

$

$

Not available

47

MTD 938-0688

Shoulder Screw, 3/8-24 x 1/2 x .325

$9.49

$

In Stock, Qty 20+

0

48

MTD 938-0689

Shoulder Screw, 3/8-24 x 1/2 x .180

$8.49

$

In Stock, Qty 7

0

49

MTD 952Z270-V0

Replacement Engine

$

$

Not available

MTD 929-0071A

Cord, Extension 3-Prong
(Superseded to 929-0071B)

$22.99

$

Usually ships in 3-6 days

0
