247.240200 (19A40002799) - Craftsman Triple Rear Bagger Assembly (2014) General Assembly Parts Diagram

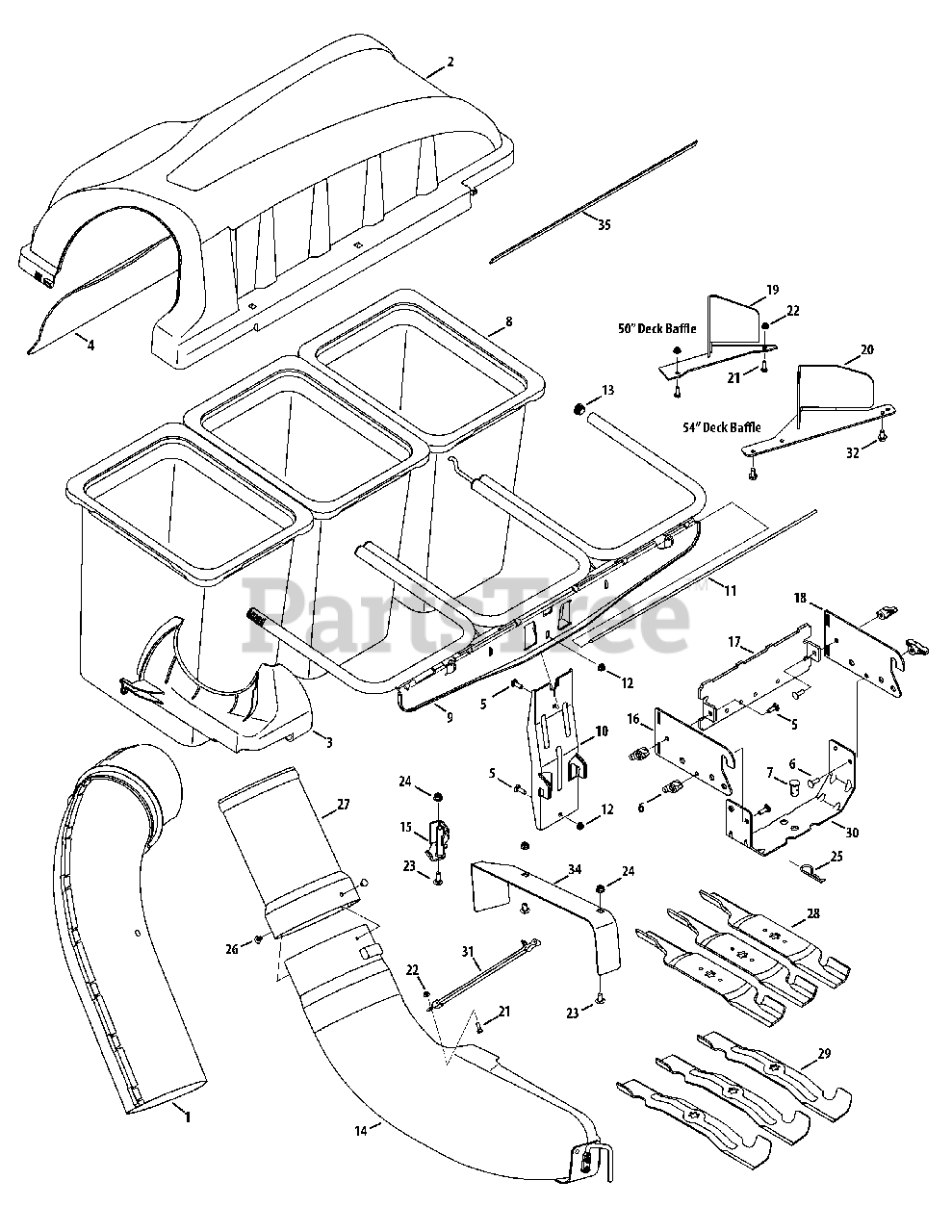

Triple Rear Bagger Assembly

General Assembly Parts Diagram

  • Title

1

MTD 931-04291

Upper Chute Assembly
(Superseded to 931-04291A)

$115.99

$

Usually ships in 3-6 days

0

2

MTD 931-04298

Triple Bagger Cover Assembly

$36.99

$

Usually ships in 3-6 days

0

3

MTD 731-06497

Upper Chute Support

$33.99

$

In Stock, only 2 left!

0

4

MTD 731-06504

Bagger Cover Screen

$16.99

$

In Stock, only 1 left!

0

5

MTD 710-0276

Carriage Screw, 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 20+

0

6

MTD 720-04122

Wing Knob, 5/16-18

$6.49

$

In Stock, Qty 20+

0

7

MTD 711-0309A

Clevis Pin, .62" Dia.

$11.99

$

In Stock, Qty 10

0

8

MTD 964-04096A

Grass-bag Assembly
(Superseded to 964-05104)

$90.99

$

In Stock, Qty 20+

0

9

MTD 683-04498A-0637

Triple Bag Support Assembly
(Superseded to 683-04498B-0637)

$204.99

$

Usually ships in 3-6 days

0

10

MTD 683-04519A-0637

Vertical Support Bracket
(Superseded to 683-04519B-0637)

$133.99

$

Usually ships in 3-6 days

0

11

MTD 711-05079

Cover Hinge Pin

$21.99

$

Usually ships in 3-6 days

0

12

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 735-0246A

End Plug

$5.49

$

Usually ships in 3-6 days

0

14

MTD 631-04493

Discharge Chute Elbow, (50/54" Deck)

$224.99

$

Usually ships in 3-6 days

0

15

MTD 683-0617A-0637

Chute Stop-Bracket

$60.99

$

In Stock, only 2 left!

0

16

MTD n/a

Hitch Bracket, RH

Note: (Order 689-00304 Mounting Bracket Kit)

$

$

Currently unavailable

17

MTD n/a

Universal Rear Attachment Bracket

Note: (Order 689-00304 Mounting Bracket Kit)

$

$

Currently unavailable

18

MTD n/a

Hitch Bracket, LH

Note: (Order 689-00304 Mounting Bracket Kit)

$

$

Currently unavailable

19

MTD 703-05783-0637

Deck Baffle, 50"

$81.99

$

Usually ships in 3-6 days

0

20

MTD 703-06018A-0637

Deck Baffle, 54"

$85.99

$

Usually ships in 3-6 days

0

21

MTD 710-3015

Tap Screw, 1/4 - 20 x .750 (50" Deck)

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-04064

Flange Lock Nut, 1/4 - 20 (50" Deck)

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-3168

Carriage Screw, 3/8 - 16 x 1.00"

$3.99

$

In Stock, Qty 20+

0

24

MTD 712-04065

Flange Lock Nut, 3/8 - 16

$3.99

$

In Stock, Qty 20+

0

25

MTD 714-0117

Internal Cotter Pin, .148 x 3.00

$3.99

$

In Stock, Qty 11

0

26

MTD 726-3046

Ratchet Clip, .250

$3.99

$

In Stock, Qty 20+

0

27

MTD 731-06611

Bagger Chute Adapter, 7 In.

$43.99

$

In Stock, only 3 left!

0

28

MTD 942-0679

Blade, 18.50 Lg., High Lift
(Superseded to 742-0679-0637)

$38.99

$

Usually ships in 3-6 days

0

29

MTD 742-04056C-0637

Blade, 17.90 Lg., Star Bagging
(Superseded to 942-04056C)

$35.99

$

In Stock, only 4 left!

0

30

MTD 783-08129-0637

Hitch Support Bracket

$49.99

$

In Stock, only 1 left!

0

31

MTD 723-0476

Chute Strap

$30.99

$

In Stock, only 3 left!

0

32

MTD 710-04484

Tap Screw, 5/16-18 x .750 (54" Deck)

$3.49

$

In Stock, Qty 20+

0

34

MTD 783-06694-0637

Discharge Chute Plate
(Superseded to 783-06694A-0637)

$40.99

$

Usually ships in 3-6 days

0

35

MTD 721-04388

Adhesive Foam Strip

$6.99

$

In Stock, Qty 13

0

MTD 689-00304

Mounting Bracket Kit
(Superseded to 689-00304A)

Note: (not shown) (Incl. Ref. 16-18)

$99.99

$

Usually ships in 3-6 days

0
