247.250030 (17AL3AGV099) - Craftsman ZTL7500 Zero-Turn Mower (2012) (Sears) Electrical Parts Diagram

ZTL7500 Zero-Turn Mower

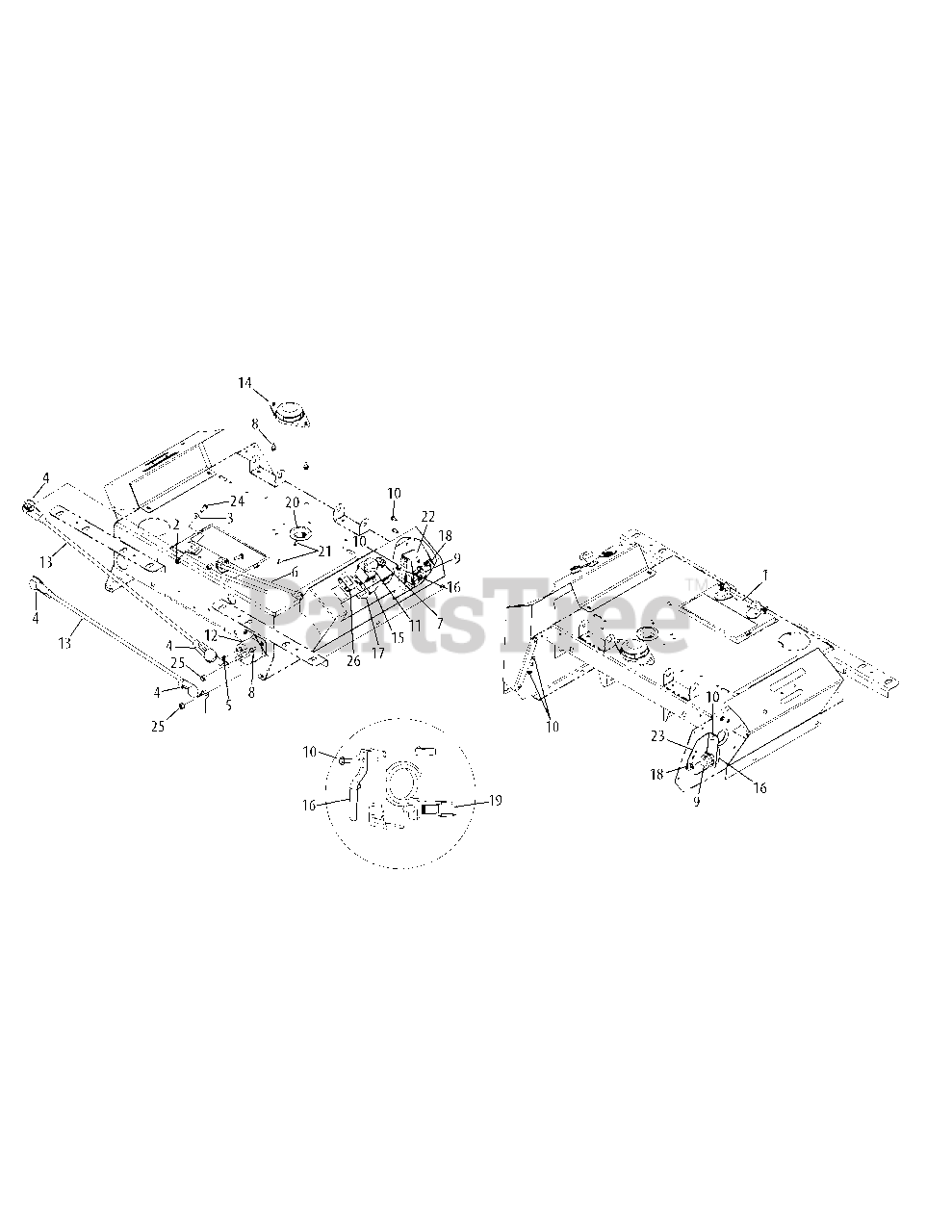

Electrical Parts Diagram

  • Title

1

MTD 925-1707D

Battery

$

$

Not available

2

MTD 00012152

Nylock Nut, 1/4-20

$3.99

$

In Stock, only 1 left!

0

3

MTD 00012154

Washer, .281 x .625 x .063
(Superseded to 936-3020)

$

$

Not available

4

MTD 00013258

Boot Terminal, 1.00 x 2.50

$9.99

$

Usually ships in 3-6 days

0

5

MTD 00014608

Nylock Nut, #10-32
(Superseded to 712-05003)

$2.99

$

In Stock, only 3 left!

0

6

MTD 00024233

Battery Cable

$36.99

$

Usually ships in 3-6 days

0

7

MTD 00032097

Nut, 5/8-32
(Superseded to 00032097P)

$

$

Not available

8

MTD 710-0599

Hex Flange Screw, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

9

MTD 01001717

Switch
(Superseded to 925-3166)

$15.99

$

In Stock, Qty 20+

0

10

MTD 01001864

Flange Screw, #10-24 x .500
(Superseded to 1767754)

$

$

Not available

11

MTD 01002111

PTO Switch
(Superseded to 925-1716A)

$68.99

$

In Stock, Qty 20+

0

12

MTD 925-3001

Solenoid

$54.99

$

In Stock, Qty 9

0

13

MTD 01002252

Battery Cable

$35.99

$

Usually ships in 3-6 days

0

14

MTD 01003277

Seat Switch

$36.99

$

In Stock, only 4 left!

0

15

MTD 01003581P

Ignition Switch

$65.99

$

In Stock, Qty 20+

0

16

MTD 732-04200

Renovator Spring

$9.99

$

In Stock, Qty 8

0

17

MTD 01009905

PTO Bracket

$25.99

$

Usually ships in 3-6 days

0

18

MTD 01009931

Nut, #10-24
(Superseded to 712-05009)

$

$

Not available

19

MTD 02000024P

Delta Switch
(Superseded to 925-3164A)

$37.99

$

In Stock, Qty 13

0

20

MTD 02001134

Grommet, 1/8 x 1.5 x 2.13

$

$

Not available

21

MTD 02003037

Electric CDT Clip

$3.99

$

Usually ships in 3-6 days

0

22

MTD 02003926

RH Deck Switch Mount Bracket

$33.99

$

Usually ships in 3-6 days

0

23

MTD 02003927

LH Deck Switch Mount Bracket

$21.99

$

In Stock, only 1 left!

0

24

MTD 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

25

MTD 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

26

MTD 925-05120A

Hour Meter

$88.99

$

Usually ships in 3-6 days

0

MTD 02002990

Wiring Harness

Note: Not shown

$254.99

$

Usually ships in 3-6 days

0

MTD 02005213

Harness Assembly

Note: Not shown

$36.99

$

Usually ships in 3-6 days

0
