247.270170 (13A-325-099) - Craftsman Lawn Tractor (1999) (Sears) Single Speed Transmission - L.H. Parts Diagram

Lawn Tractor

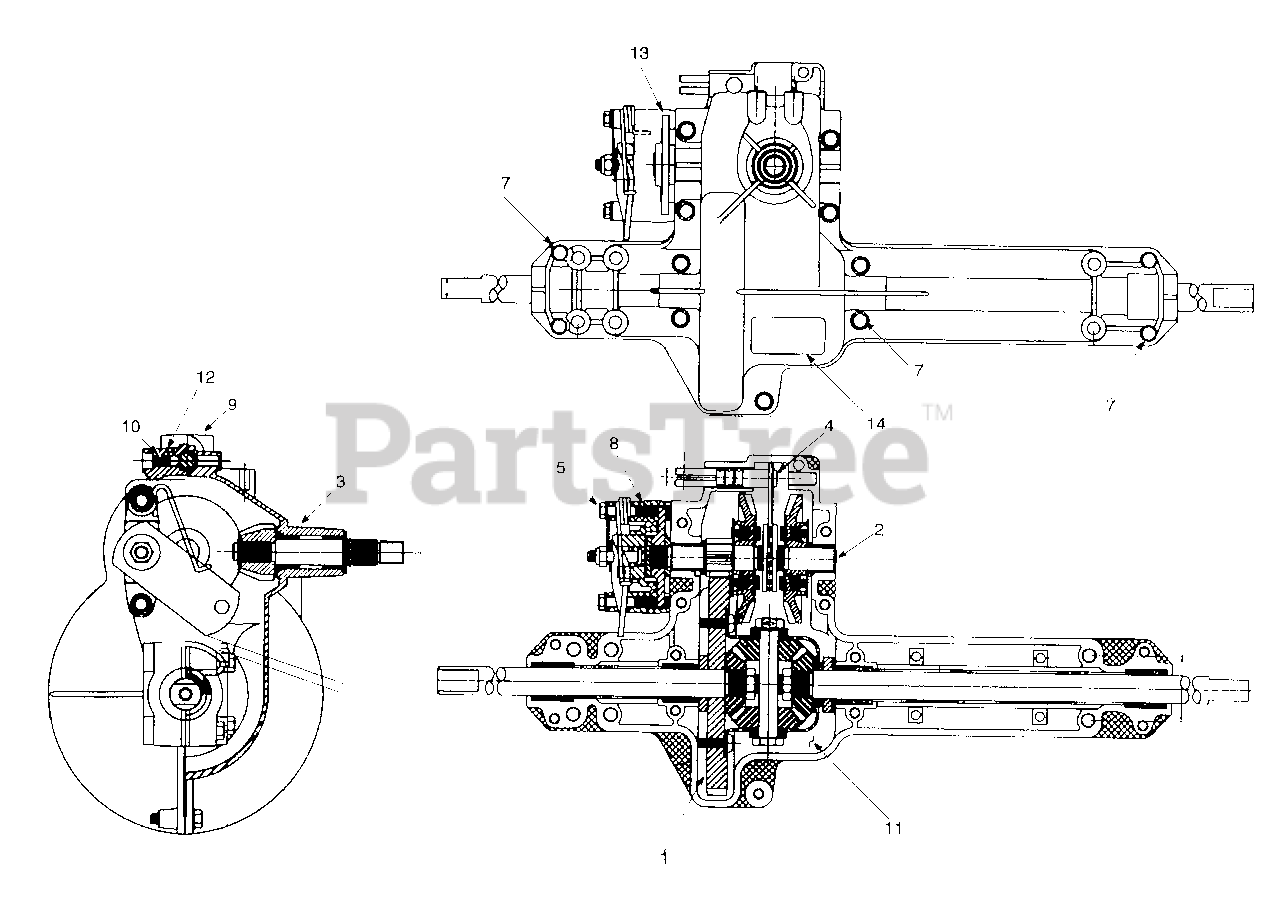

Single Speed Transmission - L.H. Parts Diagram

  • Title

1

MTD 618-0232

Differential Assembly: Single Speed
(Superseded to 918-04092A)

$346.99

$

Usually ships in 3-6 days

0

2

MTD 618-0248

Drive Shaft Assembly: LH Brake
(Superseded to 618-0248P)

$250.99

$

Usually ships in 3-6 days

0

3

MTD 618-0072B

Upper Housing Assembly
(Superseded to 918-0072B)

$183.99

$

Usually ships in 3-6 days

0

4

MTD 611-0114

Detent Shaft Assembly

$

$

Not available

5

MTD 661-0006

Brake Yoke Assembly: LH
(Superseded to 961-0006)

$43.99

$

In Stock, only 2 left!

0

?6

MTD 710-1206

Hex Washer Hd. TT Screw 1/4-20 x 2.37 Gr.5

$6.99

$

In Stock, Qty 11

0

7

MTD 710-1325

Hex Washer Hd. TT Screw 1/4-20 x 1.65

$4.49

$

In Stock, Qty 5

0

8

MTD 717-0678

Brake Puck
(Superseded to 917-0678)

$6.99

$

In Stock, Qty 20+

0

9

MTD 719-0313B

Lower Housing

$144.99

$

Usually ships in 3-6 days

0

10

MTD 732-0863

Spring Detent
(Superseded to 932-0863)

$3.99

$

In Stock, Qty 10

0

11

MTD 737-0148

Grease
(Superseded to 737-0300A)

$32.99

$

In Stock, Qty 20+

0

12

MTD 741-0862

Ball Detent

$4.49

$

In Stock, Qty 20+

0

13

MTD 761-0202

Brake Disc

$14.99

$

In Stock, Qty 5

0

14

MTD 777-6318

Label

$

$

Currently unavailable

MTD 618-0251A

Transmission Complete
(Superseded to 918-0251C)

$1133.99

$

Usually ships in 3-6 days

0
