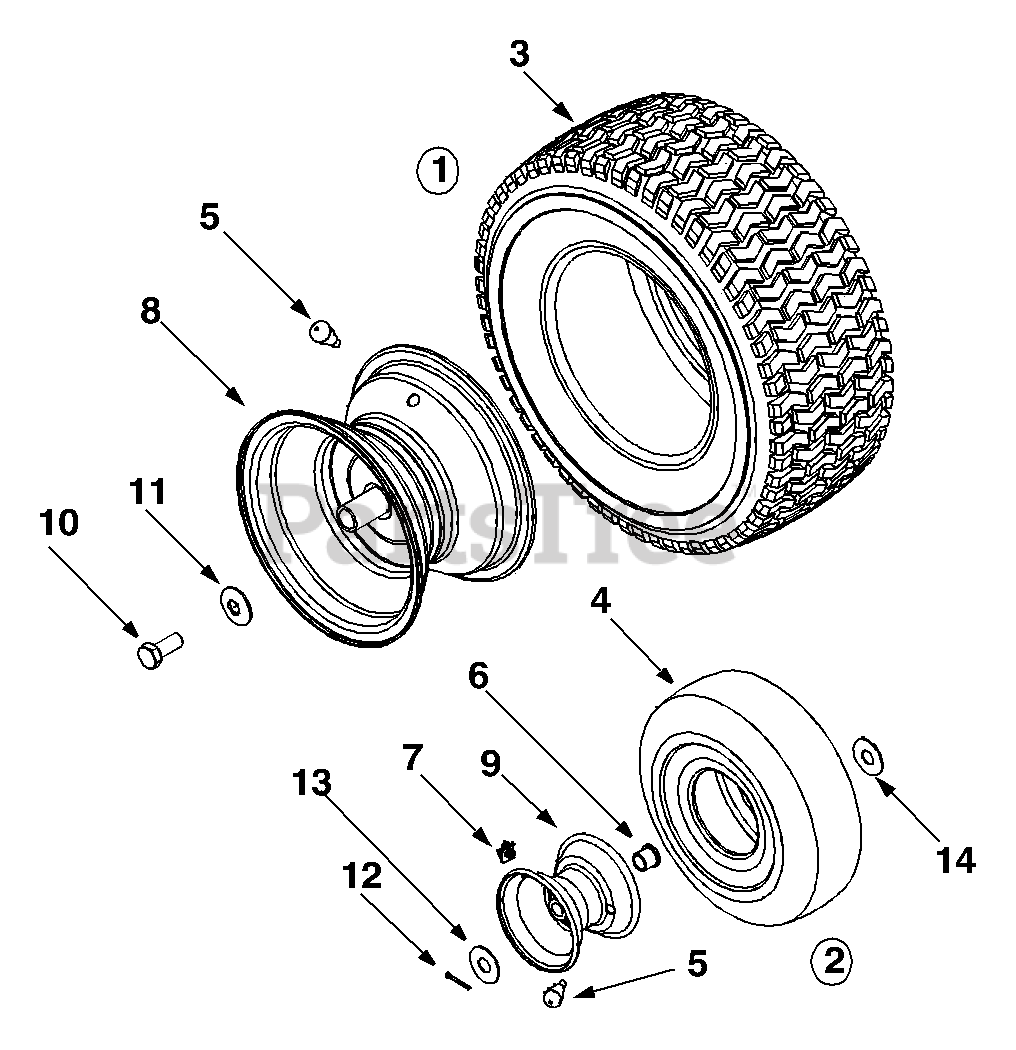

247.270200 (13A-328-099) - Craftsman Lawn Tractor (2003) (Sears) Wheels Parts Diagram

Lawn Tractor

Wheels Parts Diagram

  • Title

1

MTD 634-0139

Rear Wheel Compl.

Variations

MTD 634-0139-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$319.99

$

Usually ships in 3-6 days

0

MTD 634-0139-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)

$319.99

$

Usually ships in 3-6 days

0

MTD 634-0139-0961

WHEEL ASM-COMPLETE - Carlisle Gray (0961)

$108.99

$

In Stock, only 2 left!

0

MTD 634-0139-0941

WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$297.99

$

Usually ships in 3-6 days

0

MTD 634-0139-0976

WHEEL ASM-COMPLETE - Kenda Yellow (0976)

$297.99

$

Usually ships in 3-6 days

0

$259.99

$

Usually ships in 3-6 days

0

2

MTD 634-0169A

Front Wheel Compl.
(Superseded to 634-0147)

Variations

MTD 634-0169A-0911

Wheel Assembly, Complete - Carlisle Gray (0911)

$

$

Not available

MTD 634-0169A-0921

Wheel Assembly, Complete - Carlisle White (0921)

$

$

Not available

MTD 634-0169A-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$

$

Not available

MTD 634-0169A-0941

Wheel Assembly, Complete - Carlisle Yellow (0941)

$

$

Not available

MTD 634-0169A-0971

Wheel Assembly, Complete - Carlisle Yellow (0971)

$

$

Not available

$

$

3

MTD 734-1727

Rear Tire

$56.99

$

Usually ships in 3-6 days

0

4

MTD 734-1382

Front Tire
(Superseded to 734-1382-0901)

Variations

MTD 734-1382-0901

Tire, 11 X 4 X 4 - Carlisle (0901)

$32.99

$

Usually ships in 3-6 days

0

MTD 734-1382-0902

Tire, 11 X 4 X 4 - Dico (0902)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

5

MTD 734-0255

Valve: Tubeless Air
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

6

MTD 737-0211A

Grease Fitting

$10.99

$

Usually ships in 3-6 days

0

7

MTD 741-0353

Flange Bearing

$11.99

$

In Stock, Qty 7

0

8

MTD 634-0138

Rim Assembly

Variations

MTD 634-0138-0499

Rim Assembly, 8.0 X 5.38 with Valve - CUB BEIGE (0499)

$67.99

$

Usually ships in 3-6 days

0

MTD 634-0138-0662

RIM ASSEMBLY-8 X 5 - OYSTER GRAY (0662)

$67.99

$

Usually ships in 3-6 days

0

MTD 634-0138-0674

No Longer Available RIM ASM - YARDMAN YELLOW (0674)

$

$

Not available

$141.99

$

Usually ships in 3-6 days

0

9

MTD 734-1455A

Rim Assembly

Variations

MTD 734-1455A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 734-1455A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 734-1455A-0662

No Longer Available RIM - OYSTER GRAY (0662)

$

$

Not available

MTD 734-1455A-0674

No Longer Available RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

10

MTD 710-0627

Hex Bolt 5/16-24 x .75"

$4.49

$

In Stock, Qty 7

0

11

MTD 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

12

MTD 714-0115

Cotter Pin

$3.99

$

Usually ships in 3-6 days

0

13

MTD 736-0285

Flat Washer

$4.49

$

In Stock, Qty 9

0

14

MTD 736-0156

Flat Washer

$4.49

$

In Stock, Qty 12

0

15

MTD 731-0484A

Hub Cap
(Superseded to 931-0484A)

Note: (not shown)

$6.49

$

In Stock, Qty 5

0
