247.270470 (1427A3ZW099) - Craftsman G8600 Garden Tractor (2017) Electrical Parts Diagram
G8600 Garden Tractor

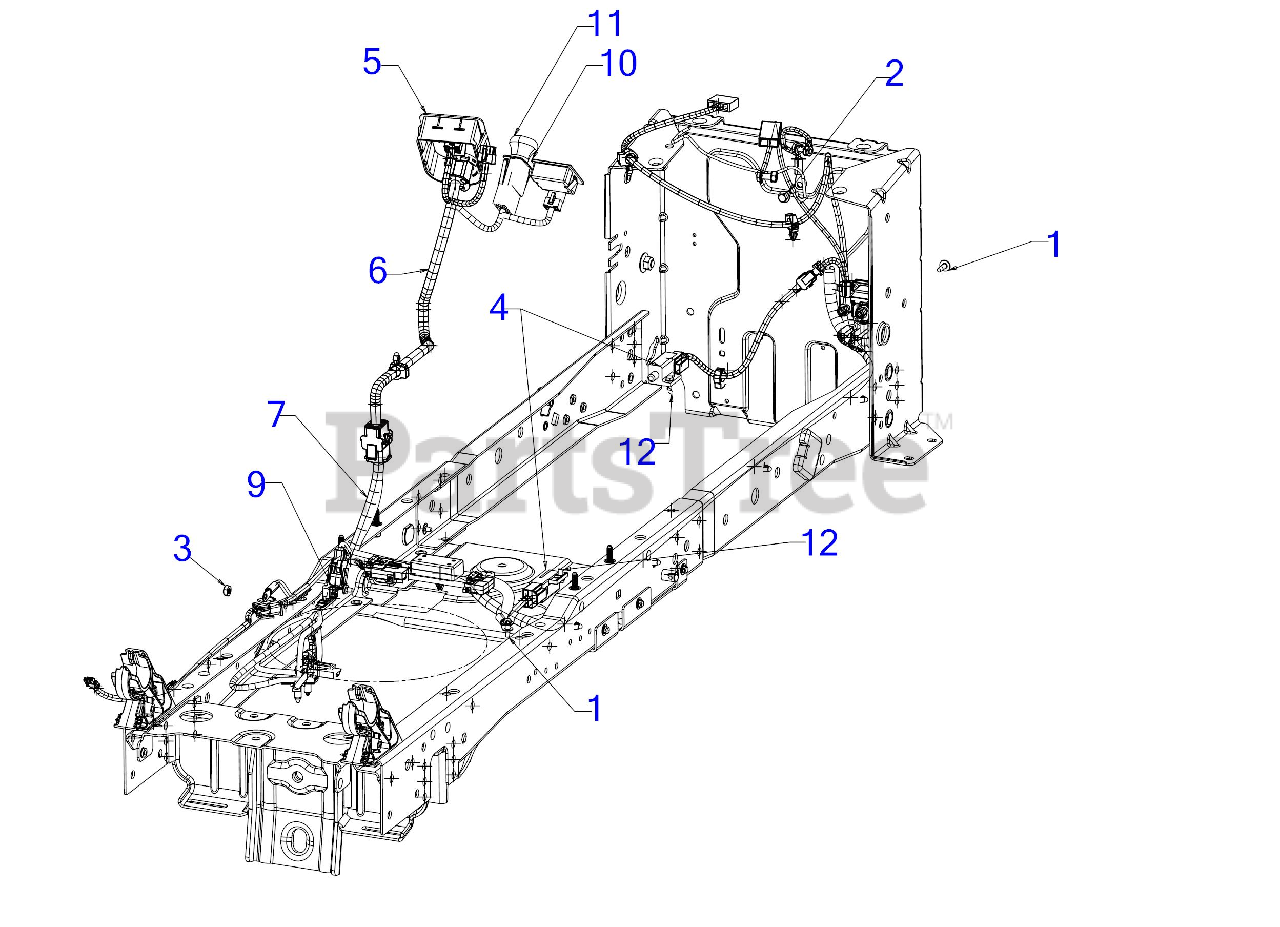

Electrical Parts Diagram
MTD 710-06133
SCREW M6-1 x .625
$3.99
$
In Stock, Qty 20+
MTD 710-1652
SCREW 1/4-20X.625
$4.49
$
In Stock, Qty 20+
MTD 712-05106
HEX NUT 1/4-20
$3.49
$
Usually ships in 3-6 days
MTD 725-04363
INTERLOCK SWITCH (NO/NC)
$15.99
$
In Stock, Qty 20+
$96.99
$
In Stock, Qty 18
MTD 925-06129
DASH HARNESS
$71.99
$
Usually ships in 3-6 days
MTD 925-06134
MAIN HARNESS E-PTO/RMC/EPS
$240.99
$
Usually ships in 3-6 days
$13.99
$
In Stock, only 2 left!
MTD 725-06173
CLUTCH HARNESS 11"
$30.99
$
In Stock, Qty 6
MTD 925-06221B
SERVICE MNDR/HOUR METER- BLUETOOTH
$207.99
$
Usually ships in 3-6 days
MTD 925-3233A
PTO SWITCH (YELLOW KNOB)
$51.99
$
In Stock, Qty 20+
MTD 738-04237A
SHOULDER SCREW
$6.49
$
In Stock, Qty 20+
