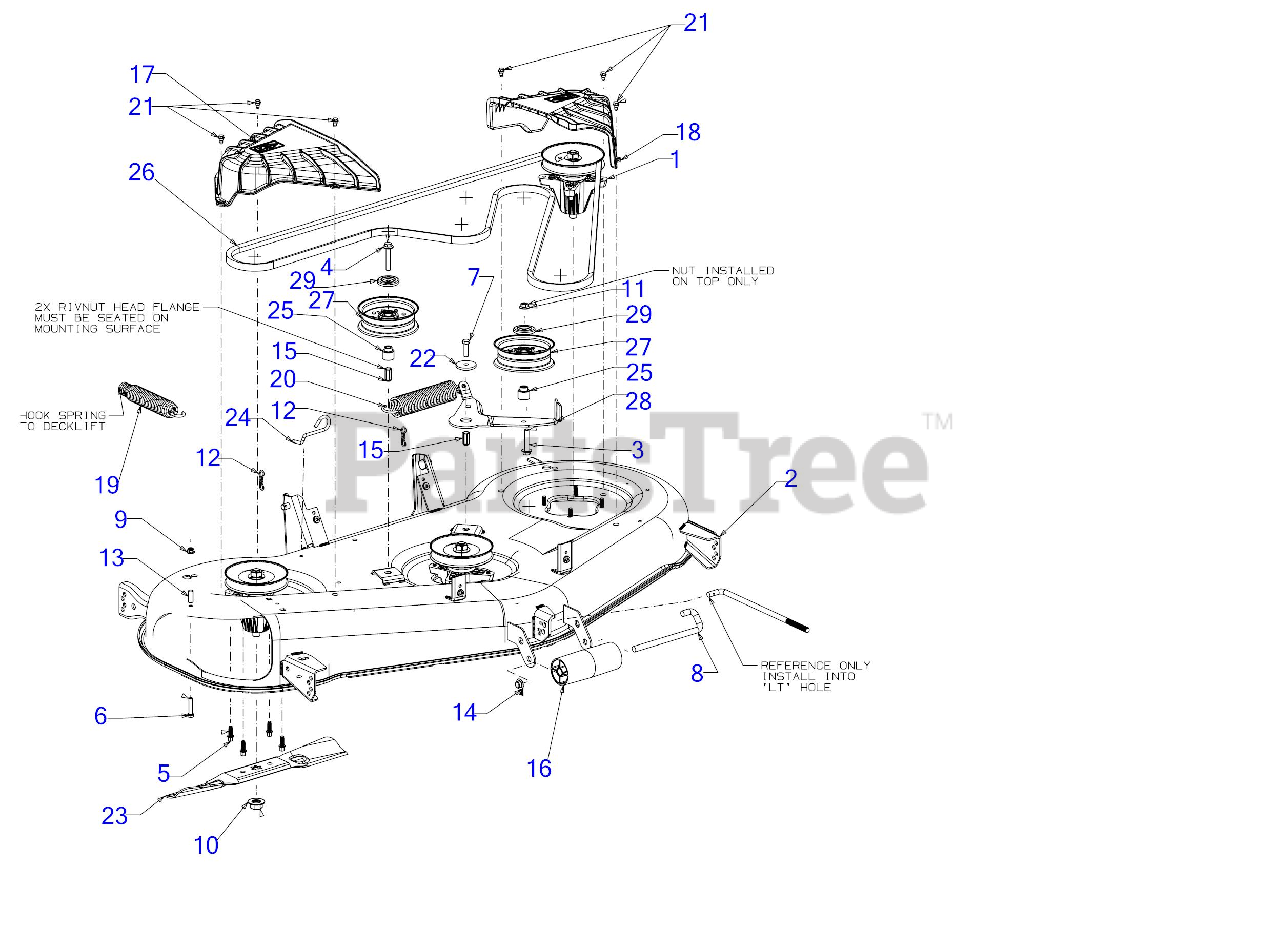

247.273340 (13AAA1ZW099) - Craftsman T3200 Lawn Tractor (2018) Deck Parts Diagram

T3200 Lawn Tractor

Deck Parts Diagram

  • Title

1

MTD 918-06979

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$130.99

$

In Stock, only 3 left!

0

2

MTD 683-05104

54" DECK SHELL
(Superseded to 983-05104)

Note: *CHOOSE COLOR WHEN ORDERING*

$1015.99

$

Usually ships in 3-6 days

0

3

MTD 710-06178

SCREW 3/8-16 x 2.0

$6.99

$

In Stock, Qty 20+

0

4

MTD 710-06215

SCREW 3/8-16 x 2.25 GR5

$7.49

$

In Stock, Qty 13

0

5

MTD 710-06322

SCREW 5/16-18 X .875

$5.99

$

In Stock, Qty 20+

0

6

MTD 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.99

$

In Stock, Qty 20+

0

7

MTD 710-3005

SCREW 3/8-16 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

8

MTD 711-06377

ROLLER PIN 1/2 x 7.31

$22.99

$

In Stock, only 2 left!

0

9

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0417A

HEX NUT

$7.49

$

In Stock, Qty 20+

0

11

MTD 712-04217

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

0

12

MTD 714-05005

BOW TIE COTTER PIN

$5.49

$

In Stock, Qty 20+

0

13

MTD 720-05075

VINYL CAP

$4.49

$

Usually ships in 3-6 days

0

14

MTD 726-0299

PUSH CAP

$8.49

$

In Stock, Qty 20+

0

15

MTD 728-05016

NUT RIVET 3/8-16

$6.49

$

In Stock, Qty 20+

0

16

MTD 731-05679B

ROLLER

$19.99

$

In Stock, Qty 20+

0

17

MTD 731-09968

SPINDLE COVER (RH)
(Superseded to 731-09968B)

$30.99

$

In Stock, Qty 20+

0

18

MTD 731-09969A

SPINDLE COVER (LH)
(Superseded to 731-09969C)

$30.99

$

In Stock, Qty 20+

0

19

MTD 732-05242

LIFT ASSIST SPRING
(Superseded to 732-05242C)

$23.99

$

In Stock, only 3 left!

0

20

MTD 732-04927

EXTENSION SPRING 1.25 OD X 8.5 LG

$24.99

$

In Stock, Qty 20+

0

21

MTD 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

22

MTD 738-05082

SHOULDER SPACER

$8.99

$

In Stock, Qty 20+

0

23

MTD 942-05056A

18.61" BLADE (2N1)

$32.99

$

In Stock, Qty 20+

0

23

MTD 490-110-C143

Cub Cadet 54" HI LIFT BLADE SET

Note: Retail Packaged Part

$97.99

$

In Stock, Qty 7

0

23

MTD 490-110-M143

Genuine Factory Parts 54" BLADE SET

Note: Retail Packaged Part

$97.99

$

In Stock, only 3 left!

0

24

MTD 747-05608

DECK SPRING HOOK
(Superseded to 747-05608A)

$3.99

$

In Stock, Qty 20+

0

25

MTD 748-05037B

SHOULDER SPACER

$5.99

$

In Stock, Qty 20+

0

26

MTD 954-05025A

V-BELT B SEC x 139 LG

$93.99

$

Usually ships in 3-6 days

0

26

MTD 490-501-C064

Cub Cadet 54" DECK DRIVE BELT

Note: Retail Packaged Part

$93.99

$

In Stock, only 4 left!

0

26

MTD 490-501-M064

Genuine Factory Parts 54" DECK BELT

Note: Retail Packaged Part

$

$

Not available

27

MTD 756-05034A

IDLER PULLEY 4.50" DIA

$48.99

$

In Stock, Qty 20+

0

28

MTD 783E08309B

IDLER PIVOT BRACKET

$44.99

$

In Stock, Qty 17

0

29

MTD 783-08389

IDLER PULLEY CAP

$6.49

$

In Stock, Qty 20+
