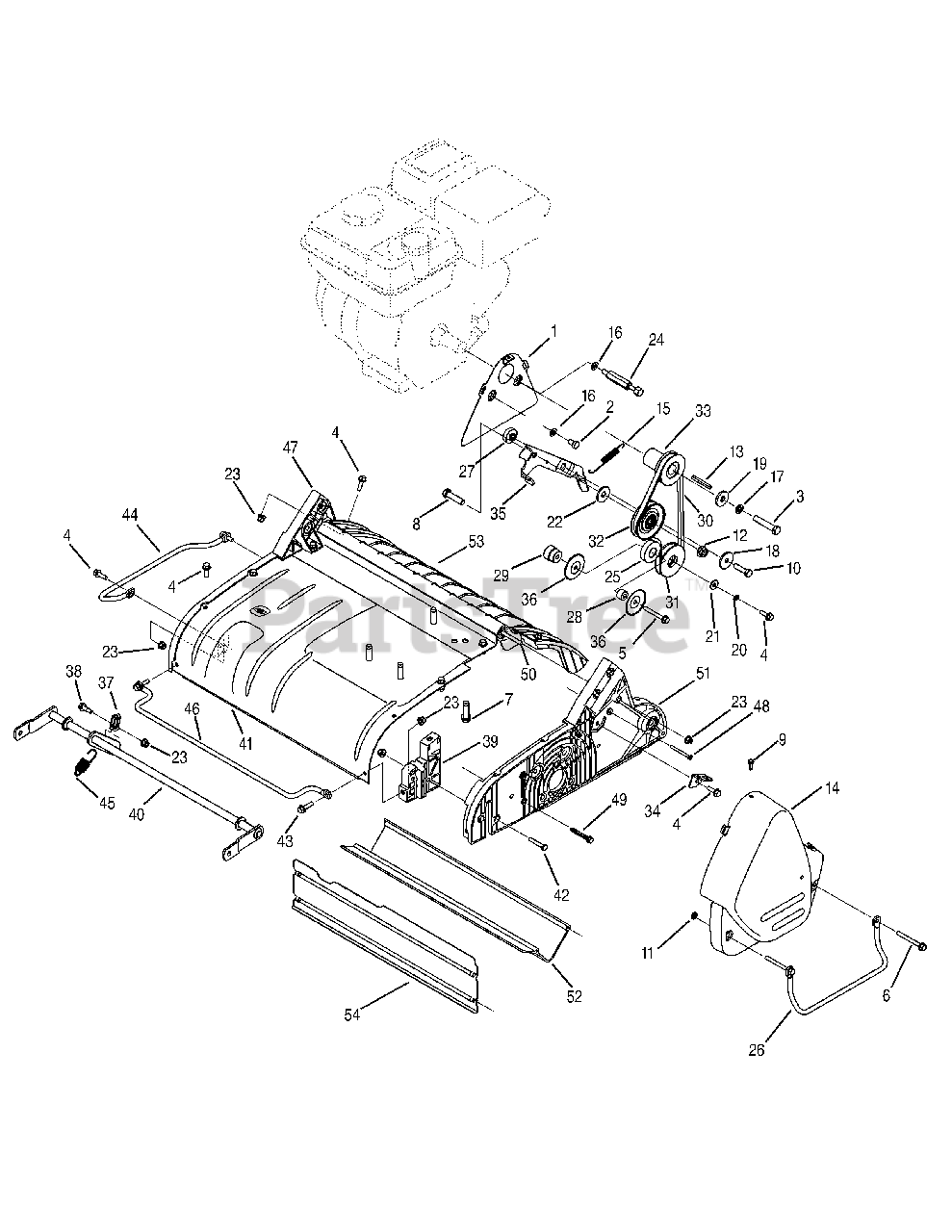

247.282820 (16CG5AMQ099) - Craftsman Lawn Dethatcher (2009) (Sears) > Parts Diagrams (5) > Frame Assembly

  • Title
681-04035-0637

1

Pulley Guard Assembly

Part# 681-04035-0637

OEM Warranty Repair Part for MTD

Not available

710-0107

2

Hex Screw, 5/16 - 24

Part# 710-0107

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.53

710-0151

3

Hex Screw, 3/8 - 24

Part# 710-0151

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.26

710-04189

4

Screw, M6 - 1 x 20.0

Part# 710-04189

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.52

710-04192

5

Screw, M6 - 1

Part# 710-04192

OEM Warranty Repair Part for MTD

Not available

710-04866

6

Screw, M6 - 1

Part# 710-04866

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.02

710-0502A

7

Sems Screw, 3/8 - 16

Part# 710-0502A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.58

710-0520

8

Hex Screw, 3/8 - 16

Part# 710-0520

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-1237

9

Screw, .625

Part# 710-1237

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

710-1683

10

Hex Screw, M8 - 1.25

Part# 710-1683

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.40

912-0298

11

Jam Nut, 1/4 - 20

Part# 912-0298

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.32

712-04065

12

Flange Lock Nut, 3/8 - 16

Part# 712-04065

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

914-04029

13

Square Key, 3/16 x 1.75

Part# 914-04029

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.47

731-05123

14

Pulley Cover

Part# 731-05123

OEM Warranty Repair Part for MTD

Not available

732-04224

15

External Spring

Part# 732-04224

OEM Warranty Repair Part for MTD

Not available

936-0119

16

Lock Washer, 5/16

Part# 936-0119

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.41

936-0169

17

Lock Washer, 3/8

Part# 936-0169

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.64

736-0343

18

Flat Washer, .330 x 1.25 x .120

Part# 736-0343

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

736-04005

19

Flat Washer, .395 x 1.12 x .14

Part# 736-04005

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.32

736-0648

20

Lock Washer

Part# 736-0648

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.71

736-0685

21

Flat Washer, 6.4 ID

Part# 736-0685

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.53

736-0702

22

Flat Washer, 10.5 ID

Part# 736-0702

OEM Warranty Repair Part for MTD

Not available

712-0713

23

Flange Lock Nut

Part# 712-0713

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.37

738-04114A

24

Belt Retainer Screw

Part# 738-04114A

OEM Warranty Repair Part for MTD

Not available

941-0124

25

Ball Bearing

Part# 941-0124 (Superseded to 941-0600)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $18.53

747-05100

26

Bumper Side

Part# 747-05100

OEM Warranty Repair Part for MTD

Not available

750-04233A

27

Idler Spacer

Part# 750-04233A

OEM Warranty Repair Part for MTD

Not available

750-04391

28

Bearing Spacer, 6.6 x 16.7 x 11.6

Part# 750-04391

OEM Warranty Repair Part for MTD

Not available

750-04394

29

Idler Spacer, 6.5 x 22.3 x 23

Part# 750-04394

OEM Warranty Repair Part for MTD

Not available

954-04028

30

V Belt

Part# 954-04028

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $30.77

756-04112A

31

Pulley

Part# 756-04112A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $29.42

756-04133

32

Pulley, 2 x 2.75 x .625

Part# 756-04133

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $23.86

756-04275

33

Pulley, .75 ID x 2.14

Part# 756-04275

OEM Warranty Repair Part for MTD

Not available

781-04053

34

Cable Bracket Mount

Part# 781-04053

OEM Warranty Repair Part for MTD

Not available

781-04089

35

Idler Arm

Part# 781-04089

OEM Warranty Repair Part for MTD

Not available

781-04096

36

Washer Bearing

Part# 781-04096

OEM Warranty Repair Part for MTD

Not available

781-04064

37

Cable Retainer Bracket

Part# 781-04064

OEM Warranty Repair Part for MTD

Not available

738-04079

38

Shoulder Spacer, 7.13 x 11.50

Part# 738-04079

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.76

681-04014A

39

Wheel Cradle Bracket Assembly

Part# 681-04014A

OEM Warranty Repair Part for MTD

Not available

981-04105

40

Height adjustment Bracket Assembly

Part# 981-04105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $43.60

781-04263-0721

41

Frame

Part# 781-04263-0721 (Superseded to 781-04263-4044)

OEM Warranty Repair Part for MTD

Not available

710-04197

42

Screw, M6-1 x 35.0

Part# 710-04197

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.23

710-04865

43

Screw, M6 - 1 x 25.0

Part# 710-04865

OEM Warranty Repair Part for MTD

Not available

747-05098-0637

44

Right Hand Bumper Side

Part# 747-05098-0637

OEM Warranty Repair Part for MTD

Not available

732-04518

45

External Spring, 17.6mm x 54.0mm

Part# 732-04518

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.23

747-05097-0637

46

Front Bumper

Part# 747-05097-0637

OEM Warranty Repair Part for MTD

Not available

681-04162

47

Right Hand Frame Assembly

Part# 681-04162

OEM Warranty Repair Part for MTD

Not available

710-04384

48

Tap Screw

Part# 710-04384

OEM Warranty Repair Part for MTD

Not available

710-1026

49

Screw, 1/4 - 20

Part# 710-1026

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.76

711-04204A

50

Deflector Mounted Rod

Part# 711-04204A

OEM Warranty Repair Part for MTD

Not available

681-04161

51

Left Hand Frame Assembly

Part# 681-04161

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $70.37

731-05049

52

Rear Baffle

Part# 731-05049

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $23.94

731-06907

53

Deflector

Part# 731-06907

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $38.27

781-04051A-0637

54

Baffle

Part# 781-04051A-0637

OEM Warranty Repair Part for MTD

Not available
