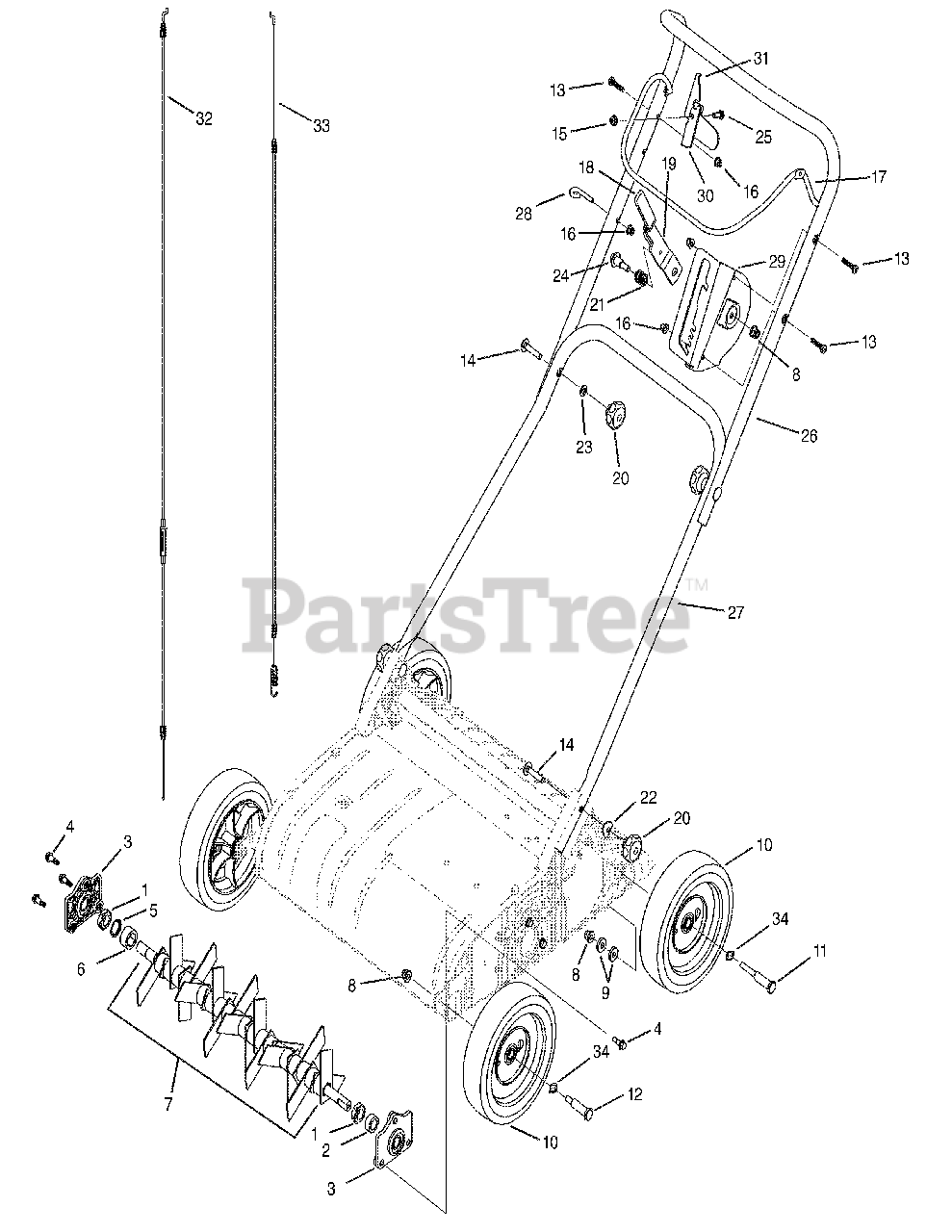

247.282820 (16CG5AMQ099) - Craftsman Lawn Dethatcher (2009) (Sears) > Parts Diagrams (5) > General Assembly

  • Title
712-04053A

1

Nut, M18 x 1.5

Part# 712-04053A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.39

750-04201

2

Bearing Spacer

Part# 750-04201

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.79

681-04018A

3

Bearing Assembly

Part# 681-04018A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $39.87

738-04079

4

Should Screw, 7.13 x 11.5

Part# 738-04079

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.71

736-04114

5

Safety Washer

Part# 736-04114

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.98

750-04196

6

Hex Spacer Shaft

Part# 750-04196

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.66

681-04164

7

Blade Assembly

Part# 681-04164 (Superseded to 981-04164)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $260.38

712-0714

8

Flange Lock Nut, M8 - 1.25

Part# 712-0714

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.74

736-04176

9

Flat Washer, 8.20 x 20.93 x 4.00

Part# 736-04176

OEM Warranty Repair Part for MTD

Not available

734-2004A

10

Wheel, 8 x 2.125

Part# 734-2004A (Superseded to 753-08093)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $29.74

738-04384

11

Shoulder Screw, 12.63 x 37.98

Part# 738-04384

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.94

738-04385

12

Shoulder Screw, 12.63 x 37.98

Part# 738-04385

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.48

710-04283

13

Spacer, M6 - 1.30

Part# 710-04283

OEM Warranty Repair Part for MTD

Not available

710-1700

14

Carrier Spacer, M8 - 1.25

Part# 710-1700

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.24

712-04064

15

Flange Lock Nut, 1/4 - 20

Part# 712-04064

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.67

712-0713

16

Flange Lock Nut, M6 - 1

Part# 712-0713

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

747-04861-0637

17

Bail

Part# 747-04861-0637

OEM Warranty Repair Part for MTD

Not available

720-0270A

18

Handle Grip

Part# 720-0270A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.47

781-04258-0637

19

Height Adjustment Lift Handle

Part# 781-04258-0637

OEM Warranty Repair Part for MTD

Not available

720-04041

20

Turning Knob, M8 x 1.25

Part# 720-04041

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.47

732-04190A

21

Compression Spacer, .087 x .715 x .688

Part# 732-04190A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.98

936-0451

22

Saddle Washer, .320 x .93 x .060

Part# 936-0451

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

736-0700

23

Flat Washer, 8.4 x 16 x 1.60

Part# 736-0700

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.95

738-04092

24

Shoulder Spacer, 11.87 x 15.5

Part# 738-04092

OEM Warranty Repair Part for MTD

Not available

938-0952A

25

Shoulder Bolt, .375 x .125

Part# 938-0952A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.57

749-04464-0637

26

Upper Handle

Part# 749-04464-0637

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $35.40

749-04117B-0637

27

Lower Handle

Part# 749-04117B-0637

OEM Warranty Repair Part for MTD

Not available

782-7627A

28

Eye Bolt

Part# 782-7627A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.79

781-04261-0637

29

Height Adjustment Bracket Mount

Part# 781-04261-0637

OEM Warranty Repair Part for MTD

Not available

781-04267-0637

30

Bail Interlock Bracket Mount

Part# 781-04267-0637

OEM Warranty Repair Part for MTD

Not available

781-04268-0637

31

Bail Interlock Pivot Bracket

Part# 781-04268-0637

OEM Warranty Repair Part for MTD

Not available

946-04444

32

Clutch Cable

Part# 946-04444

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $33.37

946-04443

33

Height Cable Adjustment

Part# 946-04443

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $26.81

936-0504

34

Wave Washer

Part# 936-0504

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89
