247.288842 (13AJ78SS099) - Craftsman Lawn Tractor (2012) (Sears) Transmission Drive Assembly Parts Diagram

Lawn Tractor

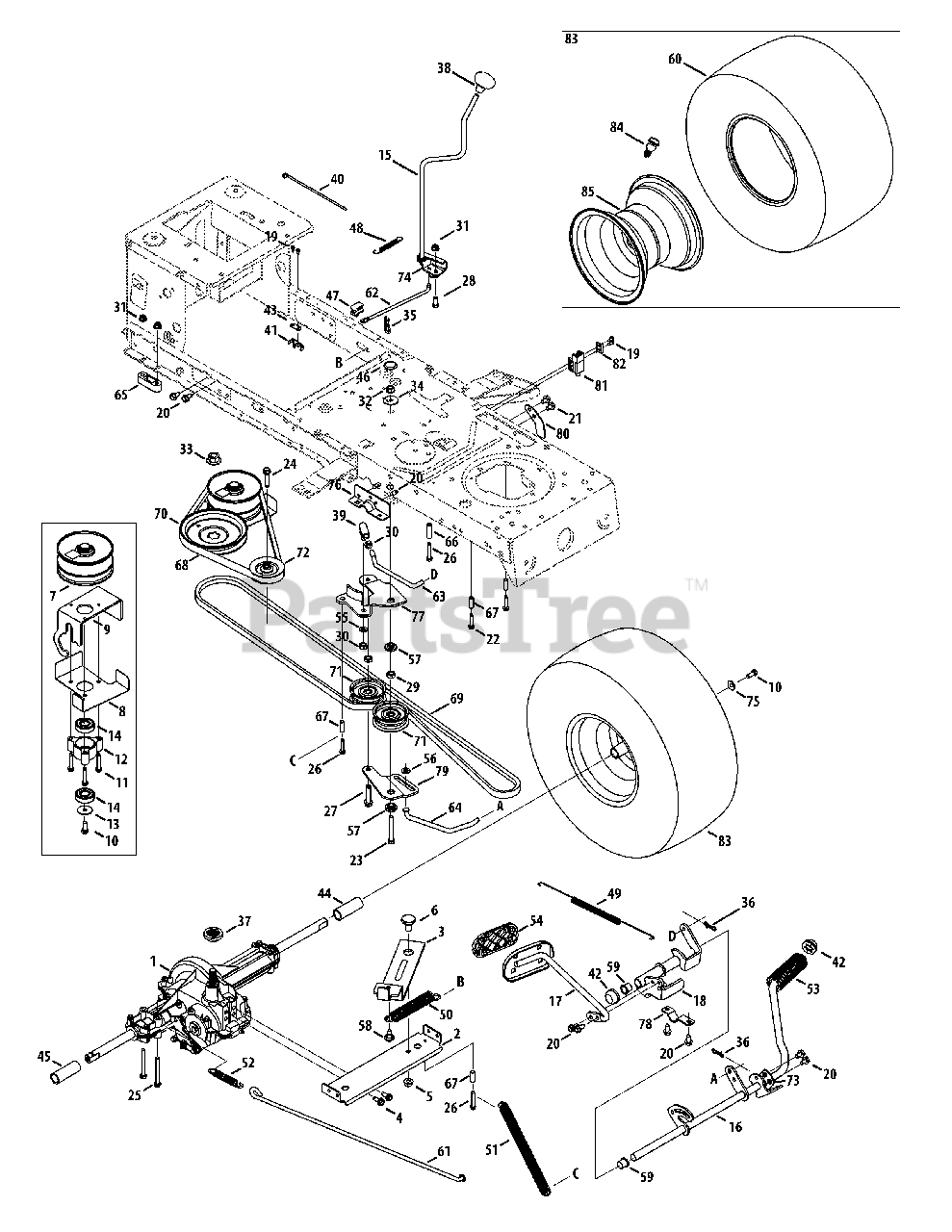

Transmission Drive Assembly Parts Diagram

  • Title

1

MTD 918-04566

Dr Assembly, Autodrive Lt-5
(Superseded to 918-04566B)

$668.99

$

In Stock, Qty 5

0

2

MTD 683-04606

Auto-drive Bracket Assembly
(Superseded to 783-06568A)

$21.99

$

Usually ships in 3-6 days

0

3

MTD 753-06662

Idler Bracket Assembly

$21.99

$

In Stock, only 4 left!

0

4

MTD 710-1260A

Tap Screw, 5/16-18 x 0.750

$3.49

$

In Stock, Qty 20+

0

5

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

6

MTD 738-0322A

Shoulder Screw, .625 x .217

$6.49

$

In Stock, Qty 5

0

7

MTD 956-04015A

Pulley Assembly, Var. Spd. 4.75 Od
(Superseded to 956-04015B)

$96.99

$

In Stock, Qty 20+

0

8

MTD 683-04522

Belt Keeper Assembly
(Superseded to 783-06227A)

$14.99

$

In Stock, only 1 left!

0

9

MTD 683-04612-0637

Variable Bracket Assembly
(Superseded to 783-06587A)

$32.99

$

Usually ships in 3-6 days

0

10

MTD 710-0627

Hex Screw 5/16-24 .750

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0778

Tap Screw, 1/4-20 1.500

$3.99

$

In Stock, Qty 15

0

12

MTD 718-04261

Bearing Cup

$18.99

$

In Stock, Qty 17

0

13

MTD 736-0362

Wash, Flat .330 X 1.25 X .06

$4.49

$

In Stock, Qty 20+

0

14

MTD 941-0600

Ball Bearing, 17 x 40 x 12.6203

$23.99

$

In Stock, Qty 20+

0

15

MTD 647-04266

Lvr Assembly, Shft
(Superseded to 647-04266A)

$24.99

$

In Stock, only 1 left!

0

16

MTD 647-04201A-0637

Ped Assembly, Drive, Autodrive
(Superseded to 947-04201B-0637)

$46.99

$

Usually ships in 3-6 days

0

17

MTD 647-04203A-0637

Ped Assembly, Cont, Autodrive

$19.99

$

In Stock, only 1 left!

0

18

MTD 683-04736

Bracket Assembly, Pedal, Autodrive

$37.99

$

In Stock, Qty 5

0

19

MTD 710-0227

Screw, Ab, #8-18, 0.500

$3.99

$

In Stock, Qty 20+

0

20

MTD 710-04484

Screw, Tt, 5/16-18, .750

$3.49

$

In Stock, Qty 20+

0

21

MTD 710-0604A

Screw, Tt, 5/16-18, 0.625

$3.99

$

In Stock, Qty 20+

0

22

MTD 710-0809

Screw, Tt, 1/4-20, 1.250

$6.49

$

In Stock, Qty 20+

0

23

MTD 710-0859

Hex Hd. Screw, 3/8-16, 2.50

$6.49

$

In Stock, Qty 20+

0

24

MTD 710-1007

Screw, Ttsems, 3/8-16, 1.500

$5.99

$

In Stock, Qty 5

0

25

MTD 710-1266

Hex Hd. Screw, 5/16-18, 3.50

$9.49

$

Usually ships in 3-6 days

0

26

MTD 710-1325

Screw, Tt, 1/4-20, 1.625,

$4.49

$

In Stock, only 4 left!

0

27

MTD 710-1858A

Screw, Tt, 3/8-16 x 1.75

$3.99

$

Usually ships in 3-6 days

0

28

MTD 710-3008

Hex Hd. Screw, 5/16-18, .75

$3.99

$

In Stock, Qty 20+

0

29

MTD 912-0240

Nut, Jam, 7/16-20

$3.99

$

In Stock, Qty 20+

0

30

MTD 712-0241

Nut, Hex, 3/8-24

$4.49

$

In Stock, Qty 20+

0

31

MTD 712-04063

Nut, Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

32

MTD 912-3000

Nut, Flange Lock Nut, 3/8-16
(Superseded to 712-3000)

$3.99

$

In Stock, Qty 20+

0

33

MTD 712-0700

Nut, Flg, 9/16-18

$10.99

$

In Stock, Qty 17

0

34

MTD 736-3040

Wash, Flat, .406 x 1.920 x .060

$5.99

$

In Stock, Qty 20+

0

35

MTD 914-0209

Pin, Cotter Int- .125 Dia

$3.49

$

In Stock, only 1 left!

0

36

MTD 714-04040

Pin, Cot, Bow-Tie 72

$1.49

$

In Stock, Qty 20+

0

37

MTD 718-04407

Hub, Pulley, 5/8 Spline

$11.99

$

In Stock, Qty 12

0

38

MTD 720-04028

Knob, Shft

$10.99

$

In Stock, Qty 10

0

39

MTD 923-3018

Ball, Joint

$15.99

$

In Stock, Qty 20+

0

40

MTD 725-0157

Cable, Tie, 3/16 X .05 X 7.4

$3.49

$

In Stock, only 4 left!

0

41

MTD 725-1644

Switch, Spring, Short

$8.99

$

In Stock, only 2 left!

0

42

MTD 726-0214

Cap, Push 5/8

$9.99

$

In Stock, Qty 20+

0

43

MTD 926-0320

Plate, Insulator Nut

$6.49

$

In Stock, Qty 10

0

44

MTD 731-04602

Sleeve, .758 X .821 X 3.3125

$5.99

$

In Stock, only 1 left!

0

45

MTD 731-04604

Sleeve, .758 X .821 X 2.4375

$6.49

$

Usually ships in 3-6 days

0

46

MTD 731-06330

Plug, Deck Hole, 7/8

$4.49

$

In Stock, only 1 left!

0

47

MTD 731-06894

Shift Plate Bearing

$5.99

$

In Stock, Qty 9

0

48

MTD 732-04488

Spring, Ext, .38 Od X 3.25 Lg

$5.99

$

In Stock, Qty 20+

0

49

MTD 732-04612

Spring, Extn, .70 Dia X 12.00 Lg

$14.99

$

In Stock, Qty 14

0

50

MTD 732-04616B

Spring, Extn, .97 Od X 6.18 Lg

$13.99

$

In Stock, Qty 20+

0

51

MTD 732-04764

Spring, Extn, .56 X 12.05 x .068
(Superseded to 753-08301)

$16.99

$

In Stock, Qty 17

0

52

MTD 732-0716D

Spring, Extn, .59 Od X 4.00 Lg

$12.99

$

In Stock, Qty 20+

0

53

MTD 735-0239

Pad, Foot, 4.0 Long
(Superseded to 735-0239A)

$11.99

$

In Stock, Qty 8

0

54

MTD 735-04272

Pad, Cont

$7.49

$

Usually ships in 3-6 days

0

55

MTD 936-0169

Wash, Lock, 3/8, Regular Duty
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

56

MTD 936-0185

Wash, Flat, .375 X .738 X .063
(Superseded to 736-0185)

$3.49

$

In Stock, Qty 15

0

57

MTD 738-0372B

Spacer, Shoulder, 1.00 X .38 X .38

$8.99

$

In Stock, Qty 20+

0

58

MTD 738-04091A

Screw, Shoulder, .43x.29, Tt, 5/16-18

$3.99

$

In Stock, Qty 20+

0

59

MTD 741-0495

Bearing, Flg, .630 Idx .695 Od X .60

$4.49

$

In Stock, Qty 12

0

60

MTD 734-1730-0901

Tire, 20 x 8 x 8 Sq. Sh.

$92.99

$

In Stock, Qty 8

0

61

MTD 747-05188

Rod, Brake, Lt-5 Trans

$11.99

$

In Stock, only 1 left!

0

62

MTD 747-05243

Rod, Shift, Lt-5 Stretch 46"

$10.99

$

In Stock, only 3 left!

0

63

MTD 747-05596

Rod, Adj, Idlr, 3/8

$12.99

$

Usually ships in 3-6 days

0

64

MTD 747-05415

Rod, Trans, Footpedal Bypass

$13.99

$

Usually ships in 3-6 days

0

65

MTD 948-0334

Spacer, T-Axle .68

$9.99

$

In Stock, only 1 left!

0

66

MTD 750-04456

Spacer, .260 X .372 X 1.420 Lg

$6.99

$

In Stock, Qty 20+

0

67

MTD 750-0566A

Spacer, .260 X .375 X 1.030 Lg

$9.49

$

In Stock, Qty 5

0

68

MTD 954-04208

Belt, V Typ, 5l X 40.9 Lg Poly
(Superseded to 954-04208A)

$45.99

$

In Stock, Qty 20+

0

69

MTD 954-0467A

Belt, V Typ, 5l, 90.80, Poly

$50.99

$

In Stock, Qty 20+

0

70

MTD 956-04002

Pulley, Idlr, Flat 7.25 Od

$25.99

$

In Stock, Qty 20+

0

71

MTD 756-04224

Pulley, Idlr, Flat 2.75 Od

$24.99

$

In Stock, Qty 20+

0

72

MTD 756-04325

Pulley, Idlr, V-Type X 3.06

$22.99

$

In Stock, Qty 20+

0

73

MTD 783-04536B-0637

Bracket, Ped, Support Lt-5

$6.49

$

Usually ships in 3-6 days

0

74

MTD 783-04595A

Bracket, Shft, Adj

$9.99

$

In Stock, only 4 left!

0

75

MTD 736-0242

Bell Washer, .340 x .872 x .060

$3.99

$

In Stock, Qty 20+

0

76

MTD 783-06562-0637

Bracket, Ped, Frame Rh
(Superseded to 783-06562A-0637)

$4.49

$

Usually ships in 3-6 days

0

77

MTD 783-06592A

Bracket, Idlr, Dbl Autodrive
(Superseded to 783-06592B)

$15.99

$

Usually ships in 3-6 days

0

78

MTD 783-06641A

Bracket, Supt, Pedal Stap

$7.99

$

Usually ships in 3-6 days

0

79

MTD 783-06769

Bracket, Idlr, Center Dbl

$9.49

$

In Stock, only 1 left!

0

80

MTD 783-06807-0637

Pedal Stop Plate
(Superseded to 783-06807A-0637)

$4.49

$

Usually ships in 3-6 days

0

81

MTD 725-04363

Interlock Switch

$14.99

$

In Stock, Qty 20+

0

82

MTD 17962

Switch Plate

$4.99

$

In Stock, Qty 5

0

83

MTD 634-0104-0961

Wheel Assembly, 20 x 8 x 8 Sq. Sh.

$155.99

$

Usually ships in 3-6 days

0

84

MTD 934-0255

Valve Stem

$3.99

$

In Stock, Qty 20+

0

85

MTD 634-04369-4042

Rim Assembly

$153.99

$

Usually ships in 3-6 days

0

MTD 725-04567G

Wiring Harness
(Superseded to 925-04567K)

Note: (Not Shown)

$123.99

$

In Stock, only 2 left!

0
