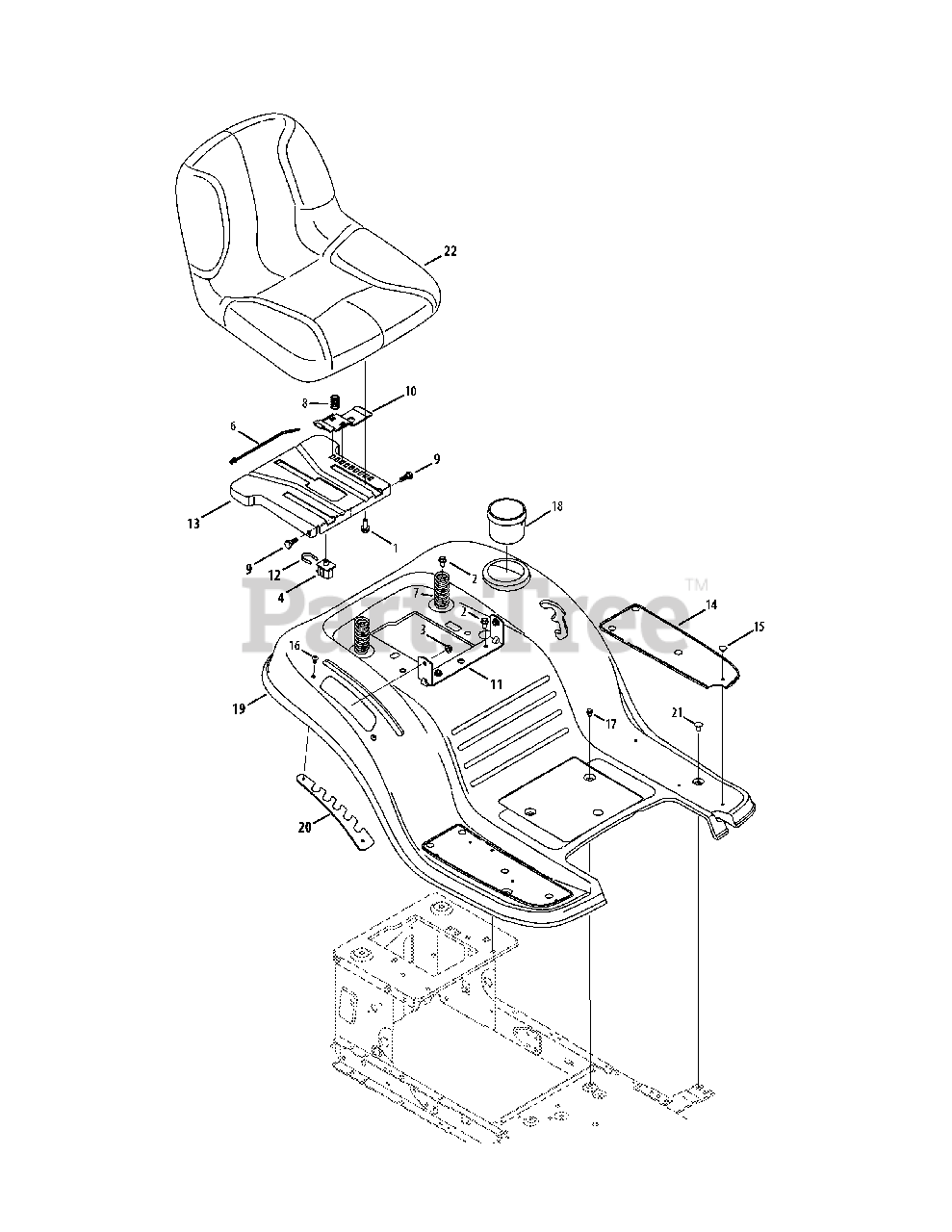

247.288851 (13AL78ST099) - Craftsman Lawn Tractor (2011) (Sears) Seat & Fender Parts Diagram

Lawn Tractor

Seat & Fender Parts Diagram

  • Title

1

MTD 710-04482

Hex Flange Bolt, 3/8-16 x .875

Note: Seat stop bolt, one used

$4.99

$

In Stock, Qty 20+

0

2

MTD 710-04484

Screw, Hd. Tapp, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

MTD 925-05013

Seat Safety Switch

$33.99

$

In Stock, Qty 20+

0

6

MTD 926-0154

Push Mount Cable Tie

$6.99

$

Usually ships in 3-6 days

0

7

MTD 732-04035

Spring, Compress., 1.28 x 3.125

$10.99

$

In Stock, Qty 5

0

8

MTD 732-04563

Spring, Compress., .68 x 1.065 x .055

$5.99

$

In Stock, Qty 20+

0

9

MTD 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

10

MTD 783-06050

Seat Adjustment Lever

$10.99

$

In Stock, only 2 left!

0

11

MTD 783-06088-0637

Seat Pivot Bracket
(Superseded to 783-06088A-0637)

$22.99

$

In Stock, only 4 left!

0

12

MTD 783-06448

Switch Retainer Clip

$6.49

$

In Stock, only 2 left!

0

13

MTD 783-06840

Seat Mounting Bracket

Variations

783-06840-0637

MTD 783-06840-0637

BRACKET-MOUNT SEAT - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

14

MTD 735-04047

Rubber Foot Pad, LH

$20.99

$

In Stock, only 2 left!

0

14

MTD 735-04048

Rubber Foot Pad, RH

$20.99

$

In Stock, only 3 left!

0

15

MTD 726-3046

Ratchet Clip, .250

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-05070

Tap Screw, 1/4-20 x .5
(Superseded to 710-05070A)

$7.49

$

In Stock, only 2 left!

0

17

MTD 710-0599

Screw Pan Torx Head, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

18

MTD 731-04591A

Cup Holder

$16.99

$

In Stock, only 2 left!

0

19

MTD 783-04587D-0691

Fender
(Superseded to 783-04587E-0691)

$446.99

$

Usually ships in 3-6 days

0

20

MTD 783-04843-0637

Lift Adjuster Bracket

$39.99

$

Usually ships in 3-6 days

0

21

MTD 710-0134

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

22

MTD 757-04145

Seat
(Superseded to 757-05236)

$283.99

$

Usually ships in 3-6 days

0

MTD 725-05277

Seat Jumper Harness

Note: (not shown)

$36.99

$

Usually ships in 3-6 days

0
