247.289330 (17AK9TKR099) - Craftsman Revolution Zero-Turn Mower (2009) (Sears) Engine Mounting & Connections Parts Diagram

Revolution Zero-Turn Mower

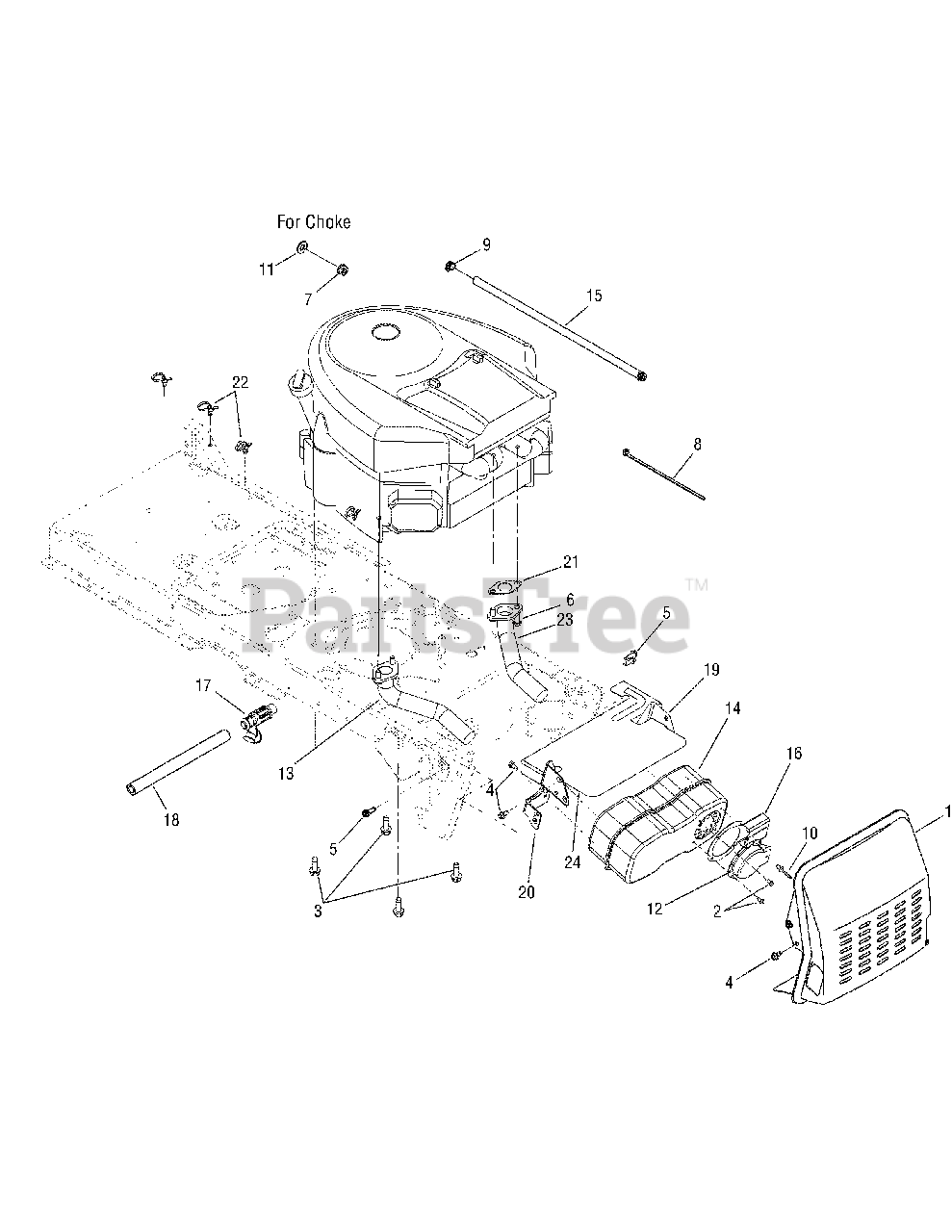

Engine Mounting & Connections Parts Diagram

  • Title

1

MTD 683-04256-0637

Shield, Muffler

$58.99

$

Usually ships in 3-6 days

0

2

MTD 710-0227

Screw, Hex Wash Hd. Tapp, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04683

Screw, Hex Sems Tapp, 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 9

0

4

MTD 710-0599

Screw, Hex Wash Hd. Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0642

Screw, Hd. Tapp, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-3008

Screw, Hex Cap, 5/16-18 x .75 Gr5

$4.49

$

In Stock, Qty 20+

0

7

MTD 912-3005

Nut, Hex Flange Lock, 3/8-16 Gr5
(Superseded to 712-3005)

$6.99

$

Usually ships in 3-6 days

0

8

MTD 725-0157

Tie, Cable

$3.99

$

In Stock, only 4 left!

0

9

MTD 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

10

MTD 728-04000

Rivet, Pop, .188 x .3

$6.99

$

In Stock, Qty 9

0

11

MTD 936-0300

Washer, Flat, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

12

MTD 751-0564B

Deflector, Muffler

$13.99

$

In Stock, Qty 20+

0

13

MTD 751-10004

Pipe Exhaust, RH

$

$

Not available

14

MTD 751-10161

Muffler, Dual Inlet
(Superseded to 951-10161)

$86.99

$

In Stock, only 4 left!

0

15

MTD 751-10349-54

Hose, Fuel ; Low Permeation, 51 inches

$53.99

$

Usually ships in 3-6 days

0

16

MTD 751-10353

Deflector, Muffler
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 17

0

17

MTD 951-10517A

Valve, Oil Drain

$24.99

$

In Stock, Qty 20+

0

18

MTD 751-3141-14

Hose, Oil Drain Extension

$11.99

$

In Stock, Qty 20+

0

19

MTD 783-04870-0637

Bracket, Muffler LH

$

$

Not available

20

MTD 783-04872-0637

Bracket, Muffler RH

$

$

Not available

21

MTD 721-0460

Gasket, Exhaust
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

22

MTD 926-0154

Tie, Push Mount

$6.49

$

Usually ships in 3-6 days

0

23

MTD 751-10005

Pipe, Exhaust, LH

$

$

Not available

24

MTD 783-04783A

Shld., Heat, Twin

$13.99

$

In Stock, only 1 left!

0
