247.289800 (13AR91PS099) - Craftsman PYT9000 Yard Tractor (2010) (Sears) Hood & Dash Assembly Parts Diagram

PYT9000 Yard Tractor

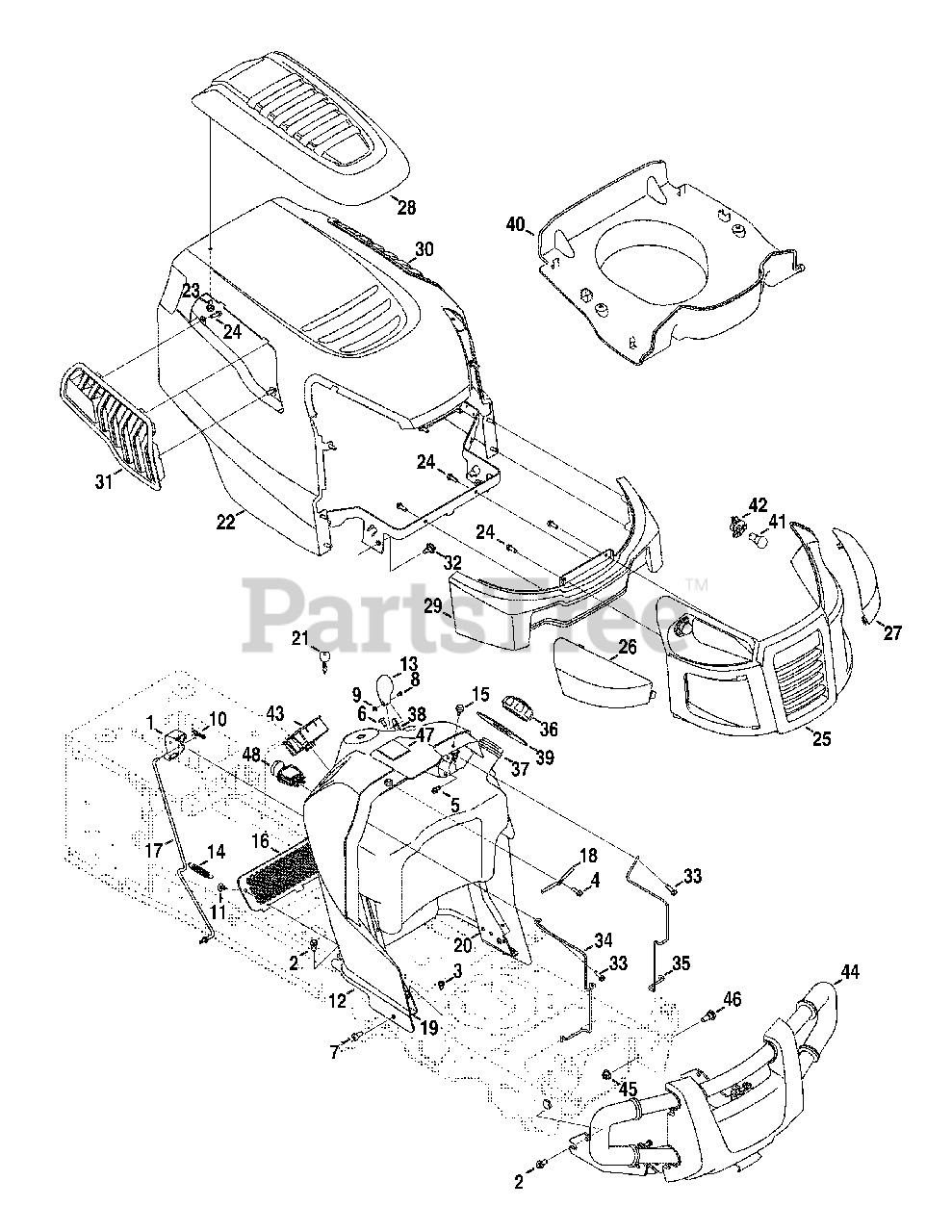

Hood & Dash Assembly Parts Diagram

  • Title

1

MTD 631-04353P

Dash Lever
(Superseded to 631-04353A)

$21.99

$

Usually ships in 3-6 days

0

2

MTD 710-04484

Taptite Screw, Lock Washer, 5/16-18:.750

$3.49

$

In Stock, Qty 20+

0

3

MTD 710-0599

Taptite Screw, Lock Washer, 1/4-20:0.500

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0895

Hi-Lo Screw, Lock Washer, 1/4-15:0.750

$5.99

$

In Stock, Qty 20+

0

5

MTD 710-0896

Screw, Lock Washer, 1/4-14:0.625

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-1017

Screw, 1/4-14:0.625

$7.99

$

In Stock, Qty 20+

0

7

MTD 710-1611B

Taptite Screw, 5/16-18:0.750

$6.49

$

In Stock, only 2 left!

0

8

MTD 710-3217

Machine Screw, #8-32:0.375

$6.49

$

In Stock, Qty 10

0

9

MTD 712-0142

Hex Nut, #8-32:GRA

$4.49

$

In Stock, Qty 12

0

10

MTD 714-04040

Bow-tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

11

MTD 726-3046

Ratchet Clip:.250 DIA

$3.99

$

In Stock, Qty 20+

0

12

MTD 731-07456

Dash

$60.99

$

In Stock, only 1 left!

0

13

MTD 731-07550

Control Knob

$

$

Not available

14

MTD 732-04580

Extension Spring, .500 DIA X 2.733 LG

$5.99

$

In Stock, only 1 left!

0

15

MTD 735-0271A

Bumper

$8.99

$

In Stock, Qty 20+

0

16

MTD 735-04076

Accessory Net

$15.99

$

Usually ships in 3-6 days

0

17

MTD 747-05280

Control Rod Latch

$11.99

$

Usually ships in 3-6 days

0

18

MTD 747-1196

Lever Rod

$14.99

$

Usually ships in 3-6 days

0

19

MTD 783-04285F-0637

RH Dash Support Plate

$

$

Not available

20

MTD 783-04323F-0637

LH Dash Support Plate

$34.99

$

Usually ships in 3-6 days

0

21

MTD 625-04124

Keys (set of 2)
(Superseded to 925-1745A)

$15.99

$

In Stock, Qty 20+

0

22

MTD 683-04618-0691

Hood Assembly
(Superseded to 683-04618A-0691)

$194.99

$

Usually ships in 3-6 days

0

23

MTD 710-04187

Hi-lo Screw, Lock Washer, 1/4-15:0.50
(Superseded to 710-04187A)

$6.49

$

In Stock, Qty 10

0

24

MTD 710-05108

Screw, Lock Washer, 1/4 DIA:.750

$3.49

$

In Stock, Qty 20+

0

25

MTD 931-07457

Grill

$

$

Not available

26

MTD 731-07458

RH Lens

$9.49

$

In Stock, Qty 5

0

27

MTD 731-07459

LH Lens

$9.49

$

In Stock, only 3 left!

0

28

MTD 931-07461

Hood Scoop

$37.99

$

Usually ships in 3-6 days

0

29

MTD 731-07467

Lower Grill

$38.99

$

Usually ships in 3-6 days

0

30

MTD 731-07711

LH Hood Scoop
(Superseded to 731-07711A)

$14.99

$

In Stock, only 1 left!

0

31

MTD 731-07712

RH Hood Scoop
(Superseded to 731-07712A)

$14.99

$

Usually ships in 3-6 days

0

32

MTD 738-04091A

Shoulder Screw, .43X.29:TT:5/16-18

$3.99

$

In Stock, Qty 20+

0

33

MTD 710-0642

Taptite Screw, 1/4-20:0.750

$4.49

$

In Stock, Qty 20+

0

34

MTD 747-05049

RH Tank Support Rod

$9.49

$

Usually ships in 3-6 days

0

35

MTD 747-05050

LH Tank Support Rod

$

$

Not available

36

MTD 751-0603A

Fuel Cap
(Superseded to 751-0603B)

$21.99

$

In Stock, Qty 20+

0

37

MTD 951-10573

Fuel Tank, 2.75 Gallons

$199.99

$

Usually ships in 3-6 days

0

38

MTD 946-04556

Throttle/Choke Control

$36.99

$

In Stock, Qty 14

0

39

MTD 735-04170

Fuel Tank Gasket

$5.49

$

In Stock, only 4 left!

0

40

MTD 731-07495

P-Style Plen
(Superseded to 731-07495A)

$45.99

$

Usually ships in 3-6 days

0

41

MTD 925-0963

Miniature Lamp, 12V

$6.99

$

In Stock, Qty 20+

0

42

MTD 925-1649

Lamp Socket
(Superseded to 925-1649A)

$10.99

$

In Stock, Qty 20+

0

43

MTD 725-04992

Switch Key Module
(Superseded to 725-13425)

$89.99

$

In Stock, Qty 20+

0

44

MTD 689-00157

Guard Assembly

$

$

Not available

45

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

46

MTD 738-0143

Shoulder Bolt, .496 x .336:3/8-16

$3.99

$

In Stock, Qty 20+

0

47

MTD 925-04036C

Hour Meter
(Superseded to 925-06170B)

$65.99

$

Usually ships in 3-6 days

0

48

MTD 725-04258

PTO Switch
(Superseded to 925-04258A)

$52.99

$

In Stock, Qty 11

0
