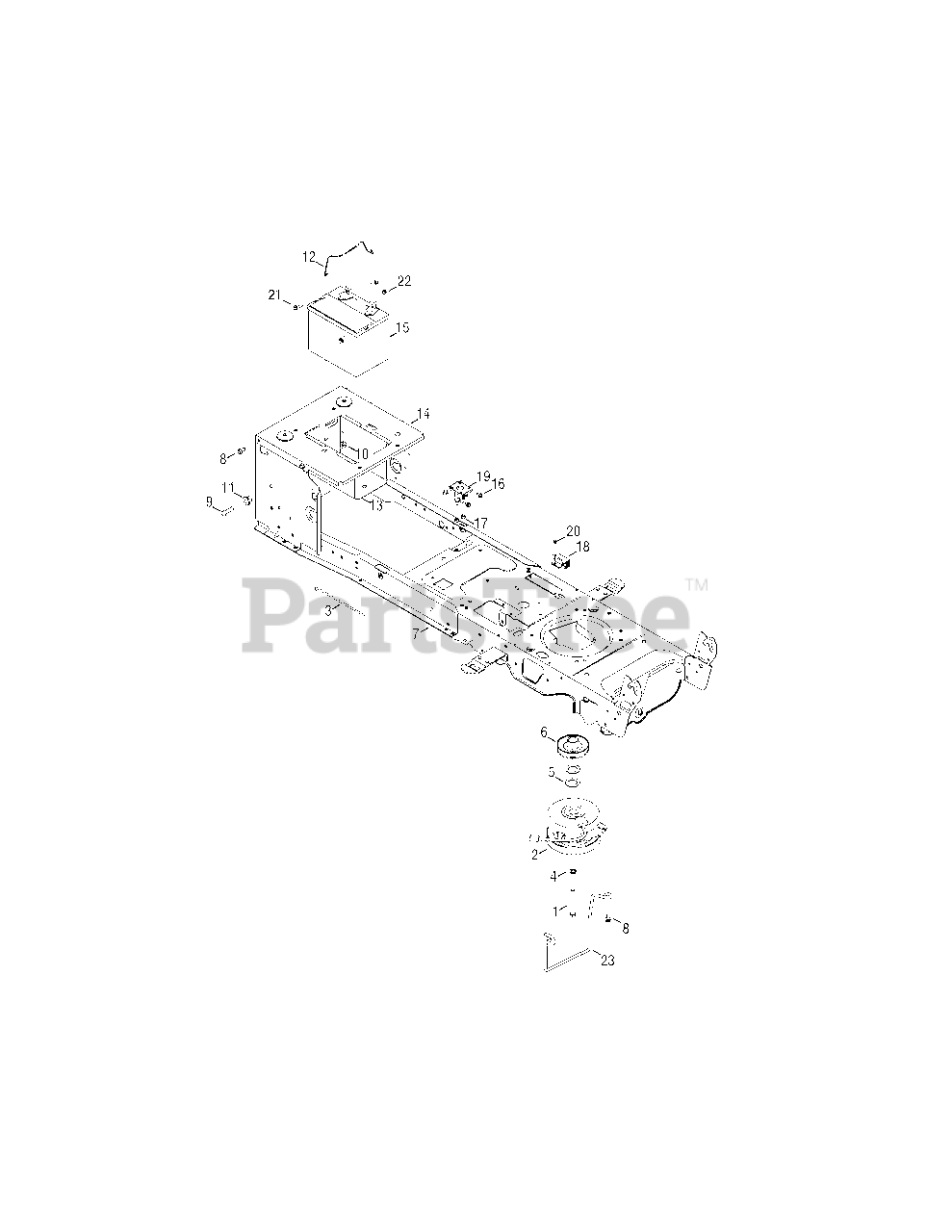

247.289841 (14AW94PK099) - Craftsman PGT9000 Garden Tractor (2011) (Sears) PTO & Battery Parts Diagram

PGT9000 Garden Tractor

PTO & Battery Parts Diagram

  • Title

1

MTD 710-04379A

Hex Head Screw, 7/16-20:3.50

$6.49

$

In Stock, Qty 20+

0

2

MTD 917-1774C

Electric PTO Clutch
(Superseded to 917-05001)

$668.99

$

In Stock, only 1 left!

0

3

MTD 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

4

MTD 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.99

$

In Stock, Qty 19

0

5

MTD 736-0277

Flat Washer, 1.031 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

6

MTD 756-0978B

Electric PTO Engine Pulley

$70.99

$

In Stock, Qty 20+

0

7

MTD 683-04469B-0691

Frame
(Superseded to 683-04469D-0637)

$495.99

$

Usually ships in 3-6 days

0

8

MTD 710-04484

Taptite Screw, Indented Washer, 5/16-18:.750

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-3005

Hex Head Screw, 3/8-16:1.25

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-04065

Flangelock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

11

MTD 738-04058

Shoulder Spacer, .38 x 1.0 x .70

$4.99

$

In Stock, only 2 left!

0

12

MTD 747-04121A

Battery Holder Rod

$6.99

$

In Stock, Qty 16

0

13

MTD 783-0349-0637

Battery Tray

$

$

Not available

14

MTD 783-06089-0637

Seat Frame Bracket

$57.99

$

In Stock, only 1 left!

0

15

N/A

Battery

Note: Order direct from Sears 725-05088

$

$

Not available

16

MTD 710-0653

Taptite Screw, 1/4-20:0.375

$4.99

$

In Stock, only 2 left!

0

17

MTD 712-04064

Flangelock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

18

MTD 725-04363

Interlock Switch

$16.99

$

In Stock, Qty 20+

0

19

MTD 725-04439

Solenoid, 12 V
(Superseded to 725-04439B)

$42.99

$

In Stock, Qty 20+

0

20

MTD 738-04237A

Shoulder Screw, #10-32:.500

$6.49

$

In Stock, only 2 left!

0

21

MTD 710-04666

Hex Head Flange, 1/4-20:.75

$7.49

$

In Stock, Qty 11

0

22

MTD 712-0271

Sems Nut, 1/4-20

$4.99

$

In Stock, Qty 17

0

23

MTD 747-05195

Belt Keeper Rod

$37.99

$

In Stock, only 2 left!

0

MTD 925-04093

Wire Harness Assembly

Note: Not shown

$239.99

$

Usually ships in 3-6 days

0
