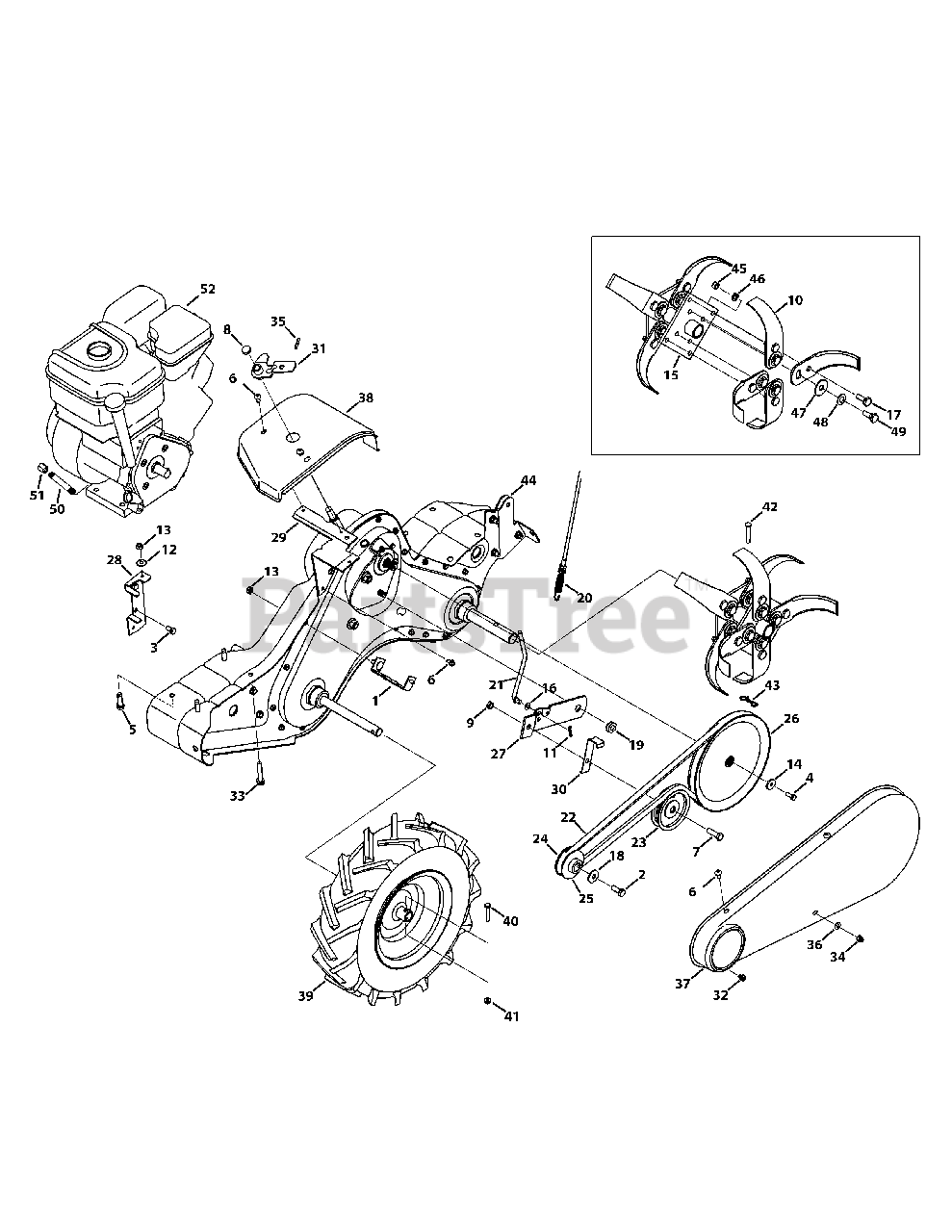

247.29933 (21AB454E299) - Craftsman Tiller (2012) (Sears) Tine & Drive Parts Diagram

Tiller

Tine & Drive Parts Diagram

  • Title

1

MTD 686-0111-0637

Belt Cover Bracket Assembly
(Superseded to 686-0111)

$41.99

$

Usually ships in 3-6 days

0

2

MTD 710-1039

Hex Screw, 3/8-24 x 1.00

$4.99

$

In Stock, Qty 16

0

3

MTD 710-0170

Hex Lock Screw, 5/16-24 x .625

$6.99

$

In Stock, Qty 11

0

4

MTD 710-0513

Hex Lock Screw, 1/4-28 x .625
(Superseded to 710-0513A)

$4.99

$

In Stock, only 2 left!

0

5

MTD 710-0502A

Screw, 3/8-16 x 1.250

$6.99

$

In Stock, Qty 11

0

6

MTD 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-3005

Hex Head Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

8

MTD 731-07556

Cap

$3.99

$

Usually ships in 3-6 days

0

9

MTD 712-0266A

Jam Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 15

0

10

MTD 742-0305A-0637

Articulating Tine

$21.99

$

In Stock, Qty 20+

0

11

MTD 914-0104

Cotter Pin, .072 DIA. x 1.13 LG
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 17

0

12

MTD 736-0242

Bell Washer, .340 x .872 x .060

$4.99

$

In Stock, Qty 20+

0

13

MTD 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.99

$

In Stock, Qty 20+

0

14

MTD 936-0176

Washer, Flat, .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, Qty 20+

0

15

MTD 784-0160-0637

Tine Adaptor Assembly

$122.99

$

In Stock, only 3 left!

0

15

MTD 984-0205A-0637

Tine Assembly

Note: (Includes:712-3054 (x16), 936-0169 (x16), 936-0208 (x8), 936-0253 (x8), 938-0688 (x8), 938-0689 (x8), 742-0305A-0637 (x8) & 784-0160-0637 (x1))

$228.99

$

In Stock, only 2 left!

0

16

MTD 936-0271

Washer, Spring, .317 x .625 x .020

$4.99

$

In Stock, Qty 9

0

17

MTD 938-0689

Shoulder Screw, 3/8-24 x 1/2 x .180

$9.99

$

In Stock, only 2 left!

0

18

MTD 936-0452

Washer, Bell, .396 x 1.140 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 6

0

19

MTD 738-0876A

Shoulder Nut, 7/16-20

$11.99

$

In Stock, Qty 9

0

20

MTD 946-1117

Clutch Cable

$71.99

$

In Stock, Qty 7

0

21

MTD 747-1159

Idler Pulley Rod

$27.99

$

Usually ships in 3-6 days

0

22

MTD 954-0434

Belt, 4L x 58.16 LG

$65.99

$

In Stock, Qty 17

0

23

MTD 756-0405

Flat Idler Pulley w/ Flanges, 3.75 O.D.

$76.99

$

In Stock, only 2 left!

0

24

MTD 756-0971

Engine Pulley, Inner Half

$15.99

$

In Stock, Qty 5

0

25

MTD 756-0972

Engine Pulley, Outer Half

$17.99

$

In Stock, only 2 left!

0

26

MTD 756-1162

Input Pulley, 4L x 8.594

$96.99

$

In Stock, only 2 left!

0

27

MTD 786-0064A

Idler Pulley Bracket

$41.99

$

In Stock, only 1 left!

0

28

MTD 786-0185A-0637

Belt Keeper Bracket

$17.99

$

Usually ships in 3-6 days

0

29

MTD 786-0187-0637

Shift Cover Bracket

$24.99

$

Usually ships in 3-6 days

0

30

MTD 786-0193-0637

Idler Belt Keeper

$10.99

$

Usually ships in 3-6 days

0

31

MTD 686-0109A

Shift Crank Assembly

$39.99

$

Usually ships in 3-6 days

0

32

MTD 710-0653

Screw, 1/4-20:0.375

$4.99

$

In Stock, only 2 left!

0

33

MTD 710-0805

Hex Head Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 20+

0

34

MTD 712-0392

Lock Nut ,Cap, 1/4-28

$7.49

$

In Stock, only 2 left!

0

35

MTD 715-0120

Spiral Pin, 3/16 x 1.00

$11.99

$

In Stock, Qty 5

0

36

MTD 936-3020

Washer, Flat, .271 x .630 x .065
(Superseded to 736-3020)

$

$

Not available

37

MTD 784-0158A-0691

Belt Cover
(Superseded to 784-0158B-0691)

$100.99

$

Usually ships in 3-6 days

0

38

MTD 784-0208D-0691

Shift Cover

$104.99

$

Usually ships in 3-6 days

0

39

MTD 934-04654

Wheel, 16 x 4.6 x 8

$172.99

$

In Stock, only 1 left!

0

40

MTD 710-05289

Hex Screw, 1/4-20 x 1.50

$5.99

$

In Stock, Qty 10

0

41

MTD 712-04064

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

42

MTD 911-0415

Clevis Pin, .375 x 1.75
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 7

0

43

MTD 714-04043

Cotter Pin, Bow Tie

$5.49

$

In Stock, Qty 20+

0

44

MTD 986-04074B

Complete Gear Case Assembly
(Superseded to 986-04074E)

$

$

Not available

45

MTD 712-3054

Hex Lock Nut, 3/8-24

$4.49

$

In Stock, Qty 19

0

46

MTD 936-0169

Washer, Lock, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

47

MTD 936-0208

Washer, Flat, .51 x 1.5 x 0.07
(Superseded to 736-0208)

$

$

Not available

48

MTD 936-0253

Washer, Bell, .525 x 1.00 x .050
(Superseded to 736-0253)

$

$

Not available

49

MTD 938-0688

Screw, Shoulder, 3/8-24 x 1/2 x .325

$10.99

$

In Stock, Qty 15

0

50

MTD 737-0298

Straight Pipe, 1/4 x 3.5

$13.99

$

Usually ships in 3-6 days

0

51

MTD 737-0132

End Cap, 1/4

$11.99

$

Usually ships in 3-6 days

0

52

MTD n/a

Engine - BS-12T102-0937-F8

Note: Purchase locally

$

$

Currently unavailable
