247.299341 (21A-34M8799) - Craftsman 340 Series Tiller (2016) Handle Assembly Parts Diagram

340 Series Tiller

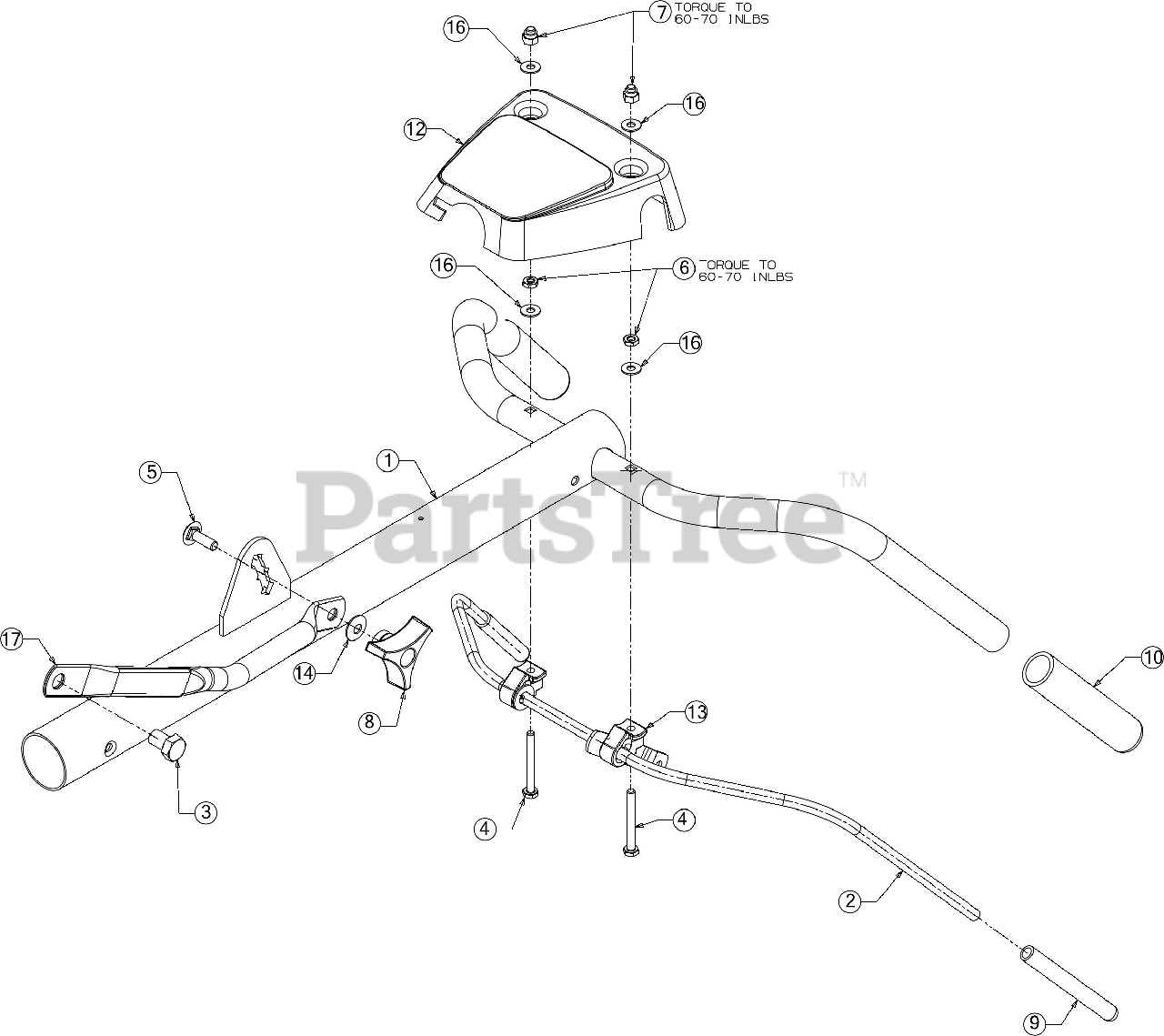

Handle Assembly Parts Diagram

  • Title

1

MTD 649-04040-4044

HANDLE ASSEMBLY

$138.99

$

Usually ships in 3-6 days

0

2

MTD 686-0083-0637

CLUTCH HANDLE ASSEMBLY

$53.99

$

Usually ships in 3-6 days

0

3

MTD 710-06053

BOLT 1/2-20 X .75 GR5

$6.99

$

Usually ships in 3-6 days

0

4

MTD 710-0641

SCREW 1/4-20 X 2.25 GR5

$4.49

$

In Stock, only 2 left!

0

5

MTD 710-1236

SCREW 5/16-18 X 1.00

$7.49

$

In Stock, only 3 left!

0

6

MTD 912-0298

HEX NUT

$6.99

$

Usually ships in 3-6 days

0

7

MTD 912-0442

HEX ACORN NUT
(Superseded to 712-0442)

$

$

Not available

8

MTD 720-0195

HANDLE KNOB

$16.99

$

Usually ships in 3-6 days

0

9

MTD 720-0269

CLUTCH GRIP

$5.49

$

In Stock, only 1 left!

0

10

MTD 720-0274

GRIP

$12.99

$

In Stock, only 2 left!

0

11

N/A

ADHESIVE

Note: (Not Shown)

$

$

Not available

12

MTD 731-06253B

HANDLE COVER W/O SWITCH HOLE

$24.99

$

Usually ships in 3-6 days

0

13

MTD 931-1645B

HANDLE CLUTCH HOLDER

$17.99

$

In Stock, Qty 8

0

14

MTD 736-0242

BELL WASHER .337 X.867 X .057

$4.99

$

In Stock, Qty 20+

0

15

MTD 936-0300

FLAT WASHER
(Superseded to 736-0300)

$4.99

$

In Stock, Qty 20+

0

16

MTD 936-3020

FLAT WASHER .271:.630:.065
(Superseded to 736-3020)

$

$

Not available

17

MTD 749-1401A-4044

HANDLE BRACE
(Superseded to 749-1401A-0691)

$53.99

$

Usually ships in 3-6 days

0
