247.333180 (59A50002799) - Craftsman Mulch Kit (2009) (Sears) General Assembly Parts Diagram

Mulch Kit

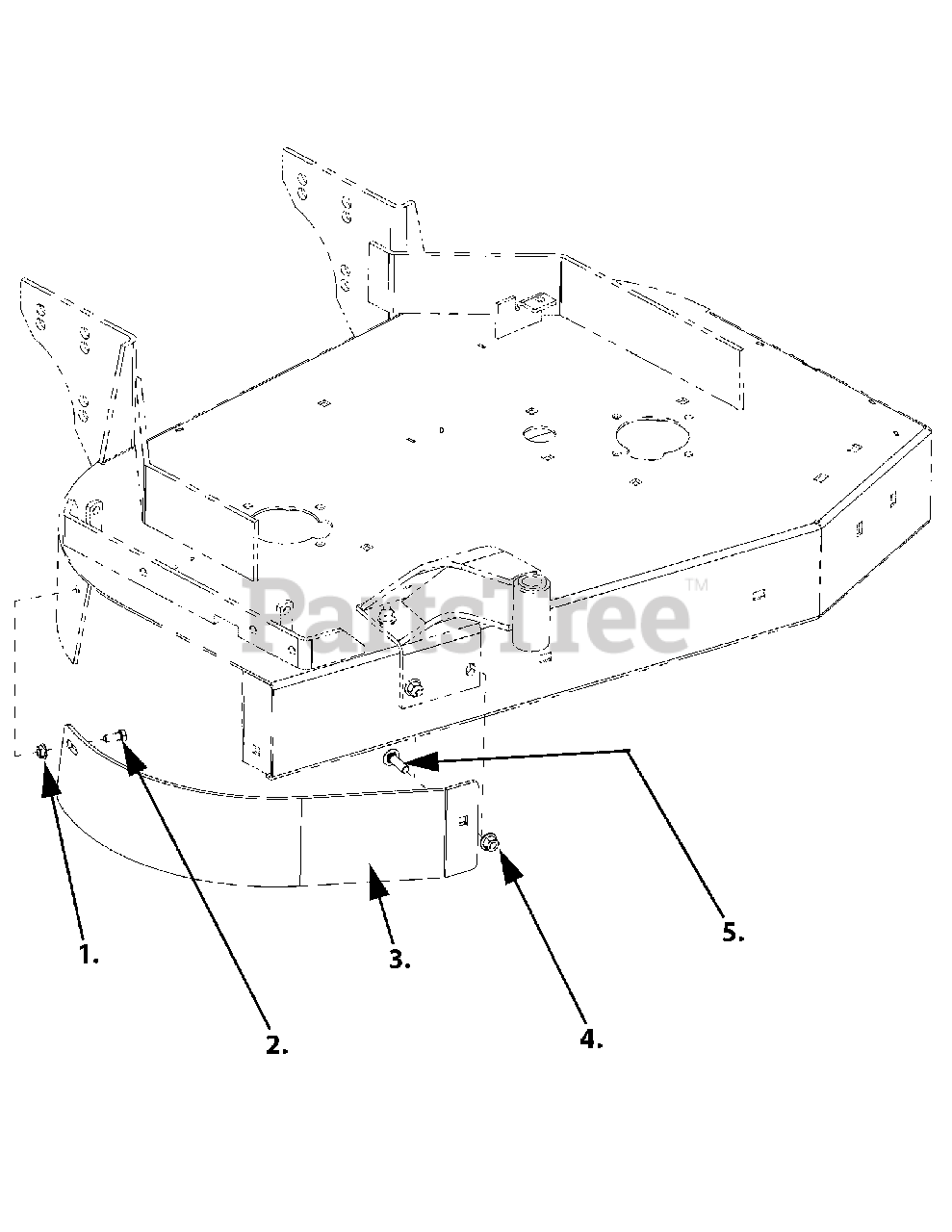

General Assembly Parts Diagram

  • Title

1

MTD 01000635

Hex Flange Lock Nut 5/16-18
(Superseded to 712-3004A)

$3.99

$

Usually ships in 3-6 days

0

2

MTD 00013406

Hex Head CapScrew 5/16-18
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

3

MTD 02005517

Mulch Baffle

$

$

Currently unavailable

4

MTD 00022560

Hex Flange Locknut 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

MTD 01002010

Carriage Bolt 3/8-16 x 1 1/4
(Superseded to 710-3034)

$3.99

$

In Stock, Qty 7

0
