247.370253 (18A-407-099) - Craftsman Walk-Behind Mower, Electric (1998) (Sears) Motor Parts Diagram

Walk-Behind Mower, Electric

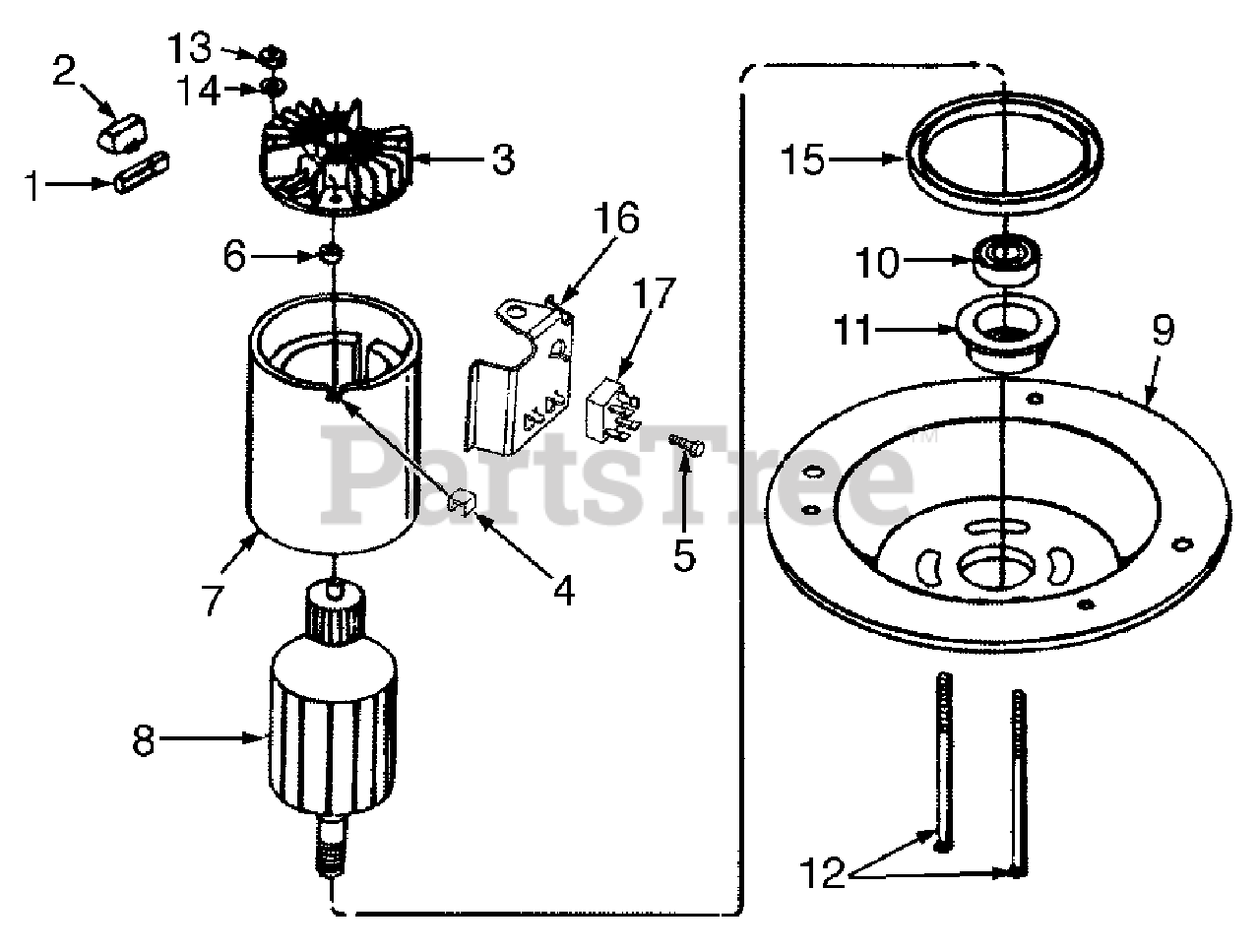

Motor Parts Diagram

  • Title

1

MTD 624-0031

Brush & Liner Assembly.

$

$

Not available

2

MTD 724-0200

Brush Holder Cap
(Superseded to 924-0200)

$

$

Not available

3

MTD 624-0070

End Shield Assembly. W/plug

Note: (Includes Ref. 1, 2 & 6)

$

$

Currently unavailable

4

MTD 721-0305

Insulator Wire (Output)

$

$

Currently unavailable

5

MTD 710-3009

Hex Tap Scr. #10-16 x .62" Lg.

$7.49

$

Usually ships in 3-6 days

0

6

MTD 741-0875

Needle Bearing

$

$

Not available

7

Magnet Housing Assembly

Note: (Not available for service)

$

$

Not available

8

MTD 624-0029

Armature Assembly

$

$

Currently unavailable

9

MTD 624-0062

Motor End Plate Assembly

Note: (Includes Ref. 10 & 11)

$

$

Currently unavailable

10

MTD 741-0124

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

11

MTD 748-0348

Bearing Adapter

$

$

Not available

12

MTD 710-1176

Carriage Bolt

$

$

Not available

13

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

14

MTD 736-3090

Fl. Washer .26" I.D. x .72"

$6.99

$

Usually ships in 3-6 days

0

15

MTD 721-0306

Housing Insulator

$

$

Not available

16

MTD 782-5016

Brkt. Rectifier/Heat Sink

$

$

Not available

17

MTD 725-1715

Rectifier
(Superseded to 925-1715)

$77.99

$

Usually ships in 3-6 days

0

?18

MTD 721-0382

Heat Sink Compound

Note: (not shown)

$

$

Currently unavailable
