247.370330 (12A-967K099) - Craftsman Walk-Behind Mower (1997) (Sears) Six-Speed Pulley Assembly Parts Diagram

Walk-Behind Mower

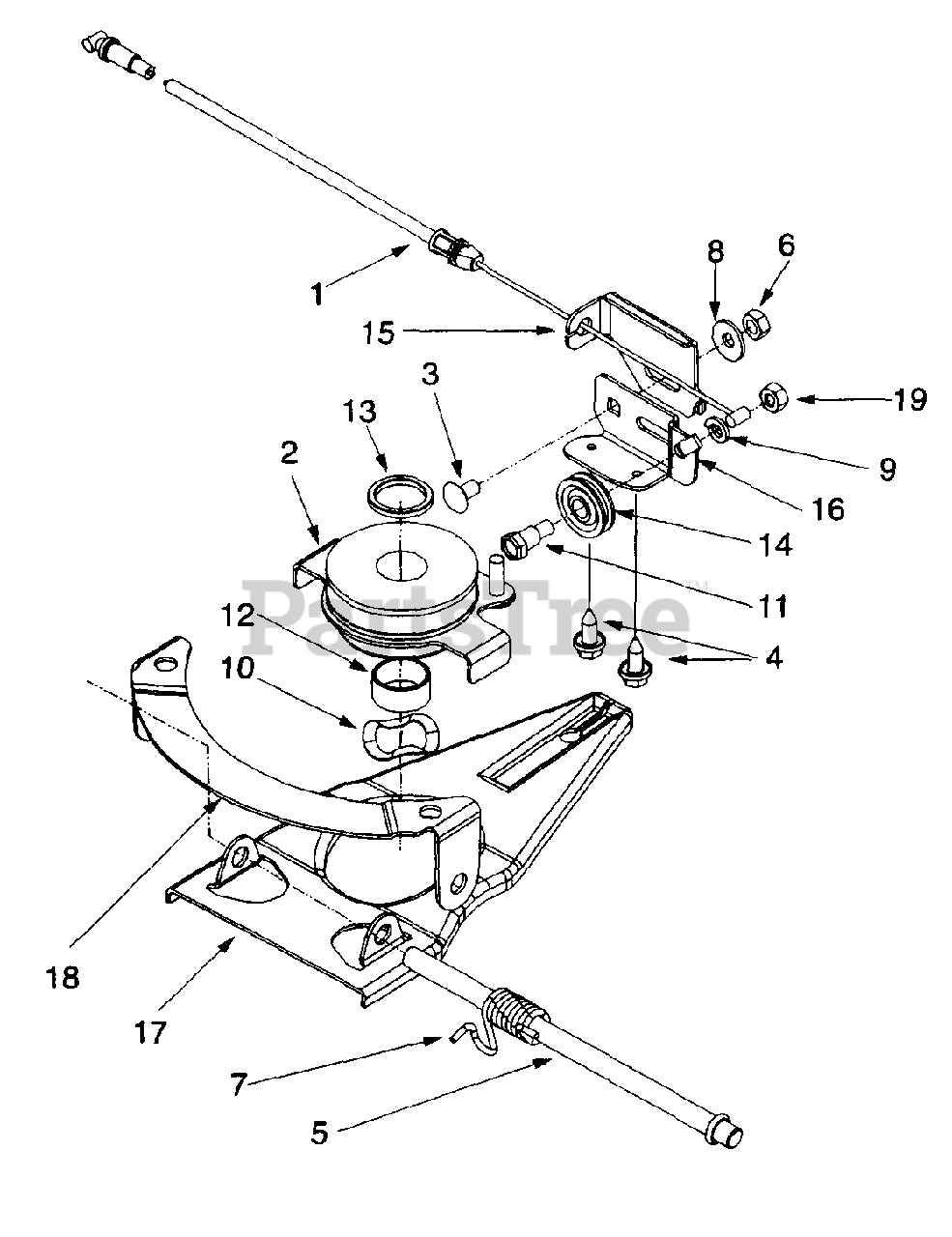

Six-Speed Pulley Assembly Parts Diagram

  • Title

1

MTD 746-0939

Six-Speed Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, only 4 left!

0

2

MTD 656-0613

Pulley Ass'y. Multi Speed
(Superseded to 956-0613A)

$72.99

$

In Stock, only 2 left!

0

3

MTD 710-0167

Carr. Scr. 1/4-20 x .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

4

MTD 710-0896

Scr. AB 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

5

MTD 711-1114

Pivot Shaft

$12.99

$

Usually ships in 3-6 days

0

6

MTD 712-0287

Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

7

MTD 732-0807

Torsion Spring
(Superseded to 932-0807)

$7.49

$

In Stock, only 1 left!

0

8

MTD 736-0270

Bell Washer .265 x.75 x.062

$3.99

$

In Stock, Qty 8

0

9

MTD 736-0329

Lock Washer 1/4 Reg. Duty
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

10

MTD 736-0526

Wave Washer 1.38 x .88 x .029

$6.99

$

Usually ships in 3-6 days

0

11

MTD 738-0924

Shld. Scr. .340 x .350 x 1/4-20
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 6

0

12

MTD 750-1070

Slev. Spacer .88 I.D. x 1 O.D. x .48
(Superseded to 950-1070)

$5.99

$

In Stock, Qty 11

0

13

MTD 750-1071

Slev. Spacer .88 I.D. x 1.13 O.D. x .12
(Superseded to 950-1071)

$4.49

$

In Stock, Qty 5

0

14

MTD 756-0625

Roller Cable

$9.49

$

In Stock, Qty 20+

0

15

MTD 782-7574

6-Spd. Cable Adj. Brkt.
(Superseded to 782-7574A-0637)

Variations

MTD 782-7574-0498

Cable Adjusting Bracket - OLD CUB YELLOW (0498)

$

$

Not available

MTD 782-7574-0637

Cable Adjusting Bracket - POWDER BLACK (0637)

$

$

Not available

MTD 782-7574-0665

Cable Adjusting Bracket - YARDMAN GREEN (0665)

$

$

Not available

$

$

16

MTD 782-7575

6-Spd. Cable Mtg. Brkt.
(Superseded to 782-7575-0637)

Variations

MTD 782-7575-0498

BRACKET-CABLE MTG - OLD CUB YELLOW (0498)

$

$

Not available

MTD 782-7575-0637

BRACKET-CABLE MTG - POWDER BLACK (0637)

$

$

Not available

MTD 782-7575-0665

BRACKET-CABLE MTG - YARDMAN GREEN (0665)

$

$

Not available

$

$

17

MTD 782-7596

6-Spd. Control Arm
(Superseded to 782-7596A)

Variations

MTD 782-7596-0637

ARM CONTROL: 6 SPD - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 782-7597

6-Spd. Pivot Brkt.

Variations

MTD 782-7597-0637

Pivot Bracket - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

19

MTD 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0
