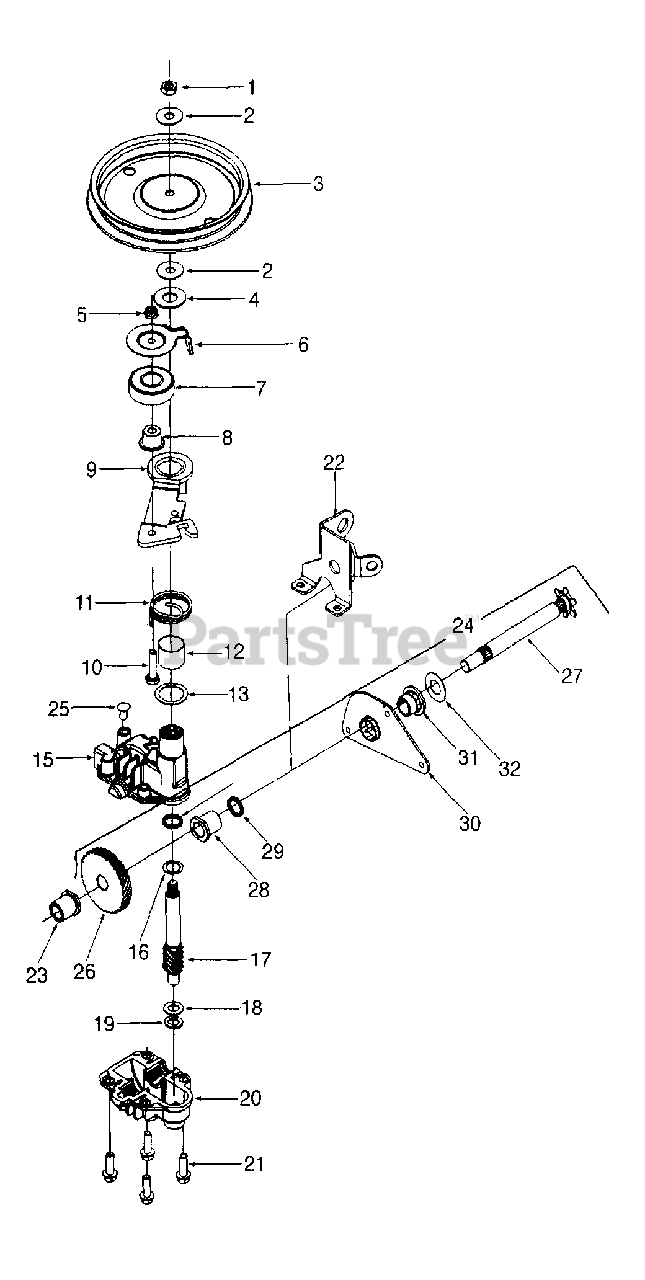

247.370330 (12A-967K099) - Craftsman Walk-Behind Mower (1997) (Sears) Transmission Parts Diagram

Walk-Behind Mower

Transmission Parts Diagram

  • Title

1

MTD 712-3025

Hex Jam Nut 5/16 - 24

$7.49

$

Usually ships in 3-6 days

0

2

MTD 736-0425

Bell Washer.325 x .930 x .045

$4.99

$

In Stock, Qty 14

0

3

MTD 756-0656

Pulley

$36.99

$

Usually ships in 3-6 days

0

4

MTD 736-3084

Flat Washer .510 x 1.10 x .060

$4.99

$

In Stock, Qty 20+

0

5

MTD 712-0896

Hex Lock Nut 1/4 - 28

$4.99

$

In Stock, Qty 6

0

6

MTD 782-7598

Belt Keeper

$15.99

$

In Stock, only 1 left!

0

7

MTD 741-0600

Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

8

MTD 750-1050

Flange Spacer

$5.49

$

Usually ships in 3-6 days

0

9

MTD 682-0027

Idler Bracket Assembly
(Superseded to 982-0027A)

$17.99

$

Usually ships in 3-6 days

0

10

MTD 710-0299

Hex. Cap Scr. 1/4-28 x 1.00 Gr. 5

$4.49

$

Usually ships in 3-6 days

0

11

MTD 732-0811

Torsion Spring
(Superseded to 932-0811)

$2.99

$

Usually ships in 3-6 days

0

12

MTD 741-0682

Bearing Sleeve
(Superseded to 741-0682A)

$11.99

$

In Stock, only 2 left!

0

13

MTD 736-0570

Flat Washer .855 x 1.250 x .030
(Superseded to 936-0570)

$5.99

$

Usually ships in 3-6 days

0

?14

MTD 721-0329

Oil Seal
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

15

MTD 618-0253

Upper Housing Assembly

$

$

Not available

16

MTD 736-0520

Flat Washer .504 x .700 x .030
(Superseded to 936-0520)

$5.99

$

Usually ships in 3-6 days

0

17

MTD 717-1468

Pinion Shaft 10T
(Superseded to 917-1468)

$

$

Not available

18

MTD 736-0314

Thrust Washer .382 I.D. x .684 O.D.

$6.99

$

Usually ships in 3-6 days

0

19

MTD 736-0569

Thrust Washer .388 x .625 x .062
(Superseded to 936-0569)

$

$

Not available

20

MTD 618-0252

Lower Housing Ass'y,
(Superseded to 918-0252)

$42.99

$

Usually ships in 3-6 days

0

21

MTD 710-0642

Hex Scr. TT 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

22

MTD 782-7601

Cable Bracket
(Superseded to 782-7601A-0637)

Variations

MTD 782-7601-0637

BRACKET. CABLE GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 741-0674

Flange Bearing
(Superseded to 941-0674)

$8.99

$

Usually ships in 3-6 days

0

24

MTD 611-0066

Shaft Assembly.
(Superseded to 911-0066)

$

$

Not available

25

MTD 721-0325

Plug

$4.49

$

Usually ships in 3-6 days

0

26

MTD 717-1469

Gear 347.

$63.99

$

Usually ships in 3-6 days

0

27

MTD 711-1168

Output Shaft 6T.

$31.99

$

Usually ships in 3-6 days

0

28

MTD 741-0673

Flange Bearing
(Superseded to 941-0673)

$6.49

$

In Stock, only 2 left!

0

29

MTD 721-0329

Oil Seal
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

30

MTD 782-7595

Pivot Bracket

$26.99

$

Usually ships in 3-6 days

0

31

MTD 741-0324

Flange Bearing
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 8

0

32

MTD 736-0369

Fl. Wash. .508 I.D. x 1 O.D. x .020

$4.49

$

In Stock, Qty 6

0
