247.370480 (18A-188-799) - Craftsman Walk-Behind Mower, Electric (2008) (Sears) General Assembly Parts Diagram

Walk-Behind Mower, Electric

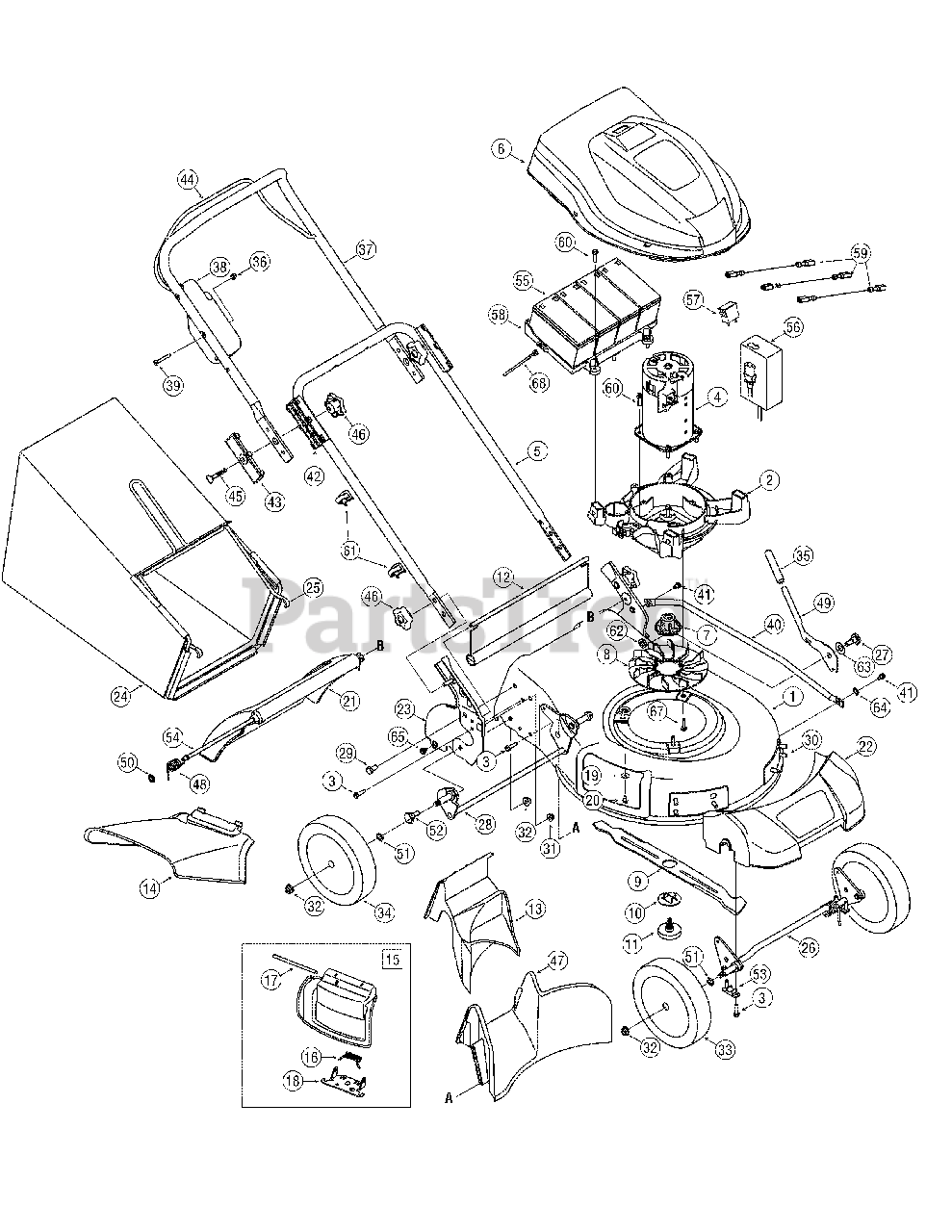

General Assembly Parts Diagram

  • Title

1

MTD 787-01649

19" Deck

Variations

MTD 787-01649-0638

SHELL-19" DECK - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01649-0640

SHELL-19" DECK - CO-OP GREEN (0640)

$

$

Not available

MTD 787-01649-0691

SHELL-19" DECK - BLACK JACK (0691)

$

$

Not available

MTD 787-01649-0709

SHELL-19" DECK - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 787-01649-0721

SHELL-19" DECK - SEARS RED (0721)

$

$

Not available

MTD 787-01649-4021

SHELL-19" DECK - CUB YELLOW 2 (4021)

$

$

Not available

MTD 787-01649-4044

SHELL-19" DECK - CRAFTSMAN RED (4044)

$

$

Not available

$

$

2

MTD 731-05727

Motor Bracket

$49.99

$

Usually ships in 3-6 days

0

3

MTD 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 8

0

4

MTD 724-04025

Motor, 48V
(Superseded to 724-04025P)

$460.99

$

Usually ships in 3-6 days

0

5

MTD 749-04312

Lower Handle

Variations

MTD 749-04312-0637

Lower Handle, 19" - POWDER BLACK (0637)

$53.99

$

In Stock, only 4 left!

0

$53.99

$

In Stock, only 4 left!

0

6

MTD 731-05753

Battery Shroud

$

$

Not available

7

MTD 731-2095A

Blade Hub
(Superseded to 631-04228)

$25.99

$

Usually ships in 3-6 days

0

8

MTD 731-05832

Electric Fan

$13.99

$

Usually ships in 3-6 days

0

9

MTD 742-04152

Mulching Blade
(Superseded to 942-04152)

$36.99

$

Usually ships in 3-6 days

0

10

MTD 782-7051

Blade Locking Plate

$12.99

$

In Stock, only 1 left!

0

11

MTD 624-0078

Blade Bolt Assembly

$30.99

$

In Stock, only 1 left!

0

12

MTD 731-05639A

Trail Shield

$21.99

$

In Stock, only 4 left!

0

13

MTD 731-05746

Rear Mulch Plug

$

$

Not available

14

MTD 731-04177

Side Discharge Chute

$20.99

$

In Stock, Qty 12

0

15

MTD 687-02055

Mulch Plug
(Superseded to 987-02055)

Note: (Incl. 16-18)

$29.99

$

In Stock, Qty 8

0

16

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$8.49

$

In Stock, Qty 20+

0

17

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

18

MTD 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 1 left!

0

19

MTD 736-0270

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-0599

Screw

$4.49

$

In Stock, Qty 20+

0

21

MTD 731-05686

Rear Door
(Superseded to 931-05686)

$43.99

$

Usually ships in 3-6 days

0

22

MTD 731-05634

Front Cover
(Superseded to 931-05634)

$71.99

$

Usually ships in 3-6 days

0

23

MTD 687-02325

Handle Bracket - RH

Variations

MTD 687-02325-0637

BRACKET ASM-HNDL RH - POWDER BLACK (0637)

$33.99

$

In Stock, only 1 left!

0

$28.99

$

Usually ships in 3-6 days

0

23

MTD 687-02324

Handle Bracket - LH

Variations

MTD 687-02324-0637

BRACKET ASM-HNDL LH - POWDER BLACK (0637)

$37.99

$

In Stock, only 1 left!

0

$37.99

$

Usually ships in 3-6 days

0

24

MTD 664-04076

Grass Bag
(Superseded to 964-04076)

$

$

Not available

25

MTD 647-04082

Grass Bag Frame
(Superseded to 647-04082-0637)

Variations

MTD 647-04082-0637

Grass Catcher Bag Frame, Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

26

MTD 687-02225

Front Bracket Assembly
(Superseded to 687-02225-0637)

Variations

MTD 687-02225-0637

Front Axle Assembly, Black - POWDER BLACK (0637)

$55.99

$

In Stock, only 1 left!

0

$55.99

$

In Stock, only 1 left!

0

27

MTD 738-0148

Screw, Shoulder, .50 x .66
(Superseded to 938-0148)

$17.99

$

Usually ships in 3-6 days

0

28

MTD 687-02228

Rear Bracket Assembly
(Superseded to 687-02228-0637)

Variations

MTD 687-02228-0637

AXLE ASM-REAR - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

29

MTD 710-3025

Hhcs, 5/16-18 x .625

$4.49

$

In Stock, Qty 7

0

30

MTD 710-1242

Screw, 5/16-14 x .750

$4.99

$

In Stock, Qty 15

0

31

MTD 712-04063

Nut, Flange Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

32

MTD 712-04065

Nut, Flange Lock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

33

MTD 734-04176

Front Wheel
(Superseded to 734-04176A)

$49.99

$

Usually ships in 3-6 days

0

34

MTD 734-2004A

Rear Wheel
(Superseded to 753-08093)

$48.99

$

In Stock, only 4 left!

0

35

MTD 720-0230

Foam Grip

$7.99

$

In Stock, only 2 left!

0

36

MTD 712-0324

Nut, Hex Lock, 1/4-20

$3.99

$

In Stock, only 4 left!

0

37

MTD 749-04353

Upper Handle

$

$

Not available

38

MTD 625-04037

Motor/Blade Control
(Superseded to 925-04037A)

$

$

Not available

39

MTD 710-04213

Screw, Flat, 1/4-20 x 1.75
(Superseded to 753-04430)

$4.49

$

Usually ships in 3-6 days

0

40

MTD 749-04356

Cross Bracket
(Superseded to 749-04356-0637)

Variations

MTD 749-04356-0637

BRACKET-CROSS:ELEC - POWDER BLACK (0637)

$

$

Not available

$

$

41

MTD 738-04278

Screw, Shldr., 1/4-20 x .50

$7.49

$

Usually ships in 3-6 days

0

42

MTD 731-05186

Lower Handle Insulator

$10.99

$

Usually ships in 3-6 days

0

43

MTD 731-05178

Upper Handle Insulator

$4.49

$

Usually ships in 3-6 days

0

44

MTD 747-04663

Motor/Blade Control Handle
(Superseded to 747-04663A)

$22.99

$

Usually ships in 3-6 days

0

45

MTD 710-0572

Bolt Carriage, 5/16-18 x 2.50

$4.99

$

In Stock, Qty 8

0

46

MTD 720-04072

Star Knob
(Superseded to 720-04072A)

$7.49

$

In Stock, Qty 20+

0

47

MTD 731-05710

Rear Baffle
(Superseded to 731-05710A)

$33.99

$

Usually ships in 3-6 days

0

48

MTD 732-04264

Door Torsion Spring - RH

$10.99

$

In Stock, only 1 left!

0

48

MTD 732-04265

Door Torsion Spring - LH

$10.99

$

Usually ships in 3-6 days

0

49

MTD 732-04377

Spring Lever
(Superseded to 732-04377A)

$

$

Not available

50

MTD 726-0201

Nut, Speed

$7.49

$

In Stock, Qty 20+

0

51

MTD 736-0504

Washer, Wave, .510 x .750 x .017
(Superseded to 936-0504)

$4.99

$

In Stock, only 2 left!

0

52

MTD 738-0507B

Screw, Shoulder, .500 Dia. X .434

$4.99

$

In Stock, Qty 20+

0

53

MTD 741-0492A

Bushing, Block, .505 Dia. X .62

$6.99

$

In Stock, only 2 left!

0

54

MTD 747-04589

Rear Door Pivot Rod

$7.99

$

Usually ships in 3-6 days

0

55

MTD 725-04381

Battery, 12V
(Superseded to 925-04381A)

$386.99

$

Usually ships in 3-6 days

0

56

MTD 725-04387

Battery Charger
(Superseded to 725-04387A)

$200.99

$

Usually ships in 3-6 days

0

57

MTD 725-04438

Battery Level Indicator

$51.99

$

Usually ships in 3-6 days

0

58

MTD 731-05754

Battery Tray

$

$

Not available

59

MTD 725-04497

Battery Jumper
(Superseded to 725-04497A)

$

$

Not available

60

MTD 710-0895

Screw, 1/4-15 x .750

$6.99

$

In Stock, Qty 20+

0

61

MTD 731-2422

Cable Guide

$16.99

$

Usually ships in 3-6 days

0

62

MTD 731-05880

Spacer, .515 x 1.00 x .310 Lg.

$3.49

$

Usually ships in 3-6 days

0

63

MTD 736-0255

Washer, Bell, .510 x 1.14 x .040

$4.99

$

In Stock, only 3 left!

0

64

MTD 736-3012A

Washer, Wave, .390 x .825 x .016

$7.49

$

Usually ships in 3-6 days

0

65

MTD 731-0981A

Hubcap
(Superseded to 731-0981C)

$11.99

$

In Stock, Qty 6

0

66

MTD 710-1268

Screw, #10-16 x .375

$4.49

$

In Stock, Qty 20+

0

67

MTD 710-0726

Screw, 5/16-12 x .750

$4.49

$

In Stock, Qty 20+

0

68

MTD 726-0230

Cable Tie

$28.99

$

In Stock, only 1 left!

0
