247.374411 (12BVB25V799) - Craftsman Walk-Behind Mower (2017) Mulching Blade & Adapter Parts Diagram

Walk-Behind Mower

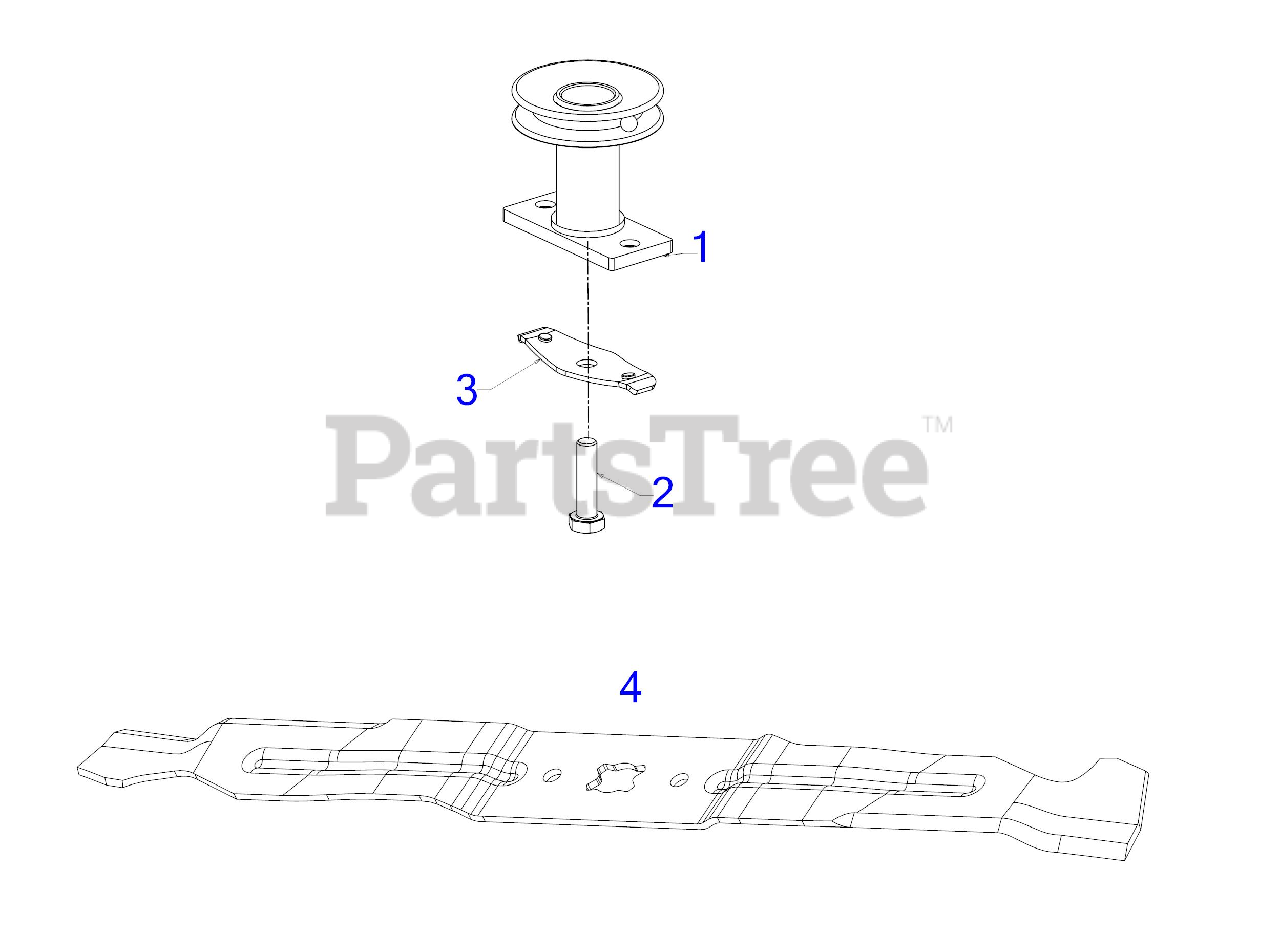

Mulching Blade & Adapter Parts Diagram

  • Title

1

MTD 687-02528

DRIVE PULLEY

$39.99

$

In Stock, Qty 20+

0

2

MTD 710-1044

SCREW 3/8-24 x 1.50 GR8

$3.99

$

In Stock, Qty 20+

0

3

MTD 736-0524B

BLADE BELL SUPPORT
(Superseded to 736-0524B-1)

$5.99

$

Usually ships in 3-6 days

0

4

MTD 942-05213

21" MULCHING BLADE
(Superseded to 742-05213-0637)

$30.99

$

In Stock, only 1 left!

0
